Miejsce pochodzenia:
Szwajcaria
Nazwa handlowa:
Endress+Hauser
Orzecznictwo:
CE
Numer modelu:

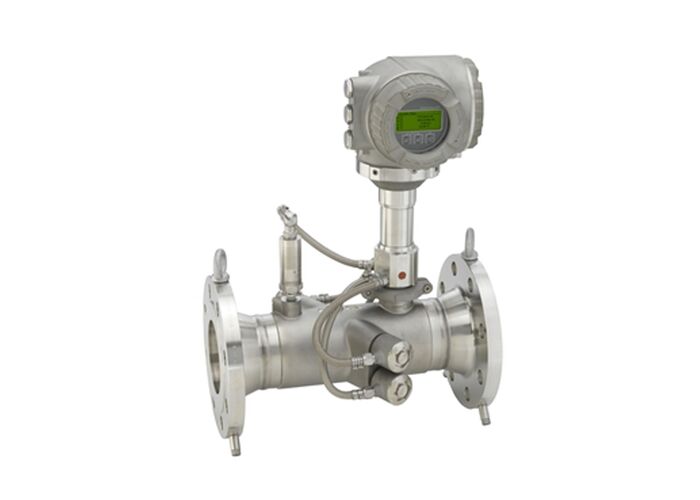

Proline Prosonic Flow G 300
| Measurement Type | Accuracy | Range |
|---|---|---|
| Volume Flow (Standard) | ±1.0% o.r. (3-40 m/s) ±2% o.r. (0.3-3 m/s) |
0.3 to 40 m/s |
| Volume Flow (Optional Calibration) | ±0.5% o.r. (3-40 m/s) ±1.0% o.r. (0.3-3 m/s) |
0.3 to 40 m/s |
| Sound Velocity | ±0.2% o.r. | - |
| Parameter | Range |
|---|---|
| Medium Temperature | -50 to 150°C (-58 to +302°F) -50 to 100°C (-58 to +212°F) with integrated pressure cell |
| Process Pressure | 0.7 to 101 bar a (10.15 to 1464.88 psi a) |
| Measuring Range (Gas) | 0.3 m/s to 40 m/s |
| Component | Material |
|---|---|
| Measuring Tube | 1.4408/1.4409 (CF3M) |
| Transducer | 1.4404 (316, 316L), Titan Grade 2 |
| Sensor Housing | Stainless Steel, 1.4404 (316/316L), 1.4408/1.4409 (CF3M) |
| Type | Specifications |
|---|---|
| Outputs | 3 outputs: 4-20 mA HART, 4-20 mA, Pulse/frequency/switch output, Double pulse output, Relay output |
| Inputs | Status input, 4-20 mA input |
| Digital Communication | HART, Modbus RS485 |
| Power Supply | 24V DC, 100 to 230 V AC |
