Miejsce pochodzenia:
Szwajcaria
Nazwa handlowa:
Endress+Hauser
Orzecznictwo:
CE
Numer modelu:

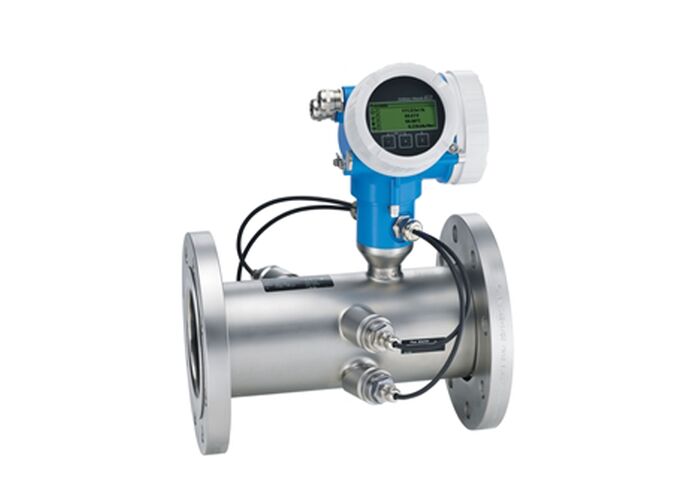

Proline Prosonic Flow B 200
| Parameter | Specification |
|---|---|
| Measuring Range (Standard) | 1 to 30 m/s (3.28 to 98.4 ft/s) |
| Measuring Range (Option) | 0.3 to 30 m/s (0.98 to 98.4 ft/s) |
| Medium Temperature Range | 0 to +80 °C (+32 to +176 °F) |
| Maximum Process Pressure | 11 bar a (159 psi a) |
| Process Pressure Range | 0.7 to 11 bar a (10.2 to 159 psi a) |
| Volume Flow Type | Accuracy |
|---|---|
| Standard Volume Flow | ±1.5% o.r. for 3 to 30 m/s (9.84 to 98.4 ft/s) ±3% o.r. for 1 to 3 m/s (3.28 to 9.84 ft/s) |
| Optional Volume Flow | ±0.1% o.f.s. for 0.3 to 1 m/s (0.98 to 3.28 ft/s) ±1.5% o.r. for 1 to 30 m/s (3.28 to 98.4 ft/s) |
| Parameter | Specification |
|---|---|
| Ambient Temperature (Carbon Steel) | -10 to +60 °C (+14 to +140 °F) |
| Ambient Temperature (Stainless Steel) | -40 to +60 °C (-40 to +140 °F) |
| Transmitter Housing Material | AlSi10Mg, coated; 1.4404 (316L) |
| Degree of Protection | IP66/67, type 4X enclosure |
| Component | Specification |
|---|---|
| Display/Operation | 4-line backlit display with touch control (operation from outside) |
| Outputs | 4-20 mA HART (passive), 4-20 mA (passive), Pulse/frequency/switch output (passive) |
| Inputs | Current input 4-20 mA (passive) |
| Digital Communication | HART |
| Power Supply | Multiple configurations: DC 12-35V, DC 12-30V, DC 9-32V depending on output type |
