Nazwa handlowa:
Honeywell
Numer modelu:
Seria G.K
| Characteristic | Parameter |
|---|---|

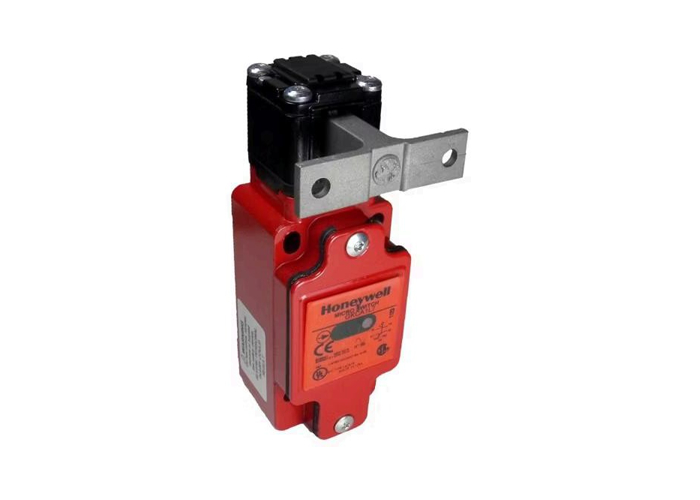

| Description | Dual entry key operated safety interlock switch |
| Certifications | CSA (C22.2 No.14. File 57323), UL (per UL508, File E37138), CE (per IEC 60947-1, IEC 60947-5-1) |
| Housing material | Epoxy coated die-cast zinc |
| Key (actuator) material | Stainless steel |
| Conduit/electrical connection | 0.5-14 NPT, 20 mm, PG 13,5 threaded conduit; 10-pin "mini" style connector |
| Contact/switch options* | 1NC/1NO; 2 NC; 2NC/2NO; 3NC/1NO; 4NC |
| Contact design | Double break, electrically separated |
| Contact material | Silver alloy (standard); gold-plated silver alloy (for low energy applications) |
| Utilization category | AC15, A300/A600**; DC13 Q300 |
| Rated operational voltage (Ue) | 240 Vac, 600 Vac, 250 Vdc |
| Rated operational current (Ie) | 3 A, 1.2 A, 0.27 A |
| Thermal current (Ith) | 10 A |
| Rated insulation voltage (Ui) | 300 V, 600 V |
| Rated impulse withstand voltage (Uimp) | 2500 V |
| Short circuit protective device (SCPD) | Class J fuse (10 A/600 V) |
| Conditional short-circuit current | 1000 A |
| Pollution degree | 3 |
| Environmental sealing | IP67; NEMA 1, 4, 12, & 13 |
| Operating temperature | -25°C to 85°C [-13°F to 185°F] |
| Shock | 50 G per IEC 60068-2-27 |
| Vibration | 10 G per IEC 60068-2-6 |
| MCTF (Mechanical life) | >1,000,000 cycles with single-sided confidence limit of 95% |
| MCTF (Electrical life) | >60,000 cycles |
| SIL Capability | Up to and including SIL3 (HFT1), IEC 61508-2:2010 |
| Proof test interval | 1 year |
| Optional LEDs*** | GLC Series with 1 LED pilot light (12 Vac/dc to 250 Vac/dc) GLD Series with 2 LED pilot lights (18 Vdc to 30 Vdc) |
