80GHz IP68 Radar Level Transmitter KWL801B for Accurate Liquid Detection - G Thread Water Resistant 100mA

Product Description:

The KWL801B-RS485 radar level sensor conforms to the national standard DB50/T 826-2017 for level meters. This sensor is designed with a fully sealed IP68 waterproofing to ensure its durability, making it suitable for a wide range of industrial applications.

The product comes with a maximum measurement range of up to 40 meters, with a minimal blind spot of less than 6 cms. It offers superior accuracy thanks to its higher frequency and broader bandwidth, which translates to more precise results for your level measurement needs.

In addition to its reliability and accuracy, the KWL801B-RS485 radar level sensor also comes with a fixed bracket for easy installation. You won't have to worry about finding a mounting solution for your sensor; simply attach it to the bracket and set it up in the desired location.

Features:

• Based on the self-developed CMOS millimeter-wave RF chip
• More compact RF architecture
• Higher signal-to-noise ratio
• Smaller dead zone
• 5GHz working bandwidth
• Higher measurement resolution and measurement accuracy
• Less influence by the interference in the installation environment
• More convenient of installation and
• Modern design of integrated flat antenna

Technical Specifications:

Wiring Instructions

Dimension:

Installation:

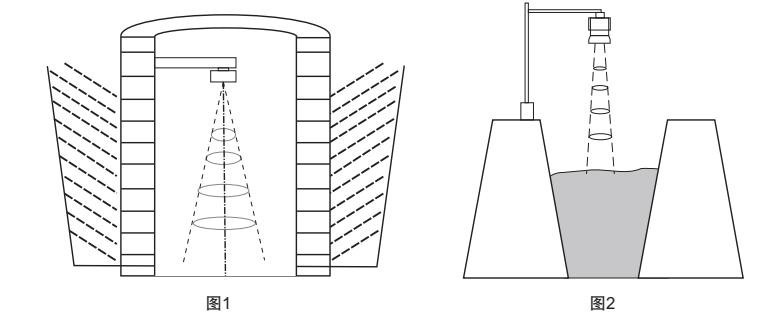

(1) Ensure that the sensor is perpendicular to the medium surface.

(2) Avoid the transmitting beam from irradiating interference objects and generating false echoes.

See the following for typical working conditions:

Applications:

Applications:

A radar level sensor makes use of the time domain reflection (TDR) principle. In this method, an electromagnetic pulse is sent through a cable or probe and propagates at the speed of light. Whenever the pulse reaches the surface of the substance being measured, a portion of it is reflected back to create an echo that returns to the transmitter through the exact same path. The distance between the transmitter and the surface of the measured medium is calculated as proportional to the propagation time of the pulse, leading to a conclusion about the height of the level.

The radar level meter operates on a simple principle but is highly effective. This approach employs electromagnetic radiation to compute the distance from the sensor to the surface of the measured material and infer the height of the level. The TDR principle governs the operation of the radar level sensor.

To determine the level of a liquid or solid substance, the radar level sensor emits a pulse that travels through a cable or probe at the speed of light. This pulse bounces back when it hits the surface of the subject being measured, and the time taken for the pulse to return to the transmitter is used to determine the level of the substance. This is the principle of radar level sensing.
