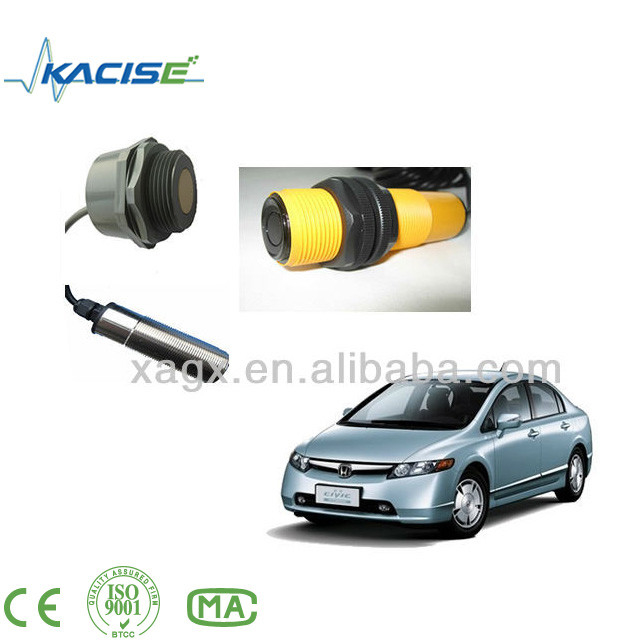

2018 Ultrasonic piezoelectric transducer sensor

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC or stainless steel housing, designed to meet IP67 water intrusion. The power 9.0V-28V operation detects objects from 0.1meters to 10meters and provides sonar range information from 0.25meters out to 10meters out with 0.001meters or 0.01meters resolution. The interface output formats included are pulse width output, analog voltage output, NPN/PNP output and serial digital output.

2. Dimensions:(unit:mm)

If the module type is M18, the dimensions are as follows,

A=Φ18.0±0.5           E=Φ12.0±0.5
B=66.0±0.5             F=Φ28.0±0.5
C=27.0±0.5             G=10.0±0.5
D=12.0±0.5             H=12.0±0.5

3. Features

1). Designed for outdoor or indoor environments

2). High sensitivity

3). Readings can occur up to every 33mS(30Hz) within 3meters or occur up to every 80ms(12.5Hz) within 10meters.

4). Free run operation can continually measure and output ranger information

5). 9V-28V supply with very low average current draw

6). Multi-kind output type such as analog (40-20mA, 0/1-5V, 0/1-10V), RS485, Can bus.

7). Sensor operates at 40 KHz, 112 KHz, 175 KHz, 300 KHz, 1 MHz

4. Applications

1).Tank level measurement

2). Bin level measurement

3). Proximity zone detection

4). People detection

5). Robot ranging sensor

6). Autonomous navigation

7). Multi-sensors navigation

8). Distance measuring

9). Long range object detection

10). Industrial sensor

5. Package and accessories information

2 units are in box and all boxes are packed in standard packages or customers requests available. Each body of the ultrasonic is shield by foam. The dimensions of the box is 130mm*130mm*42mm.

The accessories are as follows:

a, 2 meters length cable

b, 2 nuts for fixing the sensor

6. Ordering information

GX_US_AAA-BBB-CCC-DDD-EEE

BBB: distance range

003-30cm      005-50cm

010-100cm    030-300cm

060-600cm   Others Reserved

CCC: Interface Type

0V5-Analog 0-5V

1V5- Analog 1-5V

0VA- Analog 0-10V

1VA- Analog 1-10V

4MA- Analog 4-20mA

SER-RS485 interface

CAN-Can bus interface

PUL-PUL pulse

PMP-PMP pulse

NON-NPN switch

PNP-PNP switch

Others-Reserved

DDD: cable connection method

Fix-fixed cable

M12-M12 connection socket

EEE: cable length

XXX-description the cable length, the cable length should less than 15m, the number should less than 150

e.g. GX_US_S30-700-SER-FIX-080
