Hot sale oil level sensor electronic
1. Specification: of water level sensor
| Spec. |
Numerical value |
Remark |
| Pressure range |
0~1……500mH2O |
1mH2O≈9.81kPa |
| Overload pressure |
1.5times Rated pressure |
|
| fracture pressure |
3 times rated pressure |
|
| Accuracy |
0.25%F.S, 0.5%F.S, 1.0%F.S |
|
| |
| Stability |
Typical value: 0.1%F.S Max.: 0.2% F.S/year |
|
| Operating Temperature |
-40°C~85°C or -40 °C ~125 °C |
|
| compensation temperature |
-10°C~70°C |
|
| medium compatibility |
All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L |
|
| electrical properties |
2 line |
3 line |
|
|
| Output signal |
4~20mA |
0~5V |
0~10V |
|
| Power supplies |
10~30Vdc |
80~30Vdc/ac |
11~30Vdc/ac |
Vdc/ac |
| load resistance |
(U-10)/0.02( Ω ) |
more than 100k Ω |
|
| insulation |
more than 100M Ω @50V |
|
| Electrical Connections |
waterproof fixed cable + Two rectangle circle+Sealing Rings+seal gum+ Pure glue protection grade : IP68 |
|
| pressure interface |
G1/4,input type |
|
| response time |
10ms |
|
| Electric strength |
500Vac@1 second |
|
| Graduate Certificate Programs |
certificate of explosion-proof, CE |
|
| electromagnetic compatibility |
electromagnetic radiation EN50081-1/-2, electromagnetic susceptibilty: EN50082-2 |
|
| lightning protection |
air conduction resistance 8000V,case, cable conduction |
|
2. Feature : of water level sensor
1). Diffused-Silicon oil filled core
2). All kinds of structure to satisfy different users
3). Easy to use with submersible measuring
4). Multiple pressure range and signal output
5). Non-polar 2 wire system current output
6). Can be used in lightning protection products
7). Reinforcing rib of liquid cable
8). Intrinsically safe explosion proof, Isolation explosion proof, CE
3. Application:
1). Deep well level measuring
2). Hydrologic measurement for river, lake, sea
3). Sewage treatment
4). Cloudy level measuring
5). Fluid reservoir level measuring
6). Water-saving irrigation
7). Circulating liquid consumption monitoring
8). Diversion works
4. Electric connection & structure
5. Ordering information
GX-Type-Range-Output-Accuracy-Power-Structure-Cable length-Package
1.Type : PS400-T1=universal type,
PS400E=intrinsically safe type,
PS400D=isolation explosion proof ,
PS400L= li ghting protection,
PS400-T2=thread mounted,
PS400-T3=Submersible & thread type, dual purpose
PS400-T4=Sediment prevention,
PS400-T5=minor diameter,
PS400-T6=antifouling,
PS400-T7=High density,
PS470=economical, low cost
RSV=Reserved
2. Range: 0~1m…500m= the upper limitation of the range
3. Output:: A=4~20mA, V=0~5Vdc, V1=1~5Vdc. V2=0~10Vdc
4. Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S, 1.0=±1.0%F.S
5. Power: 24VDC, 11~30Vdc
6. Structure : T= submersible type, G=F=split, Ht=customized
7. Cable length: XXm=XX meter 1-150m
8. Package: Bb, Foam

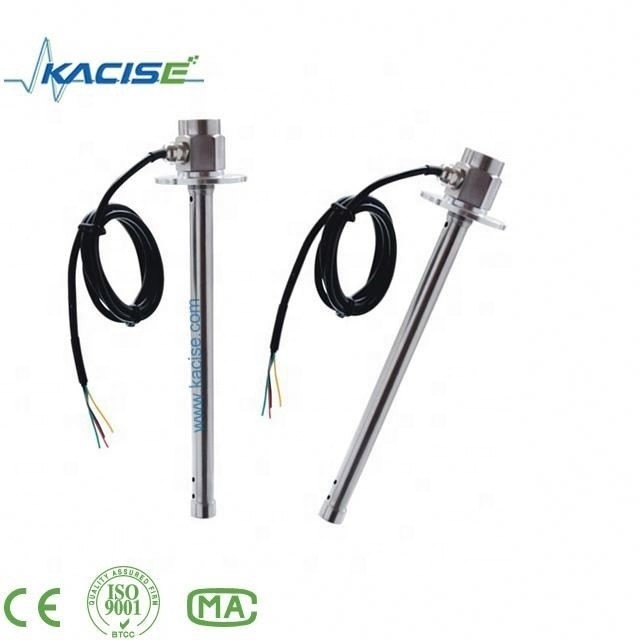

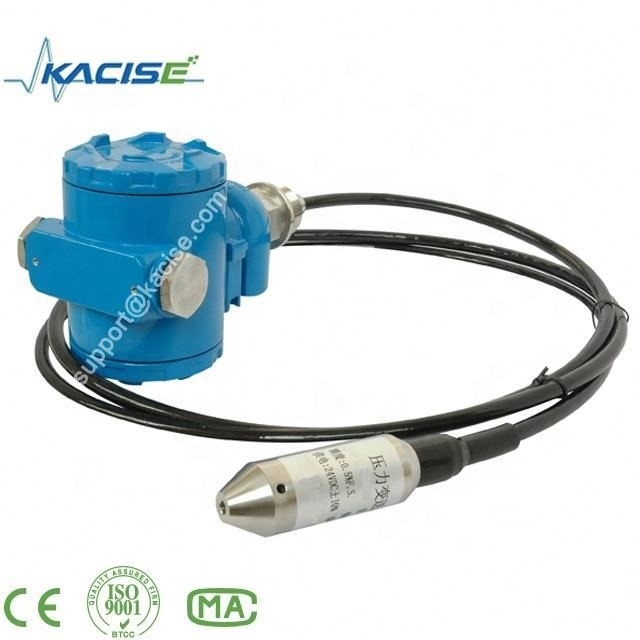

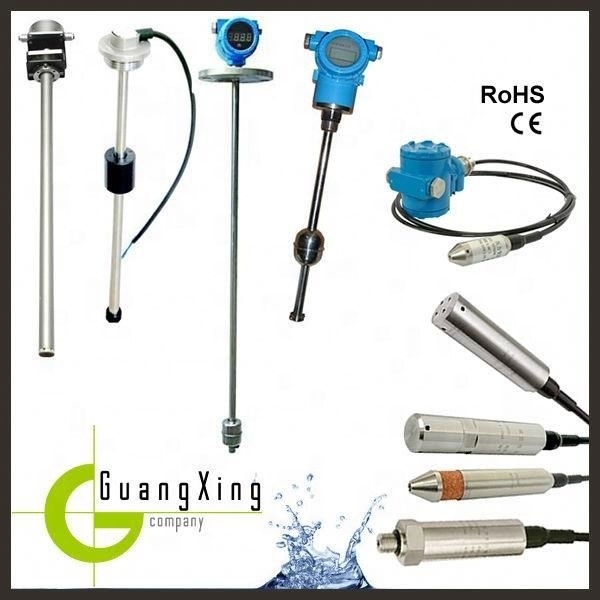

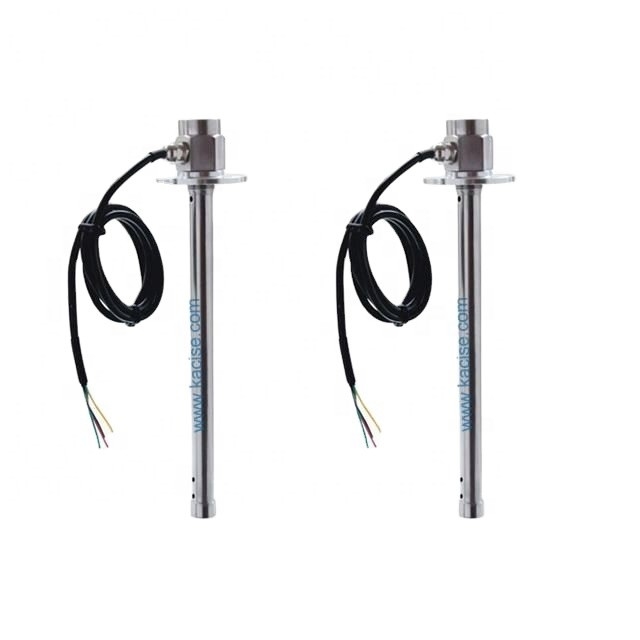

6. Product picture
