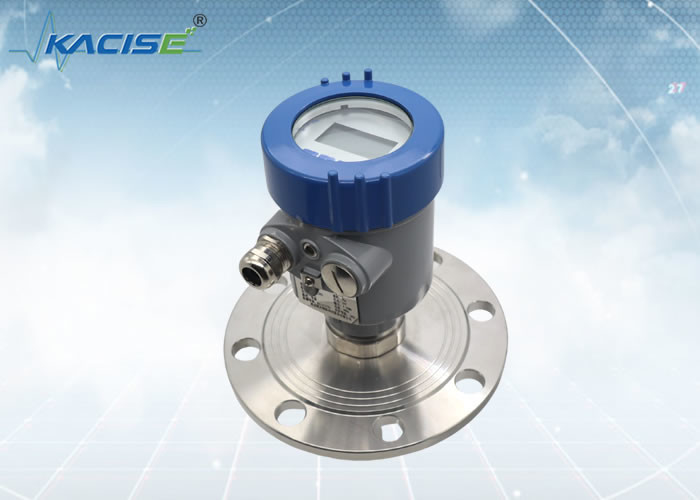

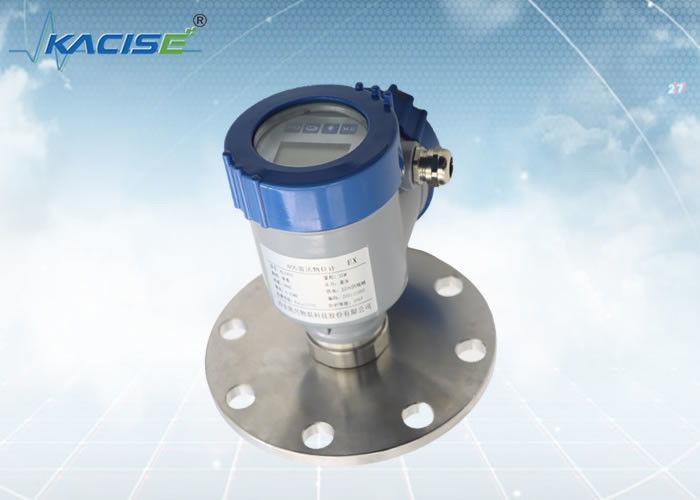

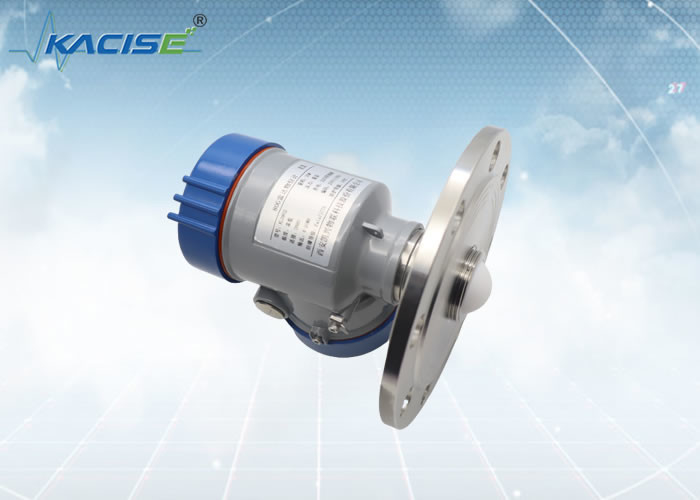

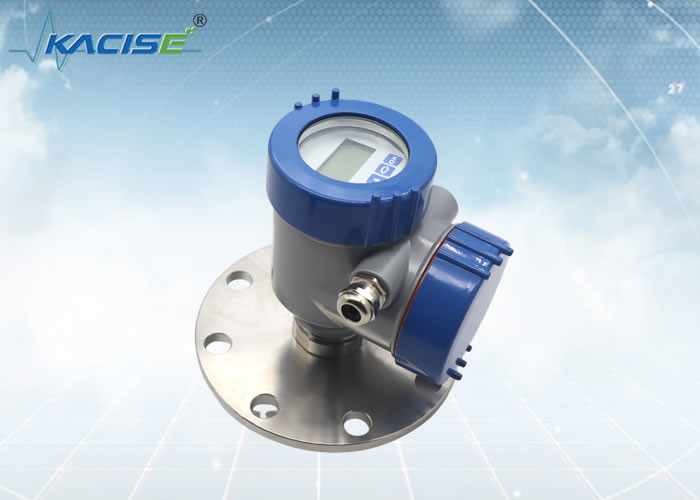

Aluminum / Stainless Steel Casing Radar Sensor RS485 4 - 20mA KLD802

KLD802 80G FM Radar Level Sensor

Introduction

Radar level sensor antenna emits and narrow microwave pulse. This pulse propagates in space at the speed of light. When it encounters the surface of the measured medium, part of its energy is reflected back and received by the same antenna. The time interval between the transmitted pulse and the received pulse is proportional to the distance from the antenna to the surface of the measured medium.

Feature

·Based on the self-developed CMOS millimeter wave RF chip, it can achieve a more compact RF architecture, higher signal-to-noise ratio and smaller blind area.
5GHz working bandwidth enables the product to have higher measurement resolution and measurement accuracy.
·The narrowest 3 ° antenna beam angle, the interference in the installation environment has less impact on the instrument, and the installation is more convenient.
With shorter wavelength and better reflection characteristics on the solid surface, it is not necessary to use universal flange for aiming.
Support remote debugging and remote upgrade, reduce waiting time and improve work efficiency.
·Support Bluetooth debugging of mobile phones, convenient for on-site maintenance

Installation





Production:

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
