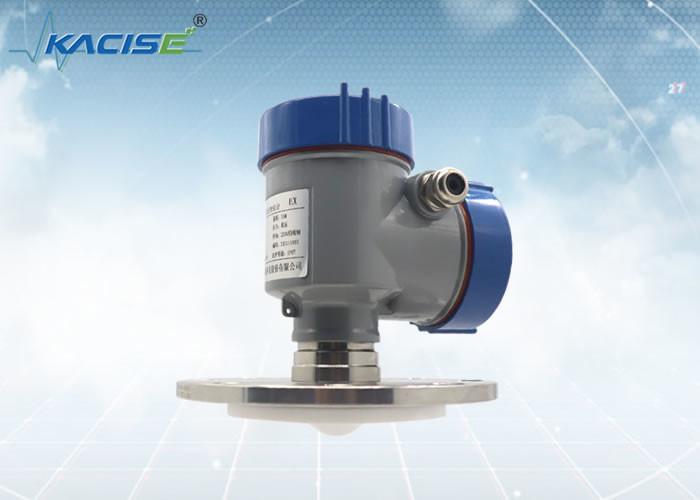

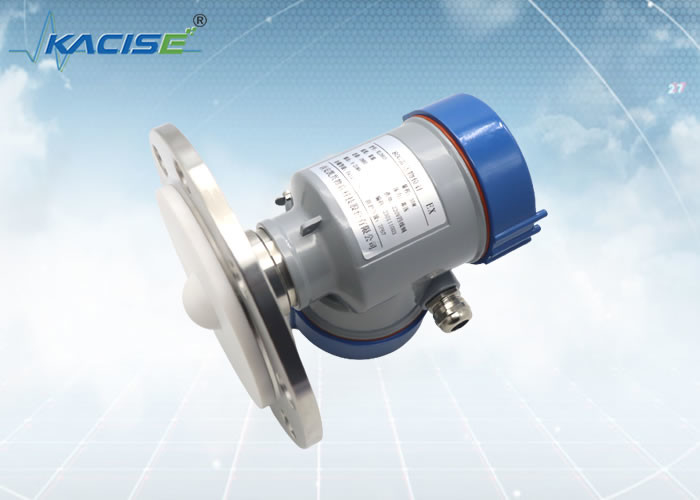

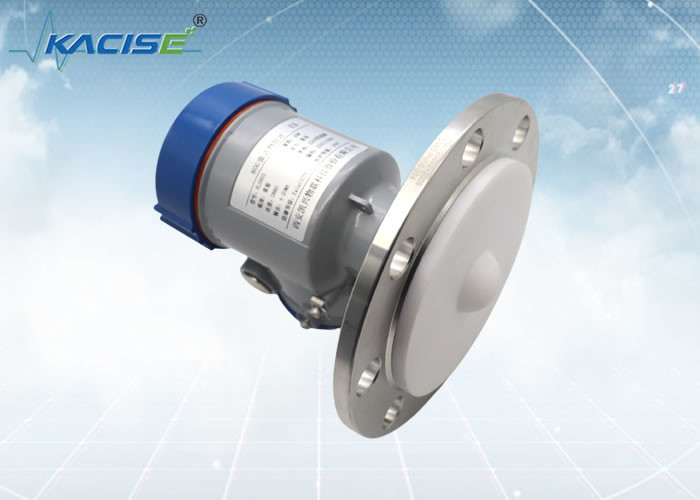

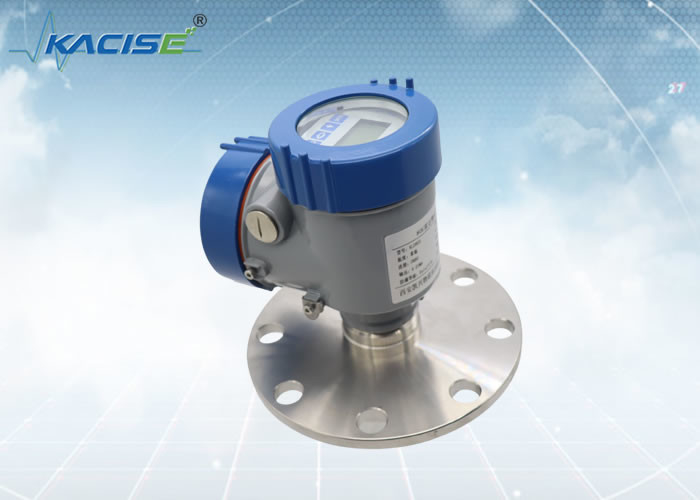

KLD803 Anti Corrosion Four Wire System Radar Depth Sensor With PTFE Material

KLD803 80G FM Radar Level Sensor

Introduction

KLD800 series 80G radar level gauge adopts frequency modulated continuous wave (FMCW) technology. The antenna emits a high-frequency FM radar signal, and the frequency of the radar signal increases linearly. The transmitted radar signal is received by the same antenna after being reflected by the measured medium. At the same time, the frequency difference between the transmitted signal frequency and the received signal frequency is proportional to the measured distance. The collected frequency difference signal is subjected to fast Fourier transform (FFT) to obtain the spectrum of the reflected echo, and the distance to the target to be measured is calculated based on this.

Feature

• PTFE anti-corrosion material
• Four-wire system application
• Multiple range options
• Flange/threaded connection

Select appropriate anti-corrosion material - PTFE

• PTFE offers many unique advantages. These include:
• Wide operating temperatures (-400° F to 500° F)
• Resistance to Corrosion (great replacement for rubbers which are affected by corrosion)
• Excellent Electrical Properties
• Unlimited Shelf Life
• High resistance to water, moisture & UV
• Low coefficient of friction
• High Flexural Strength
• Strong non-stick properties
• Good fatigue resistance under low stress
• Availability of food, medical and high-purity grades
• Low water absorption/hydrophobic

Product Dimension

Unit in mm:

Installation Method

Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

• datum plane
• vessel center or axis of symmetry

Hoisting Installation

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.

What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
