2088 Anti Explosive Shell RS485 IP65 Industrial Pressure Gauge

2088 Anti Explosive Shell RS485 IP65 Industrial Pressure Gauge

2088 Industrial Pressure Gauge

RS485 Industrial Pressure Gauge

Anti explosive Industrial Pressure Gauge

Place of Origin:

CHINA

Nazwa handlowa:

KACISE

Orzecznictwo:

CE

Model Number:

KPC102

Skontaktuj się z nami
Poproś o wycenę
Szczegóły produktu
Range:
-0.1...0~100Mpa
Accuracy:
±0.25%F.S,
Output:
4-20mA,RS485, 5 way relay
name:
Precision Pressure Sensor
model:
KPC102
Powre supply:
12-30VDC
Protection:
IP65
Display:
LED/5 digit LCD
Podkreślić:

2088 Industrial Pressure Gauge

,

RS485 Industrial Pressure Gauge

,

Anti explosive Industrial Pressure Gauge

Warunki płatności i wysyłki
Minimum Order Quantity
1
Cena
30-100
Packaging Details
packed in cartons
Delivery Time
3-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability
1000000pcs/month
Opis produktu

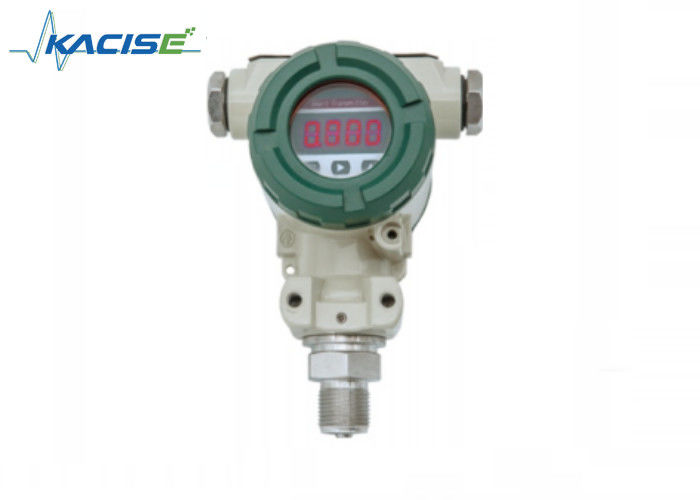

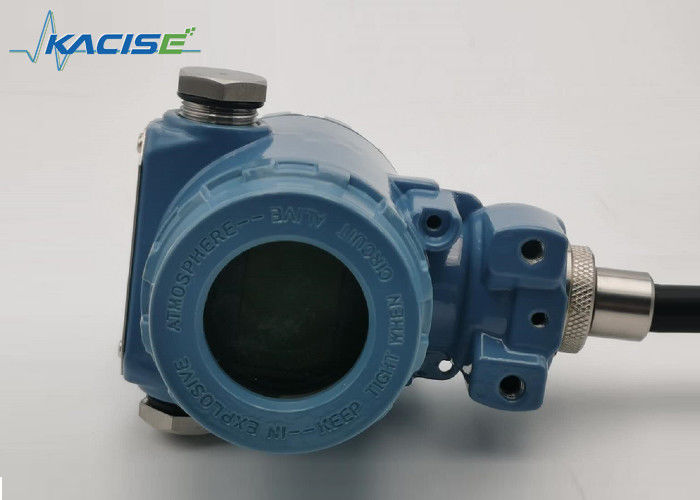

KPG102 2088 Anti-explosive Shell 0.25% Accuracy 4-20mA & RS485 Output LED Display IP65 Industrial Pressure Gauge​



Introduction



KPG102 with industrial 2088 anti-explosive shell, adopts high quality diffused silicon pressure core as the sensing element. With the compensation of digital circuit, the display and output is stable. It is suitabel for bad use environment on petroleum and chemical industires.

Application

  • Wide range, suitale for absolute pressure, guage pressure
  • and seal gauge pressure
  • High protection level, high accuracy, high stable and reliability
  • Digit pressure display, LED/LCD optional
  • Strong anti interference, anti-vibration, anti-shock,
  • Shell protection IP65
  • 2088 industial anti-explosive shell and Intrinsic safety explosion protection



Parameter



Pressure range -0.1...0~100Mpa Accuracy ≤0.25%F.S
Stability ≤0.1%/year Overload ≤150%F.S
Power Supply 12-30VDC Wiring Way 4-20mA & RS485
Protection IP65 Relative Humidity 0~90%RH
Dispaly way LED/ 5 digit LCD Cable connection Cable pin
Environment temperature -30~80°C Medium temperature -40~150°C





Order Information



GXPS102 Compact pressure transmitter
  Range Pressure range: -0.1MPa...0~100MPa
[0~X]bar X: Actual pressure range
  Code Display
W No display
X LED
Y LCD
  Code Output Signal
I 4-20mA
R RS485
H Hart
  Code Thread connection
G12 G1/2
M20 M20*1.5



Our Company



Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
