Small Size High Precision Level Transmitter Reinforcing Rib Deep Well Level Measuring

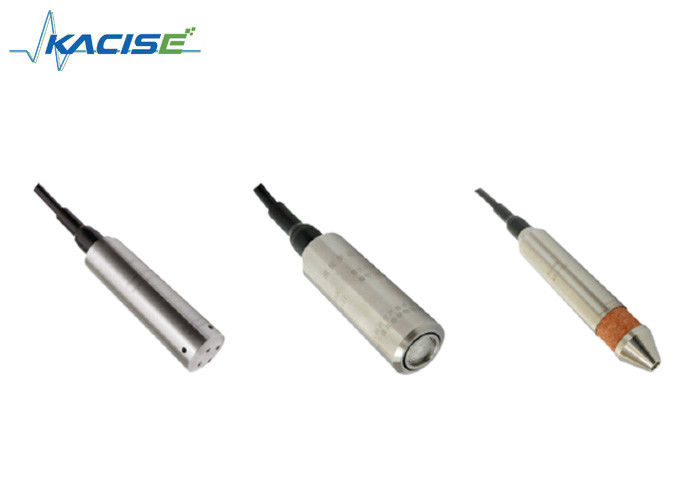

GXPS400 Series Level Transmitter

1. Feature
☆ Diffused-Silicon oil filled core
☆ All kinds of structure to satisfy different users
☆ Easy to use with submersible measuring
☆ Multiple pressure range and signal output
☆ Non-polar 2 wire system current output
☆ Can be used in lightning protection products
☆ Reinforcing rib for liquid cable available

2. Application
☆ Deep well level measuring
☆ Hydrologic measurement for river, lake, sea
☆ Sewage treatment
☆ Cloudy level measuring
☆ Fluid reservoir level measuring
☆ Water-saving irrigation
☆ Circulating liquid consumption monitoring
☆ Diversion project


3. Introduction
GXPS400 series level transmitter is a special structure and use of products, high precision, small size
and good stability. Special strong cables for corrosive, abrasive, and chemical environment are
offered according to filed environment.
Customized solutions for various fluids can be supplied.


4. Electronic interface and signals definition

5. Parameter

6. Ordering information

GX-Type-Range-Output-Accuracy-Power-Structure-Cable length

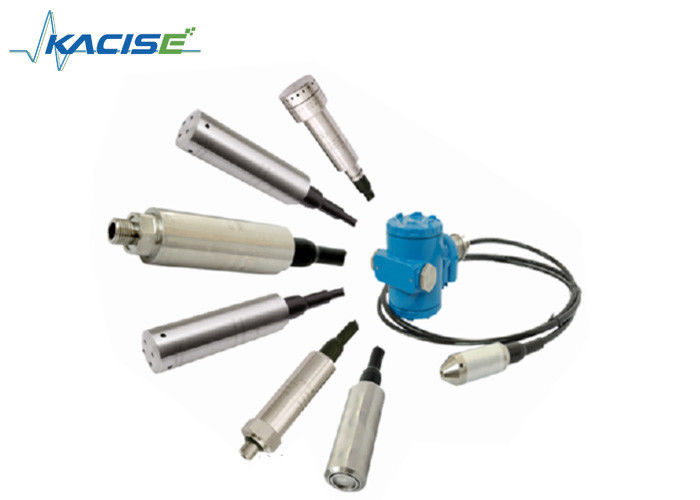

Type: PS400=universal type, PS400A=thread mounted, PS400B=Submersible & thread type,
          PS400C=absolute pressure type, PS400L= lighting protection,
          PS400-WH=sediment prevention, PS430=minor diameter, PS400-1=antifouling,
          PS400-2=high density, PS400W=all welded, RSV=reserved.
Range: 1m…500m= the upper limitation of the range
Output: A=4~20mA, V=0~5V, V1=1~5V, V2=0~10V, V3=0.5~4.5V
Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S,
Power: 5VDC, 24VDC, 11~30Vdc, or customized
Structure: T= submersible type, G=F=split, Ht=customized
Cable length: XXm=XX meter 1-150m

Package: Bb, Foam

e.g. GXPS400-2.5m-A-0.5-DC24-T-5m-Foam
PS400, measuring range is 0-2.5mH2O, accuracy is 0.5%, 24Vdc power supply 4-20mA
output, submersible type with 5m cable, foam packaged.
