Name: GXPS353 Ceramic Core Precision Pressure Sensor High Stability Anti - Corrosion
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS353
Price: 152.00 USD
Availability: InStock

Dom > produkty > Precyzyjny czujnik ciśnienia >

GXPS353 Ceramic Core Precision Pressure Sensor High Stability Anti - Corrosion

high accuracy pressure sensor

explosion proof pressure transmitter

Place of Origin:

China (Mainland)

Nazwa handlowa:

Kacise

Orzecznictwo:

certificate of explosion-proof, CE

Model Number:

GXPS353

Skontaktuj się z nami

Poproś o wycenę

GXPS353 Ceramic Core Precision Pressure Sensor High Stability Anti - Corrosion

Szczegóły produktu

Pressure range:

0~2bar ......600bar

Load pressure:

1.5times nominal value pressure (1.5X)

Rupture pressure:

3times nominal value pressure (3X)

Accuracy:

±0.25%F.S, ±0.5%F.S, ±1.0%F.S

Operating temperature:

-40°C~125°C

Storage temp.:

-40~120℃

Compensation temperature:

-10°C~ 80°C

Output signal:

4~20mA, 0.5~4.5V

Power supply:

10~30Vdc

Pressure port:

G1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2

Podkreślić:

high accuracy pressure sensor

explosion proof pressure transmitter

Warunki płatności i wysyłki

Minimum Order Quantity

1pcs

Cena

negocjowalne

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

1000 Pieces per Week

ZAŁĄCZONE PRODUKTY

Czujnik ciśnienia klimatyzatora samochodowego

Najlepszą cenę

4-20mA Wyjście Nadajnik ciśnienia przemysłowego

Najlepszą cenę

Niedrogi 0,5-4,5V miedziany czujnik ciśnienia wody do gazu przemysłowego

Najlepszą cenę

4-20mA HART Wyjście inteligentny podwójny płaszczyzna różnicowy nadajnik ciśnienia poziomu dla przemysłu

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

GXPS353 Refrigeration Industry pressure transmitter

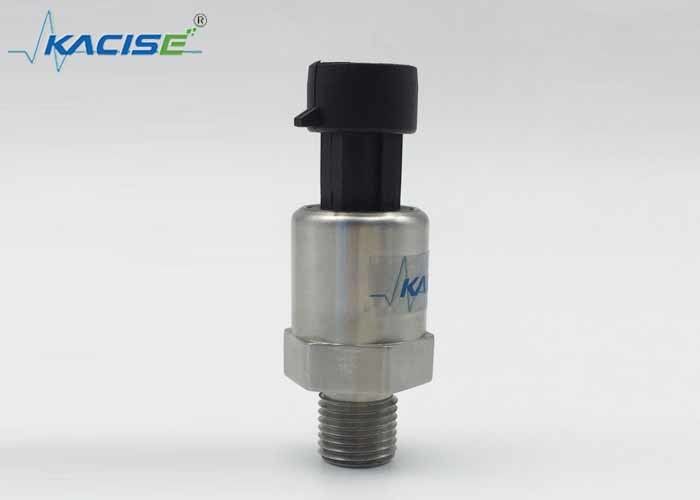

GXPS353 Ceramic Core Precision Pressure Sensor High Stability Anti - Corrosion 0

1.Product Description

GXPS353 series pressure transmitter is a high-volume, low cost OEM, civil & industrial use, high-quality, high-reliability products. Small size, light weight, compact structure, and widely used in the scene of the compressor, automobile, air conditioning, etc. pressure measurement. The product is made of high quality stainless steel structure, pressure core and sensor chips are imported from Germany, tuning and digital compensation techniques, and by the intrinsically safe certification and CE certification.

Standard voltage current output mode.

2. Product features:

Accuracy: ±0.25, ±0.5, ±1%F.S
High stability, high reliability
Import German ceramic core body
Digital calibration
Variety of connector choice
Variety of pressure port
Zero can be arbitrarily displaced
Variable drive can be between 5 to 100%
CE certificate
RoHS compliant

3. Parameter

Spec.	Value
Pressure range	0~2bar ......600bar
Load pressure	1.5times nominal value pressure (1.5X)
Rupture pressure	3times nominal value pressure (3X)
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability	Typical value 0.5%F.S, Max. value: 1%F.S
Operating temperature	-40°C~125°C
Storage temp.	-40~120℃
Compensation temperature	-10°C~ 80°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance	2 wire system	3 wire system
Output signal	4~20mA	0.5~4.5V
Power supply	10~30Vdc	5Vdc		10~30Vdc
Load pressure	(U-10)/0.02(Ω)	>100kΩ
Insulation	>100M Ω@50V
Electric strength	500V@60 second
Vibration/Impact	10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Pressure durable	2×10⁶pressure circle @25°C
Electrical connection	Packard, Hirsmann , air plugs, fixed cable, water proof cable
Pressure port	G1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2,
Pressure type	G, S		Response time: 10ms
Certificate	Intrinsically safe mode E, RoHS; CE
EMI/EMC	EMI: EN50081-1/-2; EMC: EN50082-2

4.Application

Compressor
Floor house water supply
Hydraulic control
Air conditioning unit
Automobile engine
Automatic detection system
Hydraulic unit
Refrigeration equipment

5.Company Information

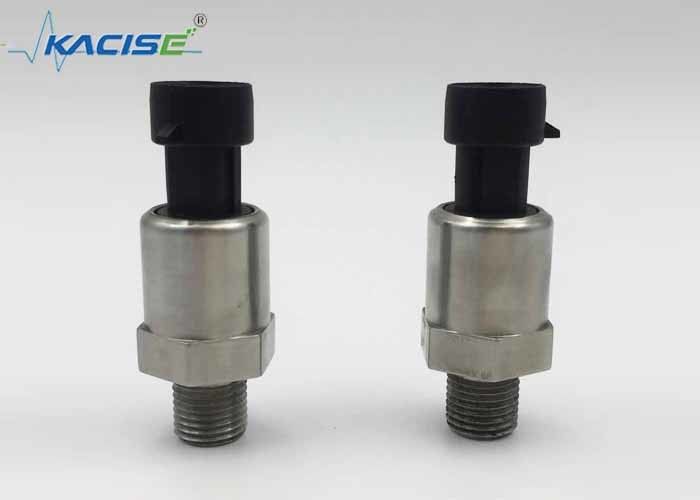

GXPS353 Ceramic Core Precision Pressure Sensor High Stability Anti - Corrosion 1

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
