Name: KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQZ-GF
Price: 5,000.00 USD
Availability: InStock

Dom > produkty > Environmental Monitoring >

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

KunQuan

Orzecznictwo:

Numer modelu:

KQZ-GF

Skontaktuj się z nami

Poproś o wycenę

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Szczegóły produktu

Stopień czujnika:

Czujniki klasy meteorologicznej

Słup montażowy:

0,5 m do 3,5 m (możliwość dostosowania)

Ochrona:

w pełni wodoodporny

Przechowywanie danych:

Pamięć offline, konfigurowalny interwał

Monitorowane parametry:

Wiatr, temperatura, wilgotność, ciśnienie, promieniowanie słoneczne

Tryb pracy:

Bez nadzoru / Samodzielny / W sieci

Warunki płatności i wysyłki

Minimalne zamówienie

1 szt

Szczegóły pakowania

Każde urządzenie ma indywidualne pudełko, a wszystkie pola są pakowane w standardowe pakiety lub dos

Czas dostawy

5-8 dni roboczych

Zasady płatności

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Możliwość Supply

1000 sztuk/szt. tygodniowo do negocjacji

ZAŁĄCZONE PRODUKTY

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Najlepszą cenę

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Najlepszą cenę

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Najlepszą cenę

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

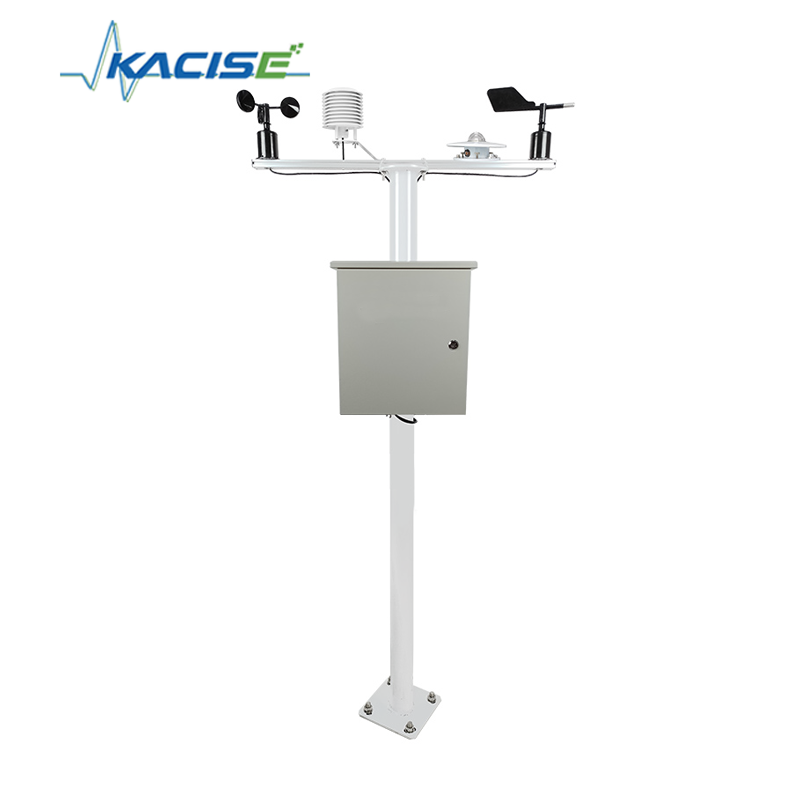

KQZ-GF Photovoltaic Weather Station

Product Overview

The KQZ-GF photovoltaic weather station is an unattended environmental monitoring system that integrates meteorological data acquisition, storage, transmission, and statistical analysis.

The automatic weather station system consists of three main components: meteorological sensors, a data acquisition unit, and computer-based meteorological software. It can simultaneously monitor multiple atmospheric parameters including air temperature, air humidity, wind speed, wind direction, and solar total radiation.

The wind speed and wind direction sensors are dedicated meteorological-grade sensors, offering high precision and high reliability. The data acquisition unit supports meteorological data collection, real-time clock functionality, timed data storage, parameter configuration, user-friendly interface, and standard communication functions.

Technical Specifications

Parameter	Measurement Range	Resolution	Accuracy
Wind speed	0-70 m/s	0.1 m/s	±(0.3 + 0.03V) m/s Starting wind speed ≤ 0.5 m/s
Wind direction	0-360°	1°	±3° Starting wind speed ≤ 0.5 m/s
Air temperature	-40 to +100°C	0.1°C	±0.3°C
Air humidity	0-100% RH	0.1% RH	±5% RH
Atmospheric pressure	300-1100 hPa	0.1 hPa	±1 hPa
Surface-mounted temperature	-50 to 100°C	0.1°C	±0.5°C
Solar total radiation	0-2000 W/m²	1 W/m²	±3%

Key Features

Low-power processor integrating data acquisition, storage, and communication for high system integration
Fully waterproof design suitable for harsh environments; supports standalone use or rapid deployment of localized observation networks
Offline data storage with configurable sampling intervals based on observation needs
Supports mounting pole heights from 0.5 m to 3.5 m, with customizable installation accessories
High precision and high reliability for long-term environmental monitoring applications
