Nazwa handlowa:
Yokogawa
Numer modelu:
SS400G, SS300G

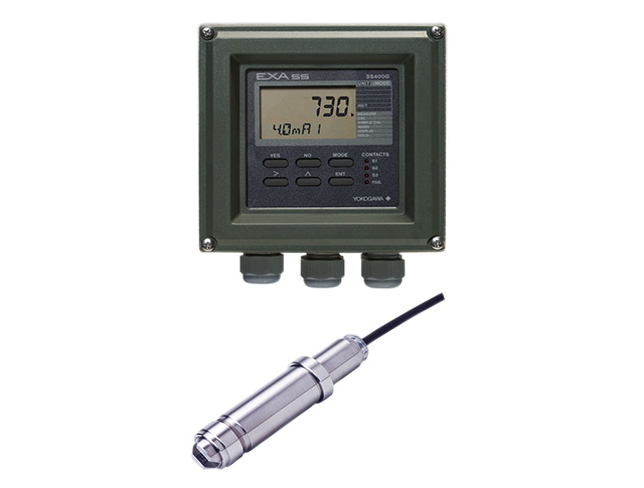

The SS400 MLSS analyzer is a precision measuring system designed for continuous monitoring of mixed liquor suspended solids (MLSS) concentration in activated-sludge treatment processes at sewage and industrial wastewater treatment facilities.
| Measuring Object | Concentration of mixed liquor suspended solids (MLSS) in aeration tanks |
|---|---|
| Measuring Method | Transmitted/scattered light comparison method |
| Measuring Range | 500 to 20,000 mg/l |
| Output Signal | Two 4-20 mA DC outputs (max load resistance: 600 Ω) |
| Contact Output | Four outputs |
| Environmental Rating | JIS C0920 watertight, IEC IP65, NEMA 4X |
| Power Supply | 100-240 V AC, 50/60 Hz or 24 V DC |
| Weight | Approx. 2.5 kg |
| Design | Probe-like sensor |
|---|---|
| Measuring Principle | Scattered/transmitted light comparison method |
| Operating Range | 500 to 20,000 mg/l |
| Material Composition | Stainless steel (304SS) body, glass window, nitrile rubber O-ring, PVC cable |
| Cable Options | 3, 5, 10, 15 or 20 m lengths |
| Cleaning Options | Optional jet cleaning unit (not compatible with floating ball holder) |
| Performance | Linearity: ±4.5% F.S., Repeatability: 2% F.S., Stability: ±2% F.S./day |
| Weight | Approx. 0.5 kg plus 0.12 kg per meter of cable |
