Name: SC8SG Conductivity Sensor with 2-electrode and 4-electrode systems featuring 0.01 cm-1 cell constant for precise liquid conductivity measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SC8SG
Price: 5,000.00 USD
Availability: InStock

Dom > produkty > Czujnik jakości wody >

SC8SG Conductivity Sensor with 2-electrode and 4-electrode systems featuring 0.01 cm-1 cell constant for precise liquid conductivity measurement

2-electrode system Conductivity Sensor

4-electrode system Conductivity Sensor

0.01 cm-1 cell constant Conductivity Sensor

Nazwa handlowa:

Yokogawa

Numer modelu:

SC8SG

Skontaktuj się z nami

Poproś o wycenę

SC8SG Conductivity Sensor with 2-electrode and 4-electrode systems featuring 0.01 cm-1 cell constant for precise liquid conductivity measurement

Szczegóły produktu

Zasada pomiaru:

System 2-elektrod lub 4-elektrod

Stałe komórkowe:

0,01 cm-1 lub 10 cm-1 (dla systemu 2-elektrody) 10 cm-1 (dla systemu 4-elektrody)

Ciśnienie:

1000 kPa Max. (Maksimum 500 kPa dla detektorów z komorami polipropylenowymi)

RTD dla kompensacji temperatury:

PT1000 (wbudowany w czujnik)

Budowa:

Zakapulowanie deszczowe (kompatybilne z JIS C0920)

Połączenie procesu:

Wkręcanie lub przepływ

Podkreślić:

2-electrode system Conductivity Sensor

4-electrode system Conductivity Sensor

0.01 cm-1 cell constant Conductivity Sensor

Warunki płatności i wysyłki

Minimalne zamówienie

1PCS

Szczegóły pakowania

Każde urządzenie ma indywidualne pudełko, a wszystkie pola są pakowane w standardowe pakiety lub dos

Czas dostawy

5-8 dni roboczych

Zasady płatności

Moneygram, Western Union, T/T, D/P, L/C, D/A.

Możliwość Supply

1000 sztuk/sztuk tygodniowo do negocjacji

ZAŁĄCZONE PRODUKTY

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Najlepszą cenę

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Najlepszą cenę

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Najlepszą cenę

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

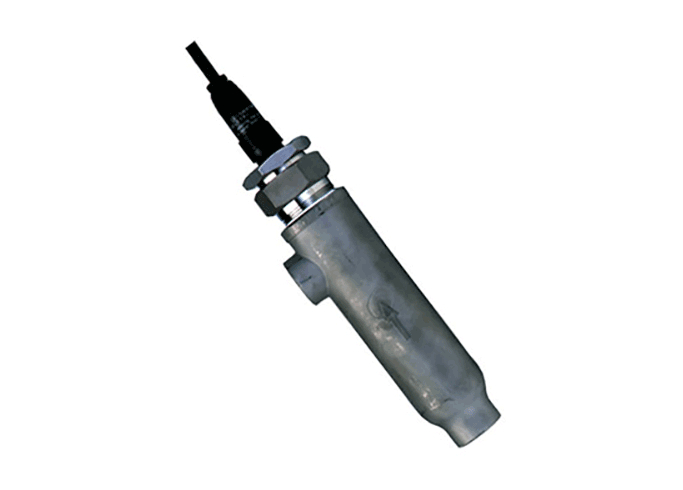

Conductivity Sensor SC8SG

Yokogawa supplies superior on-line analyzers for monitoring and controlling the conductivity of liquids and solutions. Our product line includes the SC450G four-wire conductivity/resistivity converter, SC202G and SC202S two-wire conductivity/resistivity transmitters, and SC100 panel mount conductivity converter, complemented by a range of precision sensors for accurate liquid conductivity measurement.

The SC8SG conductivity sensor is engineered to meet demanding ultrapure water requirements in semiconductor and pharmaceutical industries, while also serving traditional water quality measurement needs in power plants and chemical applications. Available in multiple mounting configurations including screw-in, flow-through with screw joint, and flow-through with flange.

Specifications

Measurement Object	Conductivity of liquids or solutions
Measuring Principle	2-electrode or 4-electrode system
Cell Constants	0.01 cm⁻¹ or 10 cm⁻¹ (2-electrode system) 10 cm⁻¹ (4-electrode system)
Measuring Ranges	0 - 0.5 μS/cm to 0 - 100 μS/cm (0.01 cm⁻¹ cell constant) 0 - 1 mS/cm to 0 - 1000 mS/cm (10 cm⁻¹ cell constant)
Temperature Range	0 to 100°C (130°C max for 0.01 cm⁻¹ detectors, excluding polypropylene chambers)
Pressure	1000 kPa max (500 kPa max for polypropylene chamber detectors)
Flow Rate	No specific limits, though <20 l/min recommended for flow-through detectors
Temperature Compensation	Pt1000 RTD (built into sensor)
Construction	Rainproof encapsulation (JIS C0920 compliant)
Weight	Screw-in: ~1.3 kg (without cable) Flow-through (SCS14 chamber): ~3.1 kg Flow-through (SCS14 flanged): ~4.5 kg Flow-through (polypropylene chamber): ~2.7 kg Flow-through (polypropylene flanged): ~3.2 kg Cable: 0.3 kg (5.5 m), 0.5 kg (10 m)
Process Connection	Screw-in or flow-through
