Name: KSIMU002M High Precision Inertial Measurement Unit 5V 1.5W
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSIMU002M
Price: 5,000.00 USD
Availability: InStock

Dom > produkty > Czujnik jakości wody >

KSIMU002M High Precision Inertial Measurement Unit 5V 1.5W

High Precision Inertial Measurement Unit

5V Accelerometer Sensor

1.5W Inertial Measurement Unit

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

kacise

Orzecznictwo:

Numer modelu:

KSIMU002M

Skontaktuj się z nami

Poproś o wycenę

KSIMU002M High Precision Inertial Measurement Unit 5V 1.5W

Szczegóły produktu

Woltaż:

Zużycie energii:

1,5 W

Marszczyć:

100mV

Dokładność kąta skoku (-90 ° ~+90 °):

<0,1 °

Dokładność kąta rolki (-180 ° ~+180 °):

<0,1 °

Podkreślić:

High Precision Inertial Measurement Unit

5V Accelerometer Sensor

1.5W Inertial Measurement Unit

Warunki płatności i wysyłki

Minimalne zamówienie

1PCS

Szczegóły pakowania

Każde urządzenie ma indywidualne pudełko, a wszystkie pola są pakowane w standardowe pakiety lub dos

Czas dostawy

5-8 dni roboczych

Możliwość Supply

1000 sztuk/sztuk tygodniowo do negocjacji

ZAŁĄCZONE PRODUKTY

KFDO310 Online Fluorescence Dissolved Oxygen Sensor no electrolytes no polarization no need to consume oxygen

Najlepszą cenę

KFDO310 Online Fluorescence Dissolved Oxygen Sensor no electrolytes no polarization no need to consume oxygen

Najlepszą cenę

PPM RS485 fishpound electrode Optical Dissolved Oxygen Sensor

Najlepszą cenę

RS485 output Dissolved Oxygen Sensor Water Quality Sensor IP68 Grade For Shrimp Farm

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

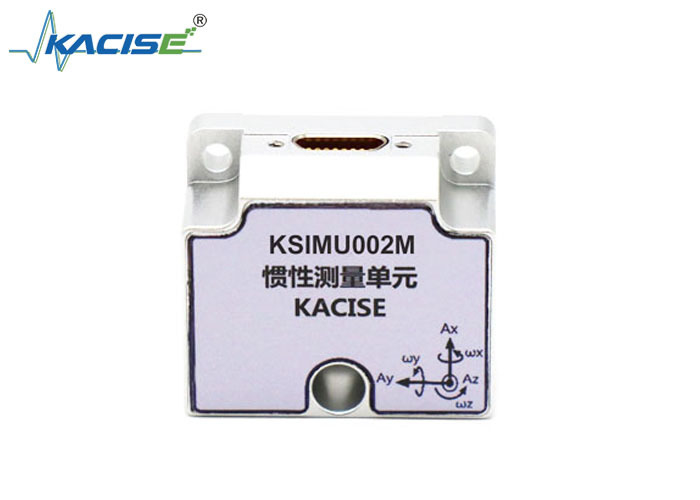

KSIMU002M High Precision Inertial Measurement Unit

Key Specifications

Attribute	Value
Voltage	5V
Power consumption	1.5W
Ripple	100mV
Pitch Angle accuracy (-90°~+90°)	<0.1°
Roll Angle accuracy (-180°~+180°)	<0.1°

The KSIMU002M is a high-performance, compact inertial measurement device designed for precise navigation, control, and dynamic measurement applications. Built with full MEMS inertial devices and military-grade components, this unit delivers exceptional accuracy in demanding environments.

Product Features

Wide operating temperature range
Broad bandwidth capability
Compact form factor
Fast startup time
High measurement precision
Exceptional reliability and robustness
Accurate performance in harsh conditions

Applications

Automotive electronics
Aircraft guidance and control systems
Attitude reference systems
Platform stabilization
Robotics and antenna stabilization

Technical Specifications

Power Supply Parameters

Parameter	Specification
Voltage	5V
Power consumption	1.5W
Ripple	100mV

Product Performance

Parameter	Specification
Weight	55g
Pitch Angle accuracy (-90°~+90°)	<0.1°
Roll Angle accuracy (-180°~+180°)	<0.1°
Course angle (-180°~+180°)	--°

Gyroscope Specifications

Parameter	Specification
Measuring range (customizable)	±500°/s
Bias stability (@Allan variance)	0.5°/h
Random walk	0.15°/√h
Bias repeatability	10°/h
Bias acceleration sensitivity	1°/h/g
Scale factor nonlinearity (room temperature)	200ppm
Scale factor repeatability (room temperature)	200ppm
Cross coupling	0.1%
Bandwidth	250Hz

Accelerometer Specifications

Parameter	Specification
Measuring range (can be customized)	±30g
Bias stability (Allan Variance @25°C)	50μg
Bias temperature coefficient (@-45°C～+85°C)	10mg
Random walk	0.2m/s/√h
Zero bias repeatability	0.5
Scaling factor repeatability	300
Scale factor non-linearity	100
Bandwidth	100

Environmental Specifications

Parameter	Specification
Operating temperature	-45°C～+85°C
Storage temperature	-55°C～+105°C
Vibration	10~2000Hz, 6.06g
Impact	5000g, 0.1ms
