Name: KSGYR111M-S Digital MEMS Gyro Chip ±400°/s SPI I2C
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR111M-S
Price: 431.00 USD
Availability: InStock

Dom > produkty > Elektroniczny czujnik giroskopu >

KSGYR111M-S Digital MEMS Gyro Chip ±400°/s SPI I2C

Digital MEMS gyro chip SPI I2C

MEMS gyro sensor ±400°/s

Fluid level meter gyro chip

Place of Origin:

CHINA

Nazwa handlowa:

KACISE

Orzecznictwo:

Model Number:

KSGYR111M-S

Skontaktuj się z nami

Poproś o wycenę

KSGYR111M-S Digital MEMS Gyro Chip ±400°/s SPI I2C

Szczegóły produktu

Supply voltage VDDM:

+2.7V~+3.6V

Bias ZRL:

±1°/s (0 LSB Typ)

Rate range I:

±400°/s

Non-linearity NI:

±0.5%FS

Cross-axis sensitivity CS:

±5%

Podkreślić:

Digital MEMS gyro chip SPI I2C

MEMS gyro sensor ±400°/s

Fluid level meter gyro chip

Warunki płatności i wysyłki

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Supply Ability

1000 Piece/Pieces per Week negotiable

ZAŁĄCZONE PRODUKTY

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

Najlepszą cenę

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

Najlepszą cenę

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

Najlepszą cenę

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

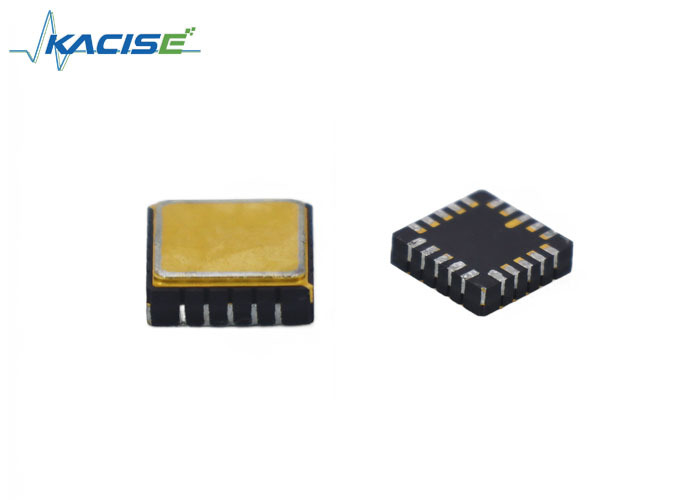

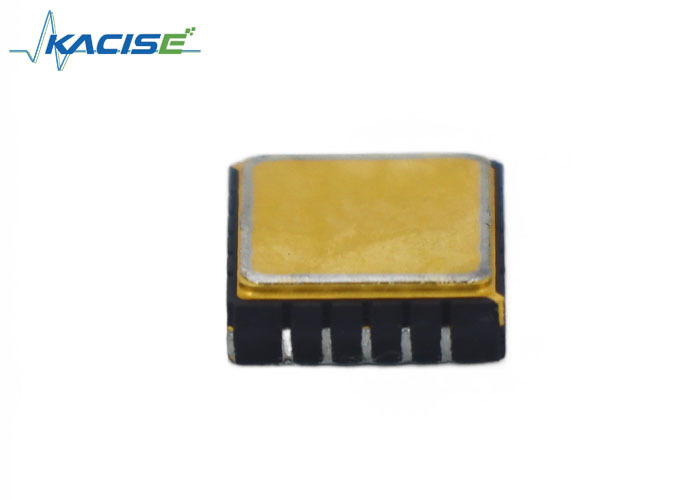

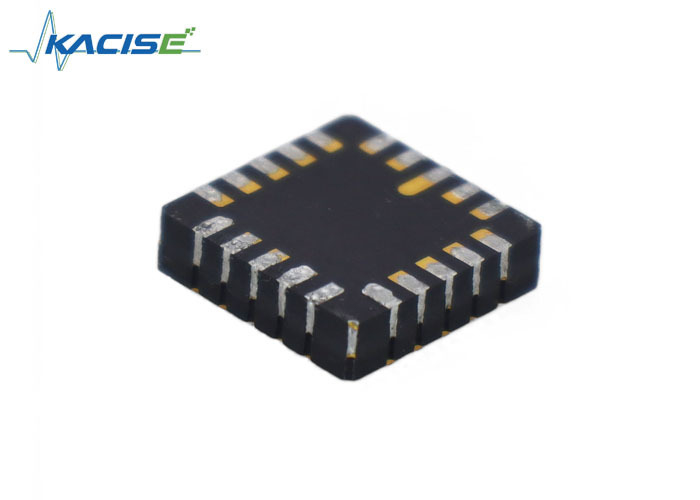

KSGYR111M-S Digital Quartz MEMS GYRO Chip

Key Attributes

Attribute	Value
Supply voltage VDDM	+2.7V~+3.6V
Bias ZRL	±1°/s (0 LSB Typ)
Rate range I	±400°/s
Non-linearity NI	±0.5%FS
Cross-axis sensitivity CS	±5%

Product Overview

The KSGYR111M-S Digital Quartz MEMS GYRO Chip features superior bias output stability and low noise. This digital quartz gyroscope is based on quartz MEMS technology and manufactured using semiconductor processing techniques.

Key Features

Excellent bias temperature coefficient 0.0016 (°/s)/°C Typ
Low angle random walk 0.065 °/√h Typ
Integrated user-selectable digital filter and detuning frequency
SPI or I2C serial interface
Angular rate output (16 bits or 24 bits resolution)
Operating temperature -20°C to +80°C
Embedded temperature sensor
Low current consumption 900 μA Typ

Applications

Anti-vibration and attitude control for industrial applications
Motion detection for human machine interface
Wearable devices
Medical motion detection equipment
Optical, photography and platform stabilization
Inertial measurement instruments

Technical Specifications

Power Supply Parameters
Supply voltage VDDM	+2.7V~+3.6V
Supply voltage for interface VDDI	+1.65V~+3.6V
Product Performance
Scale factor So	70 LSB/(°/s) ±2%	16 bits, Ta=+25℃
	17920 LSB/(°/s) ±2%	24 bits, Ta=+25℃
Scale factor variation over temperature Spt	±3%	VDDM=3V, Ta=+25℃ reference
Bias ZRL	±1°/s (0 LSB Typ)	Ta=+25℃
Bias variation over temperature A ZRLta	±0.25°/h	-10℃~+50℃, Ta=+25℃ reference
Bias variation over temperature B ZRLtb	±1°/h	-20℃~+80℃, Ta=+25℃ reference
Bias temperature coefficient ZRLs	0.0016(°/s)/℃ (Typ)	VDDM = 3V, Average of absolute value, ΔT=1℃
Rate range I	±400°/s
Non-linearity NI	±0.5%FS	Ta=+25℃
Cross-axis sensitivity CS	±5%	Ta=+25℃
Current consumption Iop1	900μA Typ
Sleep current Iop3	3μA Typ
Noise density Nd	0.0015 (°/s)/√Hz	@ 10Hz, LPF default setting
Angle random walk N	0.065 °/√h
Environmental Specifications
Operating temperature TOPR	-20℃～+80℃
Storage temperature TSTG	-40℃～+85℃

Dimensions

Unit: mm
