Name: KSGYR104F Fibre Optic Gyroscope ±500°/s 70×70×32mm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR104F
Price: 431.00 USD
Availability: InStock

Dom > produkty > Elektroniczny czujnik giroskopu >

KSGYR104F Fibre Optic Gyroscope ±500°/s 70×70×32mm

Fibre Optic Gyroscope ±500°/s

Electronic Gyroscope Sensor 70×70×32mm

Fibre Optic Gyroscope with warranty

Place of Origin:

china

Nazwa handlowa:

kacise

Orzecznictwo:

Model Number:

KSGYR104F

Skontaktuj się z nami

Poproś o wycenę

KSGYR104F Fibre Optic Gyroscope ±500°/s 70×70×32mm

Szczegóły produktu

Supply voltage:

+5V

Dimensions:

70×70×32 mm

Start time:

Dynamic range:

±500 °/s

Operate temperature:

-40°C～+70°C

Storage temperature:

-45°C～+80°C

Podkreślić:

Fibre Optic Gyroscope ±500°/s

Electronic Gyroscope Sensor 70×70×32mm

Fibre Optic Gyroscope with warranty

Warunki płatności i wysyłki

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

ZAŁĄCZONE PRODUKTY

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

Najlepszą cenę

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

Najlepszą cenę

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

Najlepszą cenę

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

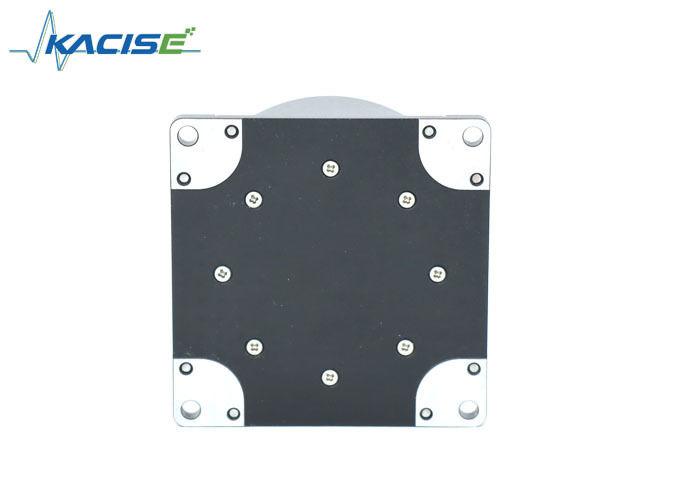

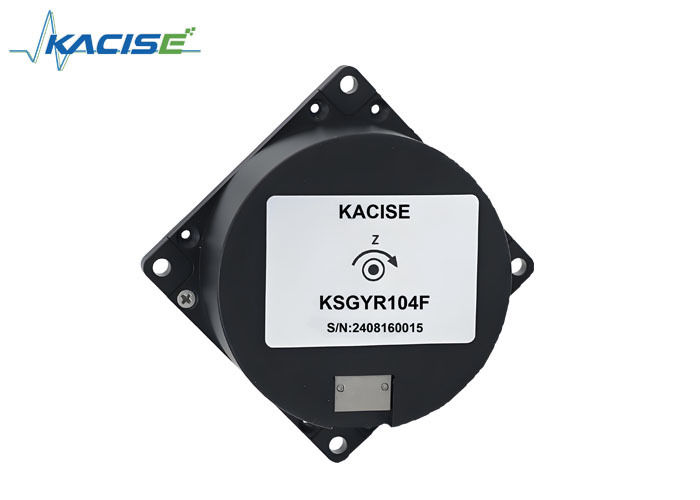

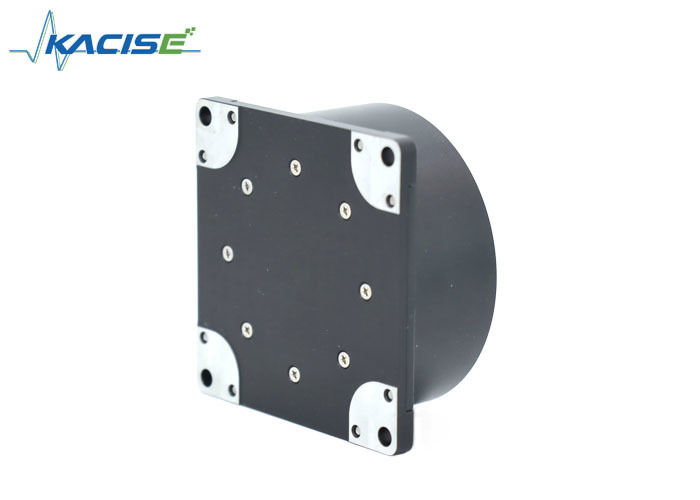

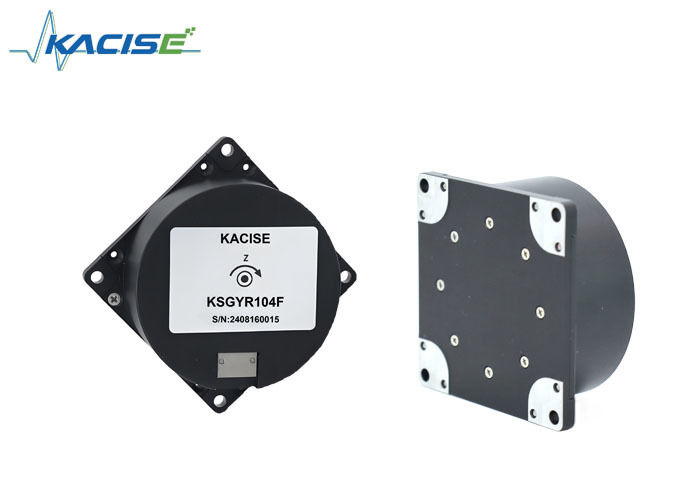

KSGYR104F Fibre Optic Gyroscope

Product Overview

The KSGYR104F is an inertial angle rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along the sensitive axis. It utilizes a digital closed-loop detection circuit to extract optical path differences caused by external angular velocity, providing precise real-time angular velocity signal detection.

Key Attributes

Attribute	Value
Supply voltage	+5V
Dimensions	70×70×32 mm
Start time	5s
Dynamic range	±500 °/s
Operate temperature	-40°C～+70°C
Storage temperature	-45°C～+80°C

Product Features

Accurately measures angular speed of moving objects
All solid state design with no rotating or friction parts
Extended operational lifespan
Large dynamic range for versatile applications
Instant start capability
Simple, robust structure

Applications

Gimbal camera stabilization
Flight control platforms
Inertial navigation systems
Inertial monitoring systems
Optical and photography platform stabilization
Inertial measurement units

Technical Specifications

Parameter	KSGYR104F H	KSGYR104F M	KSGYR104F L
Power supply parameter
Supply voltage	+5V	+5V	+5V
Product performance
Dimensions	70×70×32 mm	70×70×32 mm	70×70×32 mm
Start time	5s	5s	5s
Bias (10s smooth, fix temperature)	≤0.03(10s) °/h ≤0.01(100s) °/h	≤0.05 °/h	≤0.3 °/h
Bias stability (10s smooth -45°C~+70°C)	≤0.1 °/h	≤0.15 °/h	≤0.5 °/h
Bias repeatability	≤0.03°/h	≤0.05°/h	≤0.3°/h
Random walk	≤0.005°/h1/2	≤0.01°/h1/2	≤0.02°/h1/2
Scale factor non-linearity	≤10 ppm	≤20 ppm	≤50 ppm
Scale factor repeatability	≤10 ppm	≤20 ppm	≤50 ppm
Dynamic range	±500 °/s	±500 °/s	±500 °/s
Power dissipation (full temperature)	<4W	<4W	<4W
Weight	<290g	<290g	<290g
Environment
Operate temperature	-40°C～+70°C	-40°C～+70°C	-40°C～+70°C
Storage temperature	-45°C～+80°C	-45°C～+80°C	-45°C～+80°C
