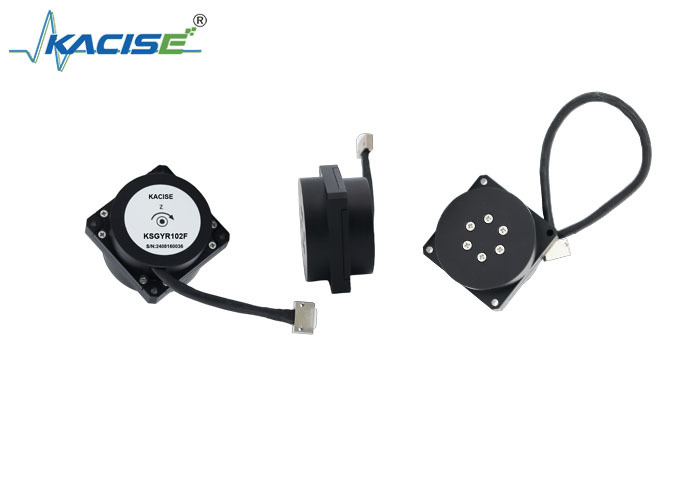

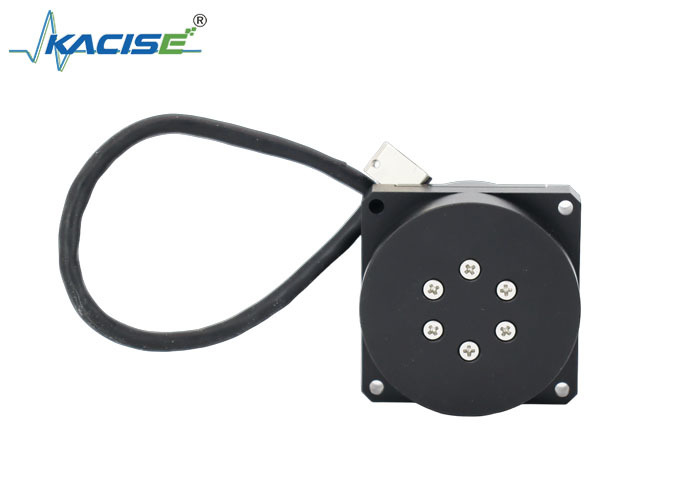

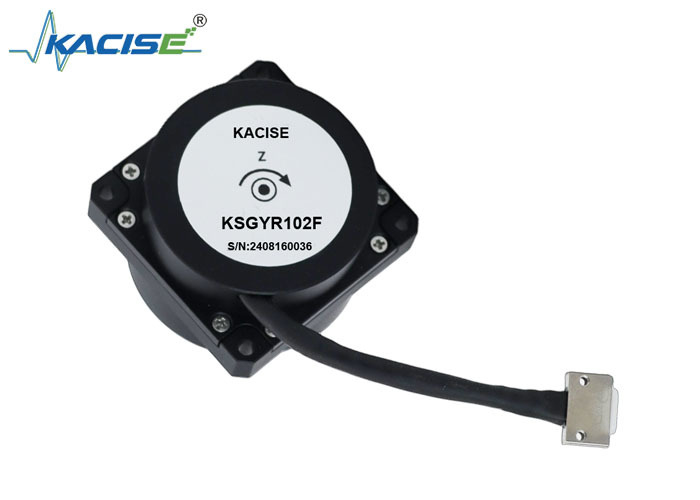

Name: KSGYR102F Fibre Optic Gyroscope 50x50x36mm +5V
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR102F
Price: 431.00 USD
Availability: InStock

Dom > produkty > Elektroniczny czujnik giroskopu >

KSGYR102F Fibre Optic Gyroscope 50x50x36mm +5V

Fibre Optic Gyroscope 50x50x36mm

Fibre Optic Gyroscope +5V

Fluid Level Meter with warranty

Place of Origin:

CHINA

Nazwa handlowa:

KACISE

Orzecznictwo:

Model Number:

KSGYR102F

Skontaktuj się z nami

Poproś o wycenę

KSGYR102F Fibre Optic Gyroscope 50x50x36mm +5V

Szczegóły produktu

Supply voltage:

+5 V

Dimensions:

50×50×36 mm

Start time:

5 s

Bias repeatability:

≤0.05 °/h

Operate temperature:

-45°C～+70°C

Podkreślić:

Fibre Optic Gyroscope 50x50x36mm

Fibre Optic Gyroscope +5V

Fluid Level Meter with warranty

Warunki płatności i wysyłki

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

ZAŁĄCZONE PRODUKTY

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

Najlepszą cenę

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

Najlepszą cenę

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

Najlepszą cenę

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

KSGYR102F Fibre Optic Gyroscope 50x50x36mm +5V

Product Attributes

Attribute	Value
Supply voltage	+5 V
Dimensions	50×50×36 mm
Start time	5 s
Bias repeatability	≤0.05 °/h
Operate temperature	-45°C～+70°C

Product Description

The KSGYR102F is an inertial angle rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along its sensitive axis. It utilizes a digital closed-loop detection circuit to extract optical path differences caused by external angular velocity, providing precise real-time angular velocity signal detection.

Key Features

Accurately measures angular speed of moving objects
All solid-state design with no rotating or friction parts
Long operational lifespan
Large dynamic range
Instant start capability
Compact and lightweight design
Simple structural configuration

Applications

Gimbal camera stabilization
Flight control platforms
Inertial navigation systems
Inertial monitoring systems
Optical and photography platform stabilization
Inertial measurement units

Technical Specifications

Parameter	KSGYR102F H	KSGYR102F L
Power supply parameter
Supply voltage	+5 V	+5 V
Product performance
Dimensions	50×50×36 mm	50×50×36 mm
Start time	5 s	5 s
Bias (10s smooth, fix temperature)	≤0.1 °/h	≤0.3 °/h
Bias stability (10s smooth -45°C~+70°C)	≤0.3 °/h	≤0.5 °/h
Bias repeatability	≤0.05 °/h	≤0.1 °/h
Random walk	≤0.01 °/h1/2	≤0.02 °/h1/2
Scale factor non-linearity	≤10 ppm	≤20 ppm
Scale factor repeatability	≤10 ppm	≤20 ppm
Dynamic range	±900 °/s	±900 °/s
Power dissipation (full temperature)	<4 W	<4 W
Weight	＜130 g	＜130 g
Environment
Operate temperature	-45°C～+70°C	-45°C～+70°C
Storage temperature	-50°C～+80°C	-50°C～+80°C
