Product Description:

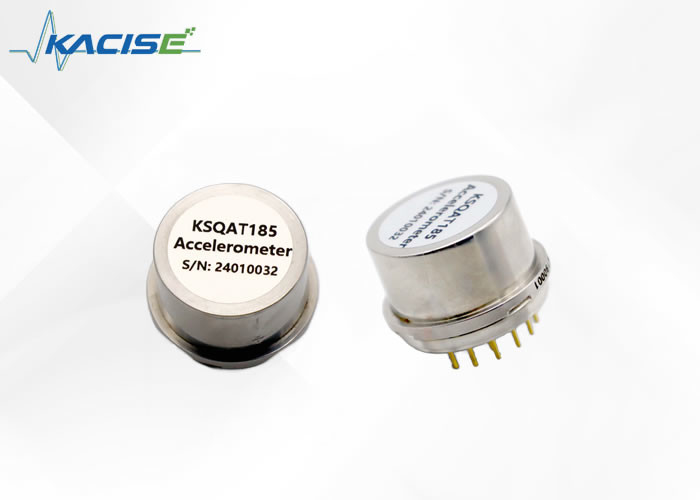

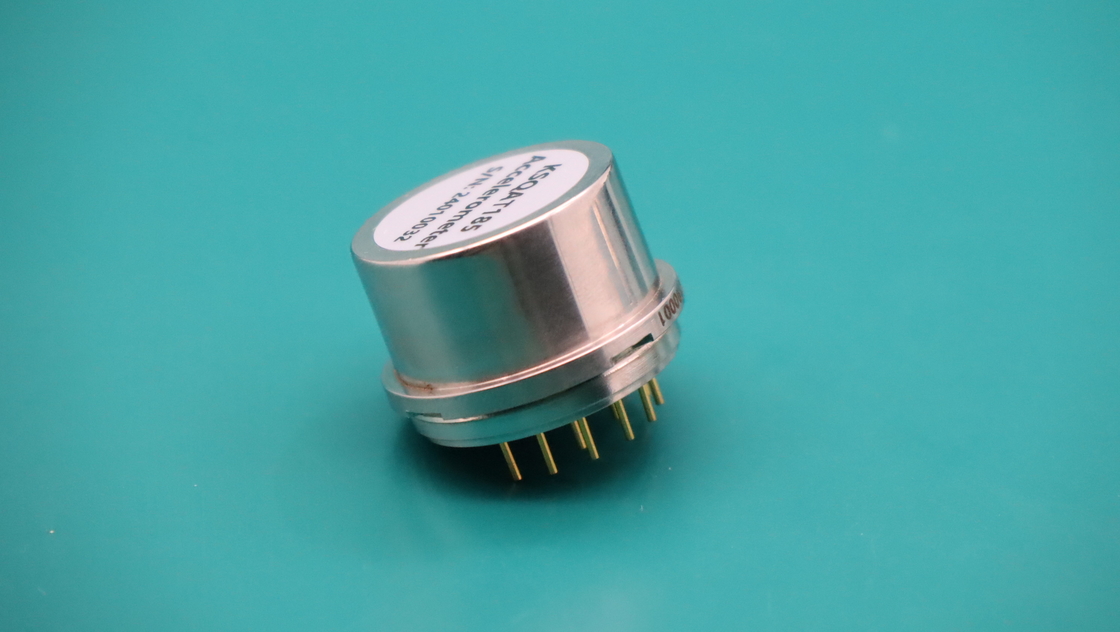

The Quartz Flexible Accelerometer is a highly precise instrument made up of a quartz glass flexible support and an advanced servo circuit that operates on the principle of inertia. When the carrier experiences acceleration, the output of the accelerometer is precisely proportional to the input acceleration it receives.
Our accelerometer sports a high output impedance in the form of current output, and its stability is preserved no matter what sampling resistance users opt for based on their requirements.
Currently, a variety of products with different specifications make up our series of Quartz Flexible Accelerometers. These types range from the high-precision μg KSQA07 accelerometer designed for satellite microgravity measurement to the low-cost and anti-harsh environment KSQA13 accelerometer, with dozens of options available. Our instrument finds ample use in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields, where it provides signals for navigation, guidance, control, leveling, monitoring, and other such systems.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
Technical Parameters:
| Parameter |
KSQAT160 |
KSQAT185 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±10g |
±10g |
| Bias |
≤20mg |
≤20mg |
| Temperature Sensitivity |
≤150μg/°C |
≤150μg/°C |
| Three-hour Stability(1σ) |
≤100μg |
≤150μg |
| Scale Factor |
2.3 ~ 3.5mA/g |
1.3 ~ 3.5mA/g |
| Temperature Sensitivity |
≤150ppm/°C |
≤300ppm/°C |
| Three-hour Stability(1σ) |
≤100ppm |
≤150ppm |

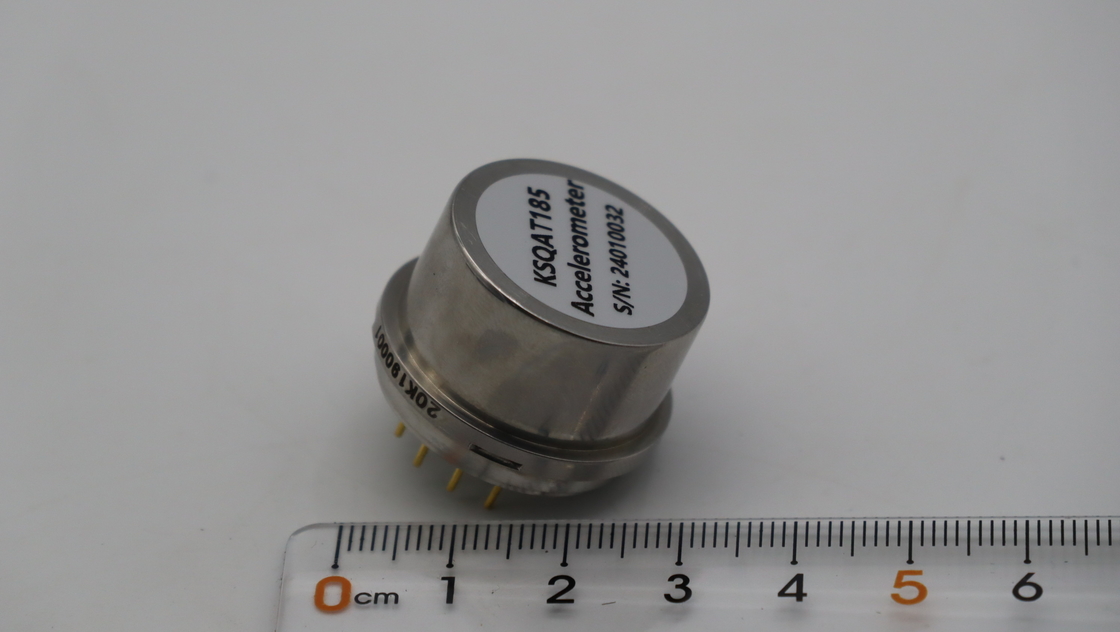

| Size |
Ø25×25mm |
Ø25×25mm |
| Weight |
≤60g |
≤60g |
| Environment |
| Operating Temperature |
-45°C~+160°C |
-45°C~+185°C |
| Storage temperature |
-55°C～+170°C |
-55°C～+190°C |
| Shock |
1000g |
| Vibration Peak Sine |
20g@10Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Our Accelerometer Sensor product technical support and services include:
- Assistance with installation and setup
- Troubleshooting and diagnostics
- Repair and replacement services
- Technical documentation and resources
Packing and Shipping:
Product Packaging:
The accelerometer sensor will be packaged in a sturdy cardboard box with cushioning material to prevent damage during transit. The box will also be labeled with the product name and any necessary handling instructions.
Shipping:
The product will be shipped via standard ground shipping unless expedited shipping is requested and paid for by the customer. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the package has been shipped.
