Product Description
Introduction

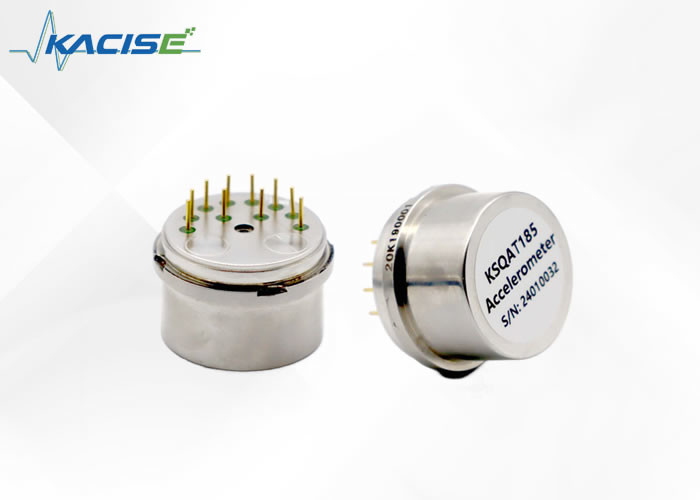

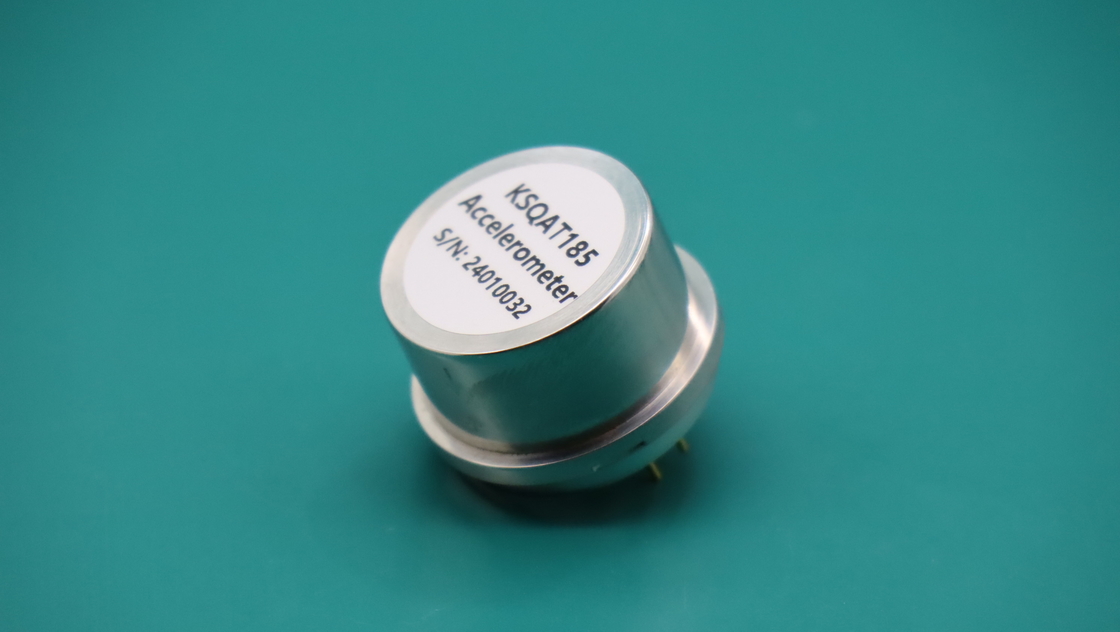

The Quartz flexible accelerometer is an accurate instrument that consists of quartz glass flexible support and advanced servo circuit technology, which is based on the principle of inertia. It provides an output that is proportional to the input acceleration when the carrier is subjected to acceleration.
The accelerometer has a high output impedance that is in the current output format. Users can select the sampling resistance based on their needs without affecting the system's stability.
Products
The Quartz flexible accelerometer has a series of products, which include a variety of types. These types range from the high-precision μg KSQA07 accelerometer, which is ideal for satellite microgravity measurement, to the low-cost, anti-harsh environment KSQA13 accelerometer.
There are dozens of these accelerometers available, and they are widely used in many fields, including aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and others. These accelerometers provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
Technical Parameters
| Parameter |
KSQAT160 |
KSQAT185 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±10g |
±10g |
| Bias |
≤20mg |
≤20mg |
| Temperature Sensitivity |
≤150μg/°C |
≤150μg/°C |
| Three-hour Stability(1σ) |
≤100μg |
≤150μg |
| Scale Factor |
2.3 ~ 3.5mA/g |
1.3 ~ 3.5mA/g |
| Temperature Sensitivity |
≤150ppm/°C |
≤300ppm/°C |
| Three-hour Stability(1σ) |
≤100ppm |
≤150ppm |

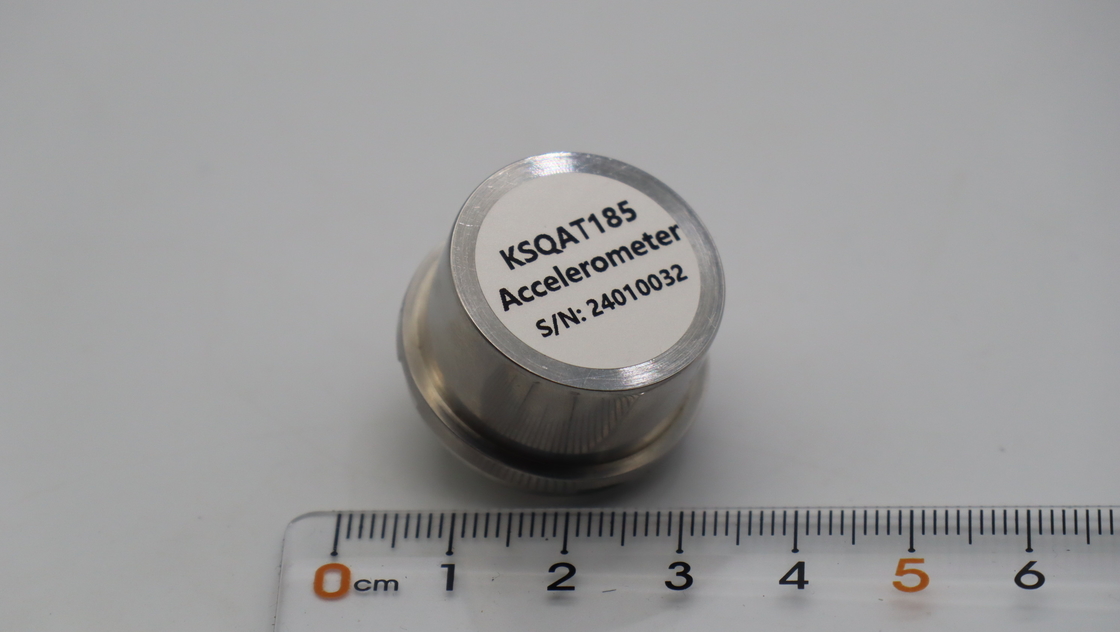

| Size |
Ø25×25mm |
Ø25×25mm |
| Weight |
≤60g |
≤60g |
| Environment |
| Operating Temperature |
-45°C~+160°C |
-45°C~+185°C |
| Storage temperature |
-55°C～+170°C |
-55°C～+190°C |
| Shock |
1000g |
| Vibration Peak Sine |
20g@10Hz ~ 2000Hz |
Dimensions
Applications
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services
Our Accelerometer Sensor product technical support and services include:
- Assistance with installation and setup
- Troubleshooting and diagnostics
- Repair and replacement services
- Technical documentation and resources
Packing and Shipping
The accelerometer sensor will be packaged in a sturdy cardboard box with cushioning material to prevent damage during transit. The box will also be labeled with the product name and any necessary handling instructions.
Shipping:
The product will be shipped via standard ground shipping unless expedited shipping is requested and paid for by the customer. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the package has been shipped.
