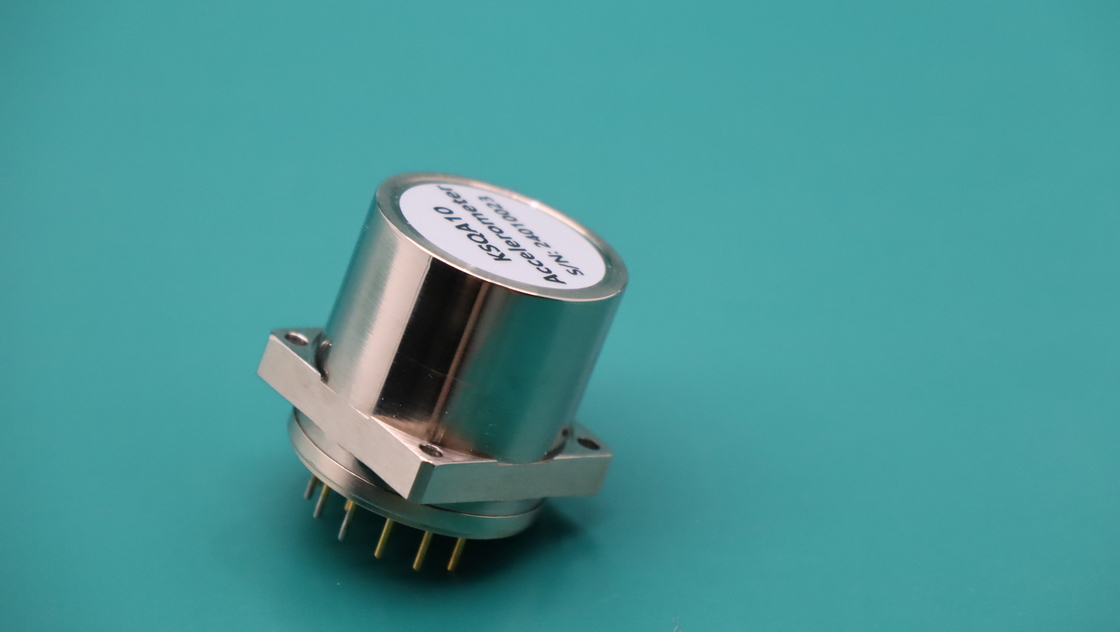

Product Description:
Our precision instrument, the Quartz Flexible Accelerometer, comprises of a quartz glass flexible support and advanced servo circuit based on the principle of inertia. As a result, when subjected to acceleration, the output of our accelerometer is precisely proportional to the input acceleration.
Our accelerometer has a current output form of high output impedance. Users can choose the sampling resistance according to their requirement without affecting the stability of the system.
Currently, we offer a series of products, which include types ranging from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. We have dozens of options available, which are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields. Our accelerometers provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
Summary:
The Quartz Flexible Accelerometer is a precision instrument that includes a flexible support made of quartz glass and an advanced servo circuit based on the principle of inertia. It offers a precise output that is proportional to the input acceleration. Our accelerometers come in a variety of options, ranging from high-precision μg KSQA07 accelerometers for satellite microgravity measurement to low-cost, anti-harsh environment KSQA13 accelerometers. They are widely used in various fields including aerospace, aviation, navigation, ship, and geotechnical engineering.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range

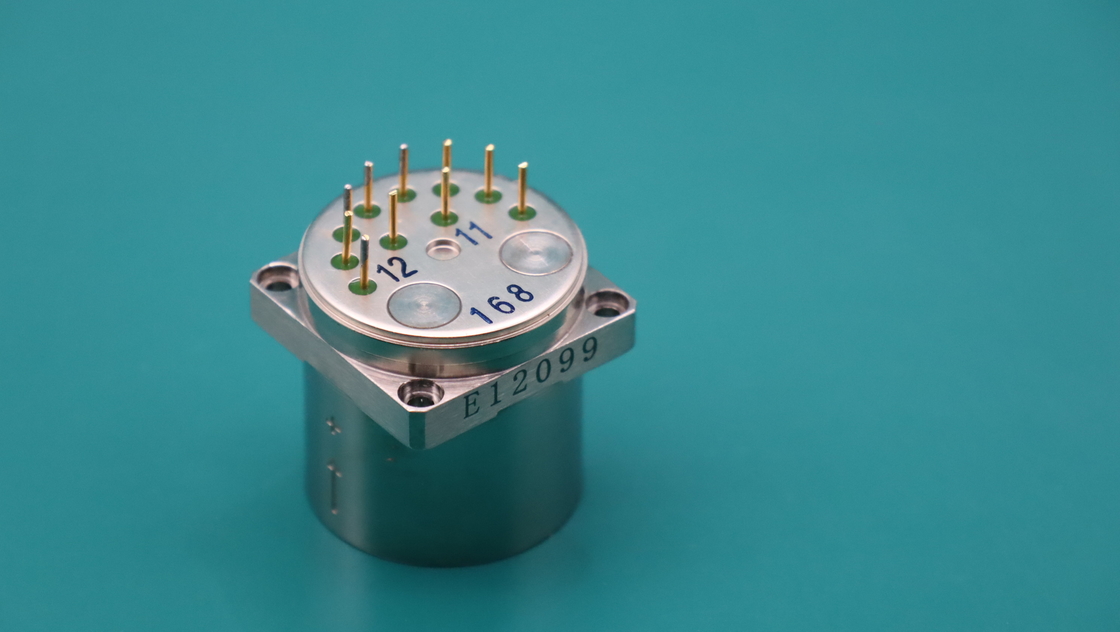

● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter | KSQA10A | KSQA10B |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±20g | ±20g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤30μg/°C | ≤50μg/°C |
| One-month Composite Repeatability (1σ) | ≤30μg | ≤50μg |
| Scale Factor | 1.2 ~ 1.6mA/g | 1.2 ~ 1.6mA/g |
| Temperature Sensitivity | ≤30ppm/°C | ≤80ppm/°C |
| One-month Composite Repeatability (1σ) | ≤30ppm | ≤50ppm |
| Linearity | ≤15μg/g2 | ≤40μg/g2 |
| Threshold | <5μg | <5μg |
| Resolution | <5μg | <5μg |
| Size | Ø25.4×32mm | Ø25.4×32mm |

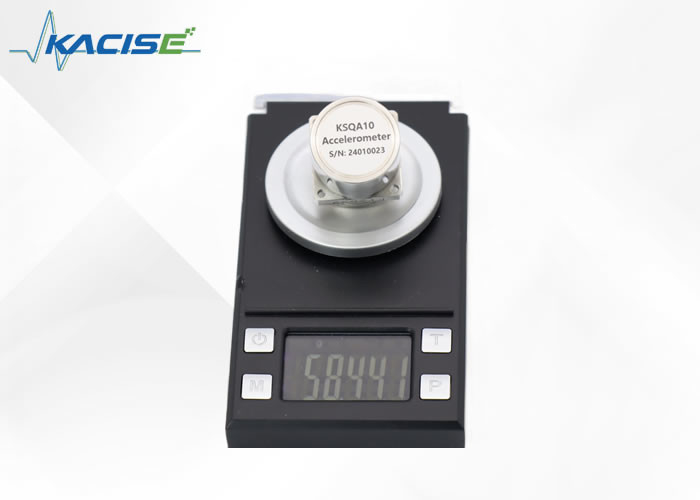

| Weight | ≤70g | ≤70g |
| Environment |
| Operating Temperature | -45°C~+80°C |
| Storage temperature | -55°C～+80°C |
| Shock | 100g |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
