Product Description:

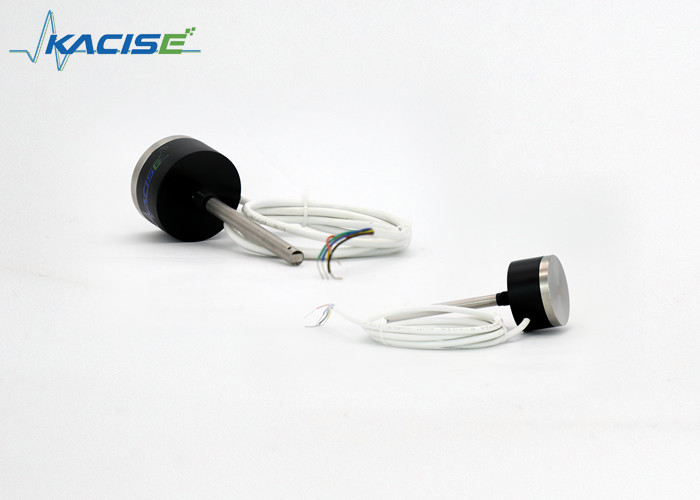

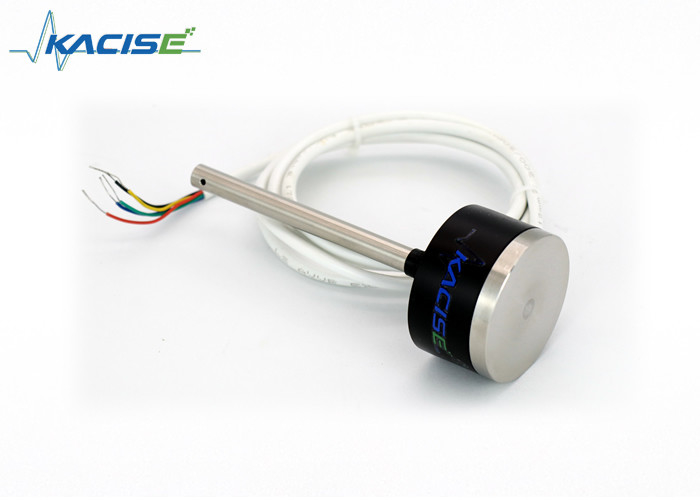

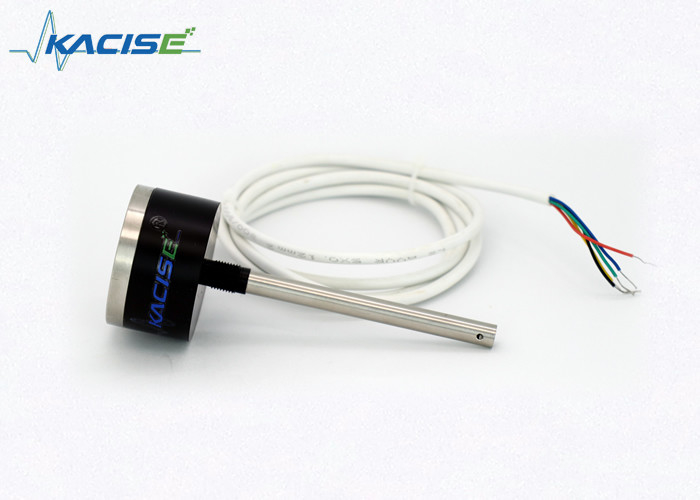

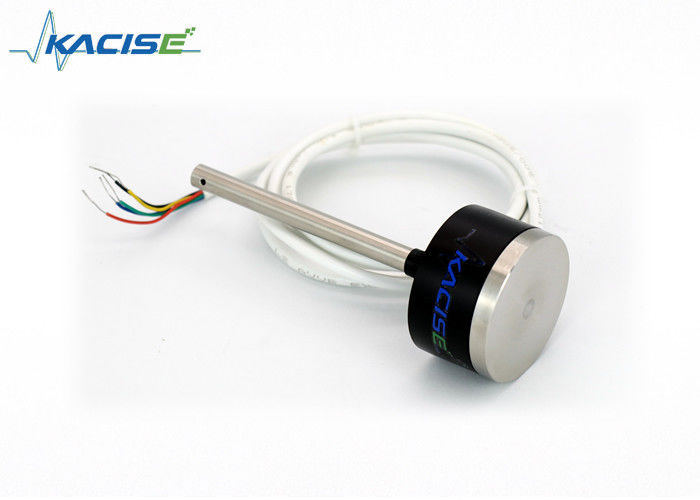

The KSLV606 capacitive level sensor produced by Kacise is a small range level sensor, can be used to measure a variety of liquids, no moving parts inside, not affected by steam. It also has a good physical filtering effect for liquid fluctuations, making the measurement result fluctuate less, and the use of multiple capacitor detection plate technology, the maximum measurement range is greatly improved, and more flexible, and can help troubleshoot sensor faults.
The KSLV606 sensor has the advantages of miniaturization, long-term reliability, high temperature resistance, high sensitivity, good linearity, customizable length, customizable output, customizable protection level, and customizable corrosion resistance process. The output is RS485, two-wire 4-20mA, voltage output, switching output, RS485 to 4G, RS485 to Bluetooth and other output modes. Widely used in water treatment, paper making, petrochemical, metallurgy, electric power, pharmaceutical.
Features:
● The MODBUS RTU protocol is easy to integrate.
● Multiple output types to choose from.
● Customizable output.
● Customizable protection level.
● Corrosion resistance process can be customized.
● No moving parts, reliable and stable work.
● Can measure any liquid medium.
● Can measure the level of fluctuating liquid.
Technical Specifications:
| Range |
5cm-20cm |
| Accuracy |
±2% |
| Capacitance measurement range |
10PF~500PF |
| Protection level |
IP65; IP68(Can customize) |
| Pressure range |
Can customize(Default normal pressure) |
| Probe temperature resistance |
-200°C~200°C |
| Ambient temperature |
-40°C~85°C |
| Output |
RS485; 4-20mA; 0-10V; Switch(Can customize) |
| Power supply voltage |
5~36V DC; 12~36V DC(analog output) |
| Level sensor material |
304 Stainless Steel; PVC; PTFE |
| Long-term stability |
<0.1%FS/Year |
| Temperature drift |
<0.01%FS/°C |
Dimension:
D=48mm, H=29mm, d=M10*1mm(Mounting thread), L=Range, D1=8mm
Voltage output wiring:
Red: VCC Black: GND Yellow: 0-5V Blue: RS485A Green: RS485B
Current output wiring:
Red: Loop+ Loop: Loop- Yellow: Null Blue: RS485A Green: RS485B
485 Output cable wiring:
Red: VCC Loop: GND Yellow: Null Blue: RS485A Green: RS485B
For other and customized wiring methods, see the label on the sensor, or consult the after-sales personnel.
Applications:
The Kacise KSLV606 is a versatile product that can be used in many different scenarios. It has multiple output options including RS485, 4-20mA, 0-10V, and Switch (Can Customize). This makes it easy to integrate with different systems and devices. The device also has a temperature drift of <0.01%FS/°C and a long-term stability of <0.1%FS/Year, ensuring accurate and reliable measurements over time.
The pressure range of the Kacise KSLV606 can be customized according to the specific needs of the application. By default, it has a normal pressure range. Some of the common scenarios where this product can be used include water treatment plants, chemical processing plants, food and beverage production facilities, and oil and gas refineries.
Support and Services:
Our support includes detailed product documentation, frequently asked questions (FAQs), and troubleshooting guides designed to help you resolve common issues quickly. For more complex or specific concerns, our technical support team is ready to provide personalized assistance.
Level meter products are equipped with a range of technical support and services to ensure their normal operation and service life. Our team of experts can assist with product installation, operation and maintenance.
We also offer troubleshooting services to help identify and resolve any issues that may arise.
Packing and Shipping:
Product Packaging:
- 1 Fluid Level Meter
- User Manual
- Calibration Certificate
Shipping Information:
Shipping Method: Standard Shipping
