Product Description:

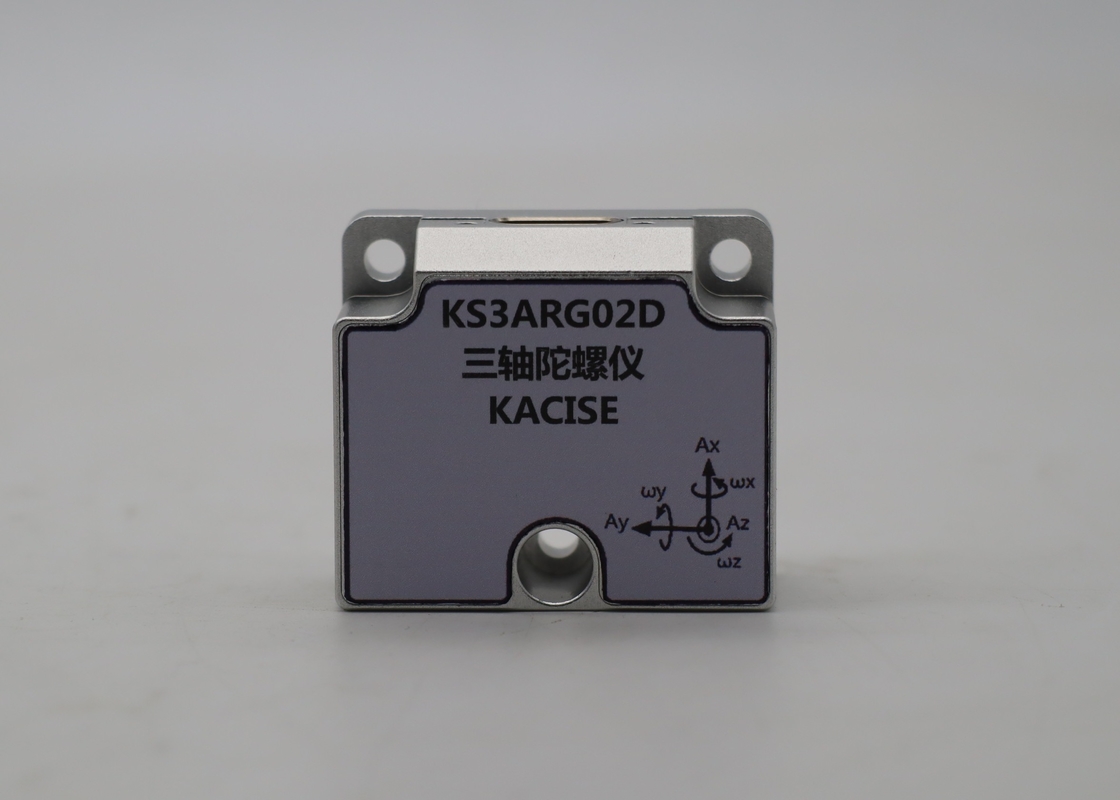

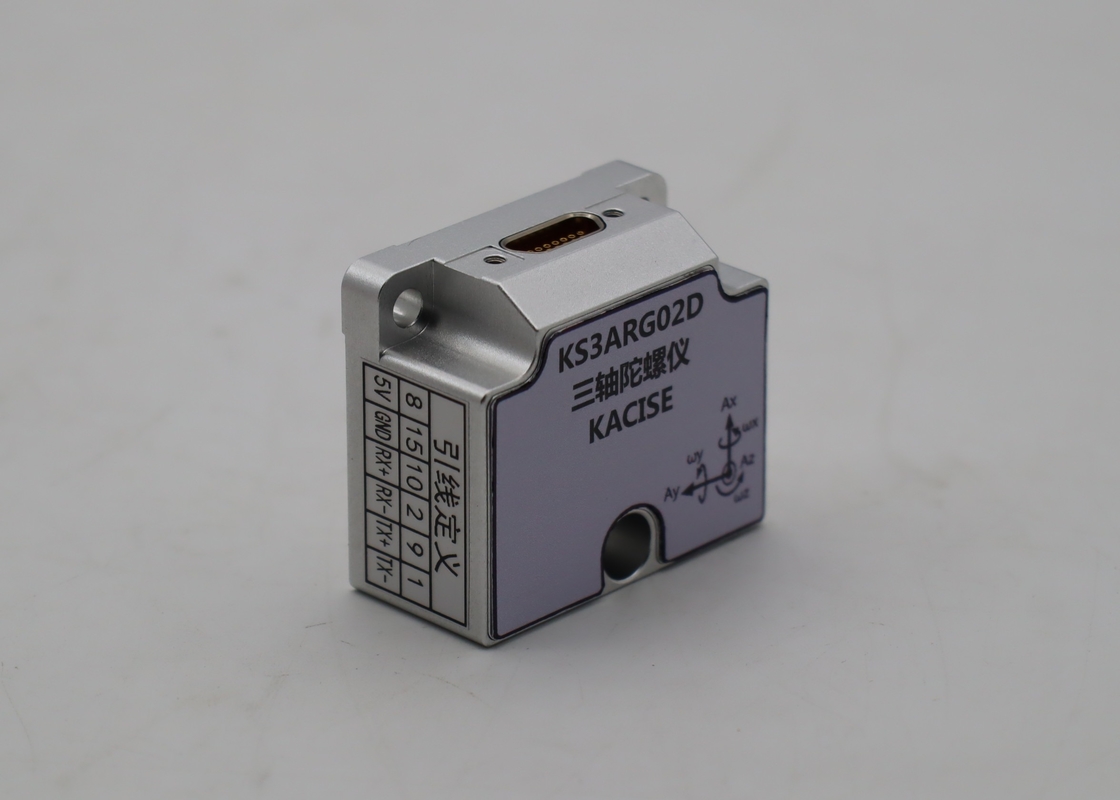

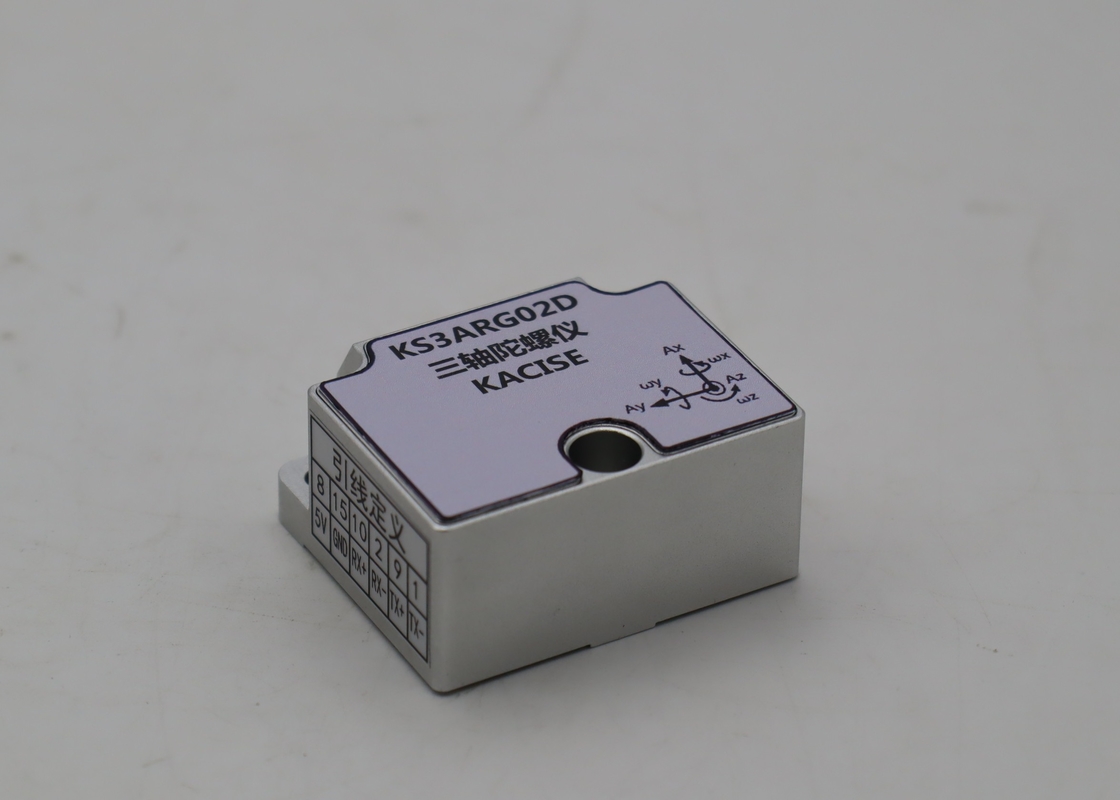

The KS3ARG-02D series introduces a solid-state angular rate sensor (gyro) designed for precision angular rate measurement. Utilizing micromechanoelectronic system (MEMS) technology chips manufactured through the bipolar metal oxide semiconductor (BIMOS) production process and employing spherical grid arrangement of current carrier welding technology, this sensor ensures high reliability and package ruggedness. Featuring a Self-Test function for in-machine detection (BIT), zero bias calibration, temperature drift compensation, wide measurement range, wide bandwidth, non-linear correction, and more, it stands out with its wide operating temperature range, compact size, light weight, and high impact acceleration resistance.
Functioning as an essential inertial measurement component, this product exhibits versatility across a spectrum of technical applications. Its usage spans intelligent automotive systems, geological exploration endeavors, robotic technologies, missile guidance and control systems, aircraft stability control mechanisms, strapdown inertial navigation solutions, antenna stabilization tasks, cameras, and other related fields.
Features:
- Small size
- Light weight
- Wide bandwidth
- Wide measurement range
- Temperature drift compensation
- Bias calibration
- High impact acceleration resistance
-
Technical Parameters:
| Performance parameter |
KS3ARG-02D |
| gyro |
range
(deg/s)
|
±500(triaxial) |
| Zero-bias(deg/s) |
≤±0.1(In 500°/s) |
| Zero-bias stability(deg/h) |
≤0.5allan deviation |
| Zero-bias repeatability(deg/s) |
≤0.05 |
| nonlinearity(%FR) |
≤0.05 |
| Random walk(°/√h) |
0.15 |
| Mean time between failures(Kh MTBF) |
10 |
| Interface characteristic |
power(V) |
DC5 |
| power dissipation(W @5V DC) |
≤1 |
| electrical interface |
RS422 |
| data updating rate(can set) |
2000(Hz@460800) |
| operating environment |
operating temperature(°C) |
-40~+80 |
| storage temperature(°C) |
-55~+85 |
| Vibration(g @ 20~2000 Hz) |
6.06 |
| Shock(g , 0.1 ms, 1/2 Sine) |
5000 |
| physical property |
Size(mm) |
45×39×20 |
| Weight(g) |
≤60 |
Dimension figure
