Product Description:

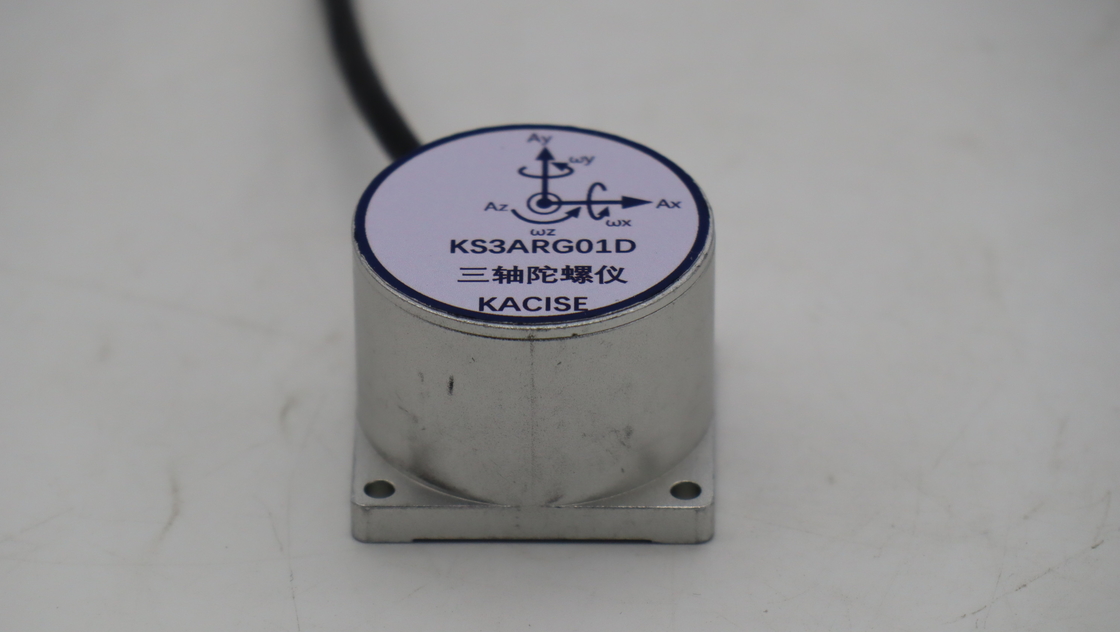

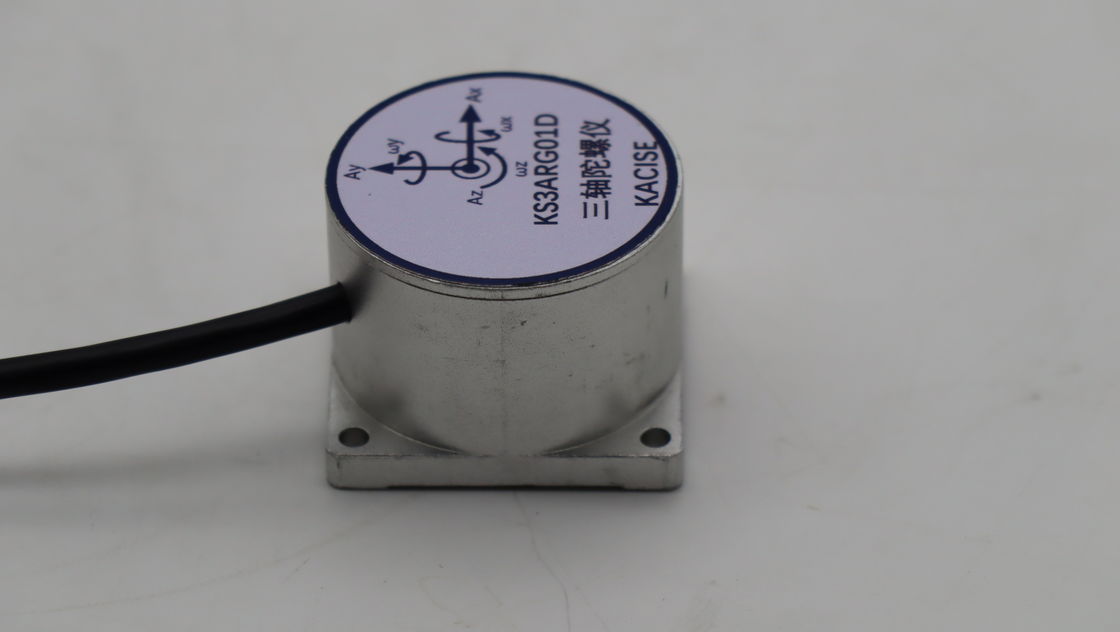

KS3ARG-01D is a versatile three-axis digital gyro with high performance, small size and high overload resistance, which can be used for accurate navigation, control and dynamic measurement of weapons. This series of products adopts highly stable and highly reliable MEMS inertial devices, which can accurately measure the angular velocity information of the moving carrier in harsh environments.
With an expansive operational temperature range, wide bandwidth, diminutive size, rapid startup, and high precision, the KS3ARG-01D exhibits key characteristics ideal for various applications. Its utility extends to weapon precision guidance, engineering equipment control, platform stabilization, pipeline robotics, underwater vehicles, and other sophisticated systems.
Features:
● High stability
● High precision
● Analog and digital outputs are optional
● Wide range
● Fast start
Technical Parameters:
| Performance parameter |
KS3ARG-01D |
| range(°/s) |
±300(options) |
| Bias stability(deg/h,allan deviation) |
≤12 |
| Bias repeatability(deg/s) |
≤0.15 |
| Nonlinearity(%F.R) |
≤0.1 |
| Resolution(deg/s) |
≤0.05 |
| Bandwidth(Hz) |
≥80 |
| Cross coupling(%) |
≤1 |
| Starting time(s) |
≤1 |
| Interface characteristic |
Power supply(V) |
5V±5% |
| Electrical interface |
RS422 |
| Data update rate (optional)) |
400(Hz@460800) |
| Operating environment |
Operating temperature(°C) |
-40~+85 |
| Tolerated acceleration(g) |
10000(0.1ms) |
|
Physical property
|
Size(mm) |
Φ39.5×28.5 |
| Weight(g) |
≤100 |
Dimension figure
