Product Description:

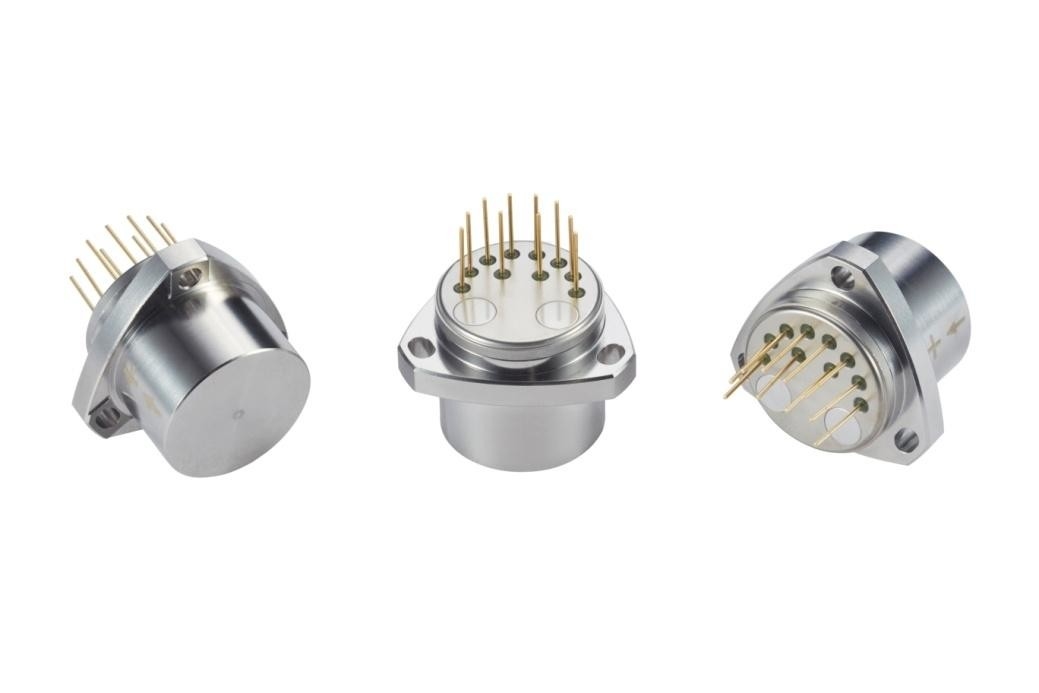

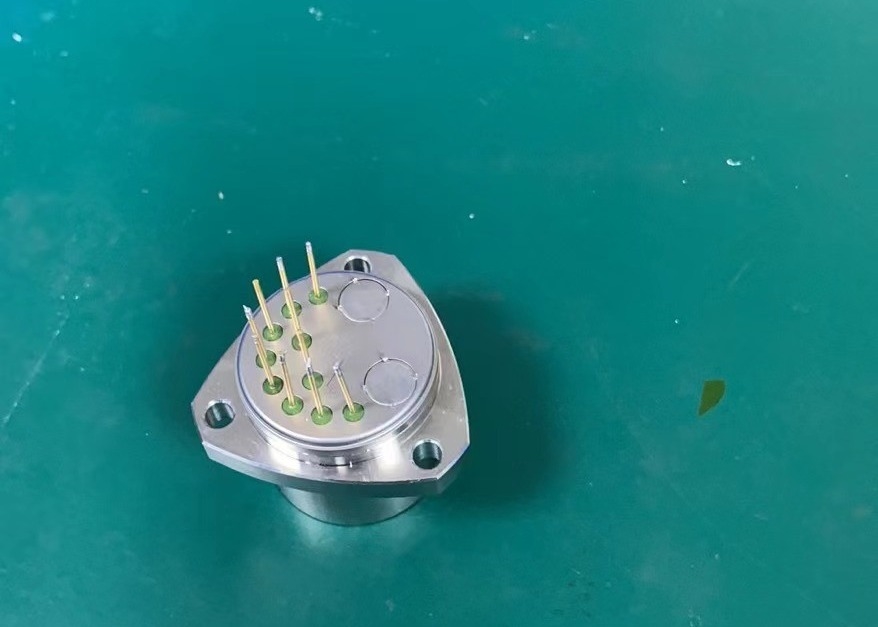

KSJB5 series quartz flexible accelerometer is a medium-precision sensor designed with a distinctive compact form factor. It excels in long-term stability, repeatability, dynamic response performance, robust resistance to vibration and shock, and high reliability. This adaptable sensor can be used for both static and dynamic testing and functions as a standard vibration and inclination sensor.
The product is distinguished by its unique structural design and specialized circuit. It ensures that the output current corresponds linearly with the applied force or acceleration. Users have the flexibility to achieve high-precision output by calculating and selecting the appropriate sampling resistance. Furthermore, the product comes equipped with an integrated temperature sensor, facilitating compensation for offset values and scale factors to mitigate the impact of ambient temperature variations, all according to user preferences.
1. Outline size and pin definition of JB5-A
2. Outline size and pin definition of JB5-B
3. Outline size and pin definition of JB5-C
Pin definition:
1, Signal output
2, air
3, power -15V
4, power +15V
5, power and signal ground
6, 7, 8, empty
9, -9V or pt1000
10, +9V or pt1000
Technical Parameters:
| Number |
Parameters |
KSJB5-01 |
KSJB5-02 |
KSJB5-03 |
| 1 |
Scope |
±50g |
±50g |
±50g |
| 2 |
resolution ratio |
＜5µg |
＜5µg |
＜5µg |
| 3 |
deviation value K0/K1 |
＜5mg |
＜7mg |
＜10mg |
| 4 |
scale factor K1 |
1.1～1.3 mA/g |
1.1～1.3 mA/g |
1.1～1.3 mA/g |
| 5 |
Second order nonlinear coefficient K2 |
≤±20μg /g2 |
≤±20μg /g2 |
≤±20μg /g2 |
| 6 |
deviation value synthesis repeatability σK0 (1σ,one month) |
＜30µg |
＜50µg |
＜80µg |
| 7 |
Scale factor integrated repeatability σK1/K1 (1σ,one month) |
＜50 ppm |
＜80 ppm |
＜100 ppm |
| 8 |
Comprehensive repeatability of nonlinear coefficients K2/K1(1σ,one month) |
≤±20 μg /g2 |
≤±20 μg /g2 |
≤±20 μg /g2 |
| 9 |
Comprehensive repeatability of nonlinear coefficients K2/K1(1σ,one month) |
＜20µg/℃ |
＜30µg/℃ |
＜40µg/℃ |
| 10 |
deviation value Temperature coefficient(The mean value of the whole temperature zone) |
＜40ppm |
＜50ppm |
＜80ppm |
| 11 |
Noise(The sampling resistance is 840Ω) |
≤5mv |
≤5mv |
≤5mv |
| 12 |
bandwidth |
＞300 Hz |
＞300 Hz |
＞300 Hz |
| 13 |
Vibration rectification error |
＜30µg/g2rms (50-500Hz) |
＜30µg/g2rms (50-500Hz) |
＜30µg/g2rms (50-500Hz) |
| 14 |
Random vibration |
20g@20-2000Hz |
20g@20-2000Hz |
20g@20-2000Hz |
| 15 |
strike |
250g 4.5ms |
250g 4.5ms |
250g 4.5ms |
| 16 |
installation error |
＜1500µrad |
＜1500µrad |
＜1500µrad |
| 17 |
Operating temperature range |
-55～96℃ |
-55～96℃ |
-55～96℃ |
| 18 |
Power supply |
±13 ~±18V |
±13 ~±18V |
±13 ~±18V |
| 19 |
Current consumption |
＜20 mA |
＜20 mA |
＜20 mA |
| 20 |
Temperature sensor |
User customizable |
User customizable |
User customizable |
| 21 |
weight |
＜55g |
＜55g |
＜55g |
| 22 |
Mounting diameter |
Ф25mm |
Ф25.3mm |
Ф25mm |
| 23 |
Shell materials |
300 series Stainless steel |
300 series Stainless steel |
300 series Stainless steel |
Note:
1. Scale factor is adjusted according to user requirements;
2.Temperature sensor: divided into AD590, pt1000,18B20,
3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;
4. Install according to user requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements.
|
Applications:
Kacise KSJB5 Accelerometer Sensor for Gravity Force and Vibration Detection
Kacise KSJB5 Accelerometer Sensor is designed to measure and monitor gravity force and vibration accurately. This sensor is certified with certificate of explosion-proof and CE, so it is a excellent choice for those who are looking for an reliable and safe device. The minimum order quantity is 1pcs, and each unit comes with individual box, all packed in standard packages or according to the customers’ requests. It takes 5-8 working days for delivery.
This device has 13V-18V power supply, and its bandwidth is greater than 300 Hz. The deviation value K0/K1 is less than 5mg. It can work in a wide operating temperature range from -55℃ to 96℃. With Kacise KSJB5 Accelerometer Sensor, the users can easily detect and monitor the gravity force and vibration.
Kacise KSJB5 Accelerometer Sensor supports multiple payment methods, such as T/T, Western Union, MoneyGram. With the large supply ability of 1000 pieces per week, there is no need to worry about the delivery time. It is a ideal choice for those who need a reliable and durable Gravity Force Monitor and Vibration Detection System.
