Name: Online Water Oil Content Monitor KWS-1000 Oil In Water Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-1000
Price: 250.00 USD
Availability: InStock

Dom > produkty > Czujnik jakości wody >

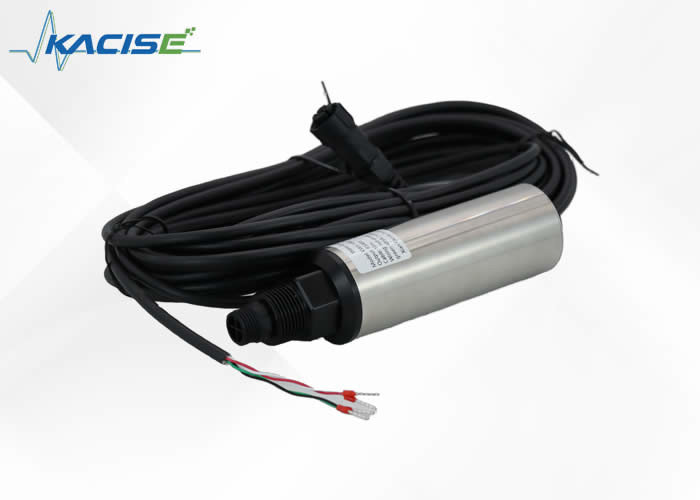

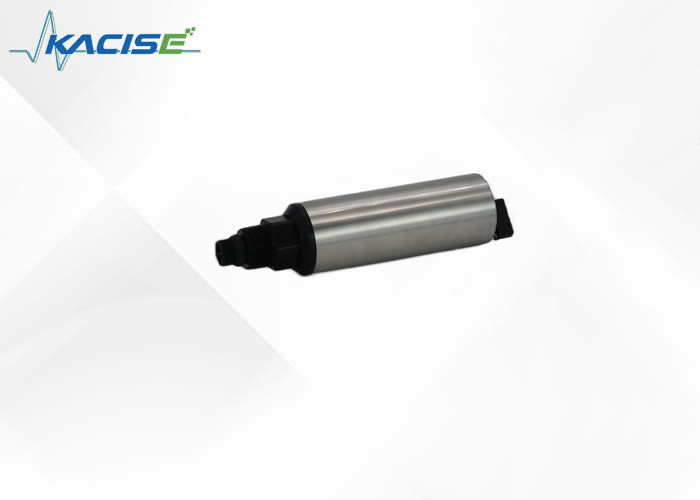

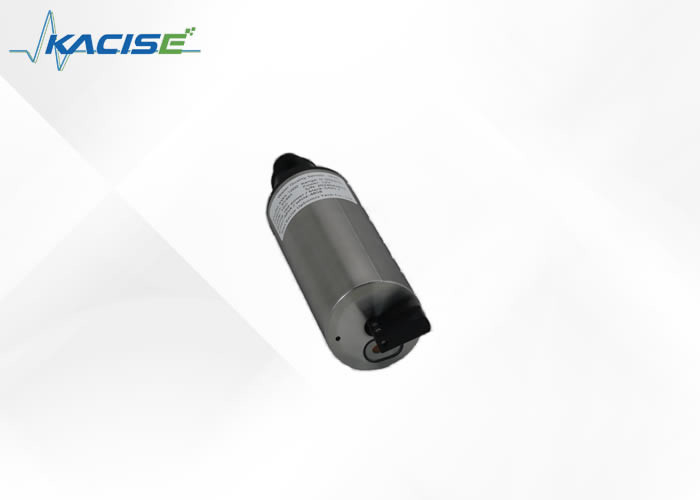

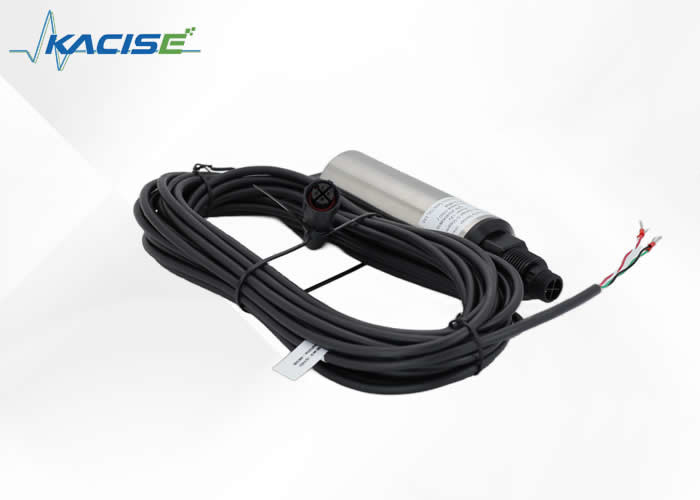

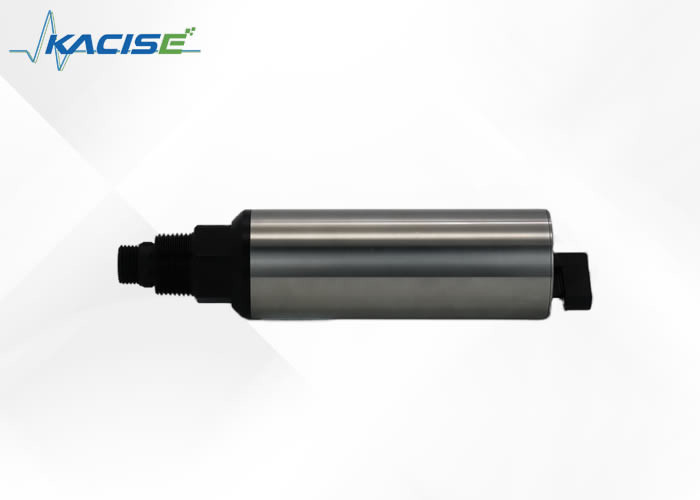

Online Water Oil Content Monitor KWS-1000 Oil In Water Sensor

RS485 Water Oil Content Monitor

MODBUS Oil In Water Sensor

Online Oil Content Monitor 0.01ppm

Place of Origin:

Shaanxi, China

Nazwa handlowa:

Kacise

Orzecznictwo:

Model Number:

KWS-1000

Skontaktuj się z nami

Poproś o wycenę

Online Water Oil Content Monitor KWS-1000 Oil In Water Sensor

Szczegóły produktu

Product name:

Water Quality Sensor KWS-1000 Online Oil-In-Water Sensor

Measuring Range:

0-50ppm or 0-0.40FLU

Principle:

fluorescence method

Resolution:

0.01ppm

Port:

Xi'an or other

Podkreślić:

RS485 Water Oil Content Monitor

MODBUS Oil In Water Sensor

Online Oil Content Monitor 0.01ppm

Warunki płatności i wysyłki

Minimum Order Quantity

1pcs

Cena

$900.00 - $1,500.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

100 Piece/Pieces per Month

ZAŁĄCZONE PRODUKTY

KCW102 Urządzenie do oczyszczania wody z falami elektromagnetycznymi o niskiej częstotliwości

Najlepszą cenę

KCW101 Częstotliwość - Modulowane urządzenia do oczyszczania wody fal elektromagnetycznych

Najlepszą cenę

KHM100 Automatyczny monitor jakości wody z ciężkich metali

Najlepszą cenę

KCW104 Wysoka częstotliwość wydajności - urządzenie do zamiatania

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

Online water oil content monitor

Introduction

Kacise online water sensor uses the principle of fuorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker, and can be monitored online in real time. The sensor has better repeatability and stability. Optional with an automatic cleaning brush, it eliminates air bubbles, reduces the effects of contamination on the measurement, makes the maintenance cycle longer, and maintains excellent stability for long-term online use. It can play an early warning role on oil pollution in water.

Principle

The oil content in the water body was monitored by ultraviolet fluorescence method, and the oil concentration in the water body was quantitatively analyzed according to the fluorescence intensity of the oil and its aromatic hydrocarbon compound and the conjugated double bond compound absorbing ultraviolet light. The aromatic hydrocarbons in the petroleum form fluorescence under the excitation of ultraviolet light, and the value of the oil in the water is calculated according to the intensity of the fluorescence.

Feature

Digital sensor, RS-485 output, support MODBUS
Optional automatic cleaning brush to eliminate the impact of oil on the measurement
Eliminate the impact of ambient light on measurements with unique optical and electronic filtering techniques
It is not affected by suspended solids in water

Technical Specifications

Model	KWS-1000
Measuring Range	0-50ppm or 0-0.40FLU
Principle	fluorescence method
Resolution	0.01ppm
Accuracy	±3%F.S
The detection limit	According to actual oil sample
Linearity	R²>0.999
IP Grade	IP68
Max. depth	10m under water

Temperature Range	0~50℃
Output	RS485, Modbus
Installation	Submersible
Dimension	Φ45*175.8mm
Power Supply	DC5-12V, current<50mA (when not cleaning)
Cable Length	Standard 10m, customizable
Casing Material	316L (titanium alloy customizable)
Self-cleaning Function	Optional

Dimension

Company Information

Online Water Oil Content Monitor KWS-1000 Oil In Water Sensor 1

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Online Water Oil Content Monitor KWS-1000 Oil In Water Sensor 2

Online Water Oil Content Monitor KWS-1000 Oil In Water Sensor 3
