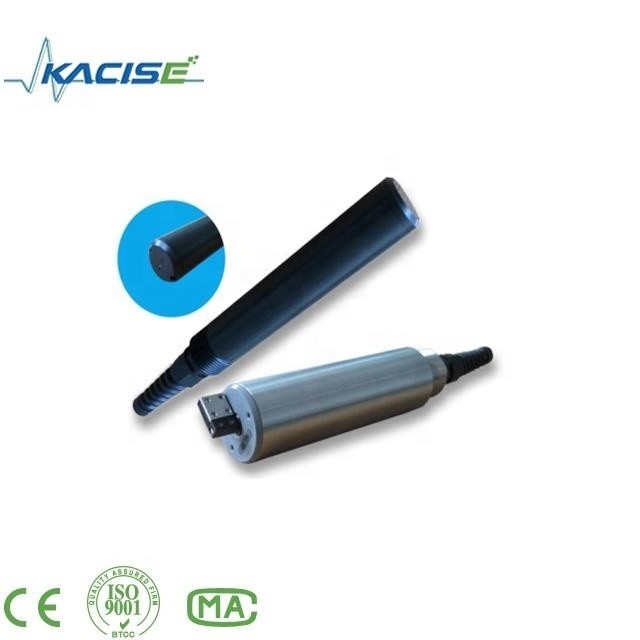

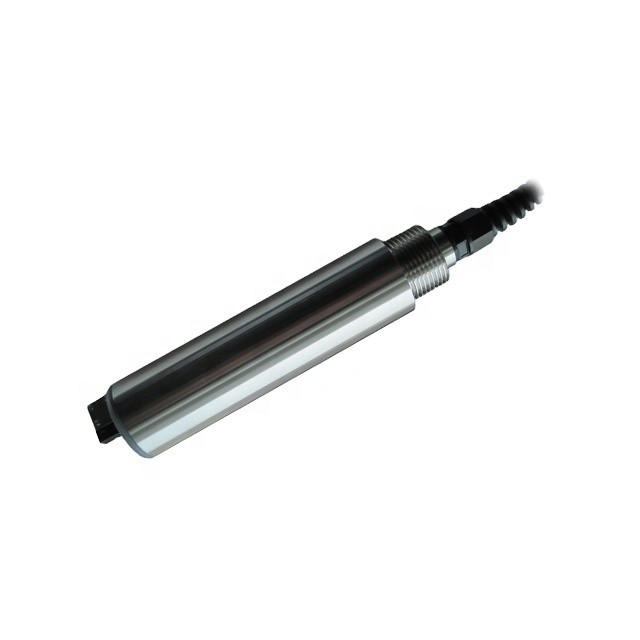

Name: KWS-1000 Online Oil-In-Water Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS series water quality sensor
Price: 250.00 USD
Availability: InStock

Dom > produkty > Czujnik jakości wody >

KWS-1000 Online Oil-In-Water Sensor

Place of Origin:

Shaanxi, China

Nazwa handlowa:

KACISE

Model Number:

KWS series water quality sensor

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Usage:

water quality sensor

Output:

Support RS-485, MODBUS protocol, Support RS-485, MODBUS protocol, RS485, Modbus

Brand:

PH sensor

Measuring Range:

0-50ppm or 0-0.40FLU

Principle:

fluorescence method

Accuracy:

±3%F.S

Temperature Range:

0~50℃

Resolution:

0.01ppm

Dimension:

diameter 45*175.8mm

Power Supply:

DC5-12V current Less than 50mA when not cleaning

Port:

Shanghai or other

Warunki płatności i wysyłki

Cena

$800.00 - $1,500.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply Ability

2000 Piece/Pieces per Week pressure transducer transmitter

ZAŁĄCZONE PRODUKTY

KCW102 Urządzenie do oczyszczania wody z falami elektromagnetycznymi o niskiej częstotliwości

Najlepszą cenę

KCW101 Częstotliwość - Modulowane urządzenia do oczyszczania wody fal elektromagnetycznych

Najlepszą cenę

KHM100 Automatyczny monitor jakości wody z ciężkich metali

Najlepszą cenę

KCW104 Wysoka częstotliwość wydajności - urządzenie do zamiatania

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

online oil-in-water sensor

Feature

Digital sensor, RS-485 output, support MODBUS

Optional automatic cleaning brush to eliminate the impact of oil on the measurement

Eliminate the impact of ambient light on measurements with unique optical and electronic filtering techniques

It is not affected by suspended solids in water

Introduction

Kacise online water sensor uses the principle of fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker, and can be monitored online in real time. The sensor has better repeatability and stability. Optional with an automatic cleaning brush, it eliminates air bubbles, reduces the effects of contamination on the measurement, makes the maintenance cycle longer, and maintains excellent stability for long-term online use. It can play an early warning role on oil pollution in water.

Dimensions

Technical Specifications

Model	KWS-1000
Measuring Range	0-50ppm or 0-0.40FLU
Principle	fluorescence method
Resolution	0.01ppm
Accuracy	±3%F.S
The detection limit	According to actual oil sample
Linearity	R2>0.999
IP Grade	IP68
Max. depth	10m under water

Application

4.Application Picture

Product picture

5.Production

KWS-1000 Online Oil-In-Water Sensor 3

Packaging & Shipping

6.Packaging

KWS-1000 Online Oil-In-Water Sensor 5

Feedback

KWS-1000 Online Oil-In-Water Sensor 7
