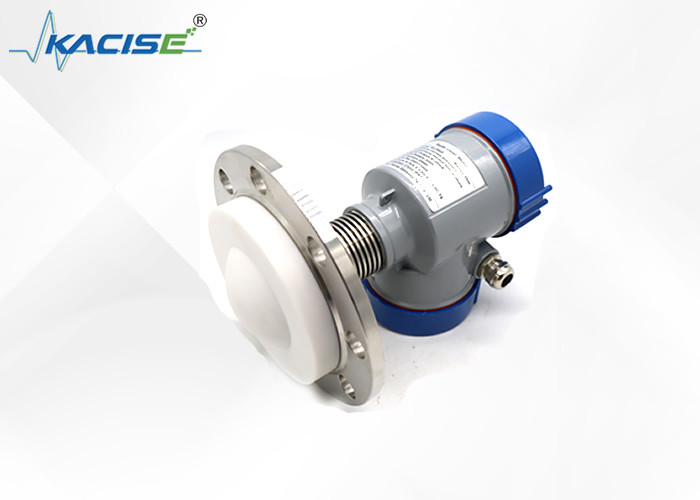

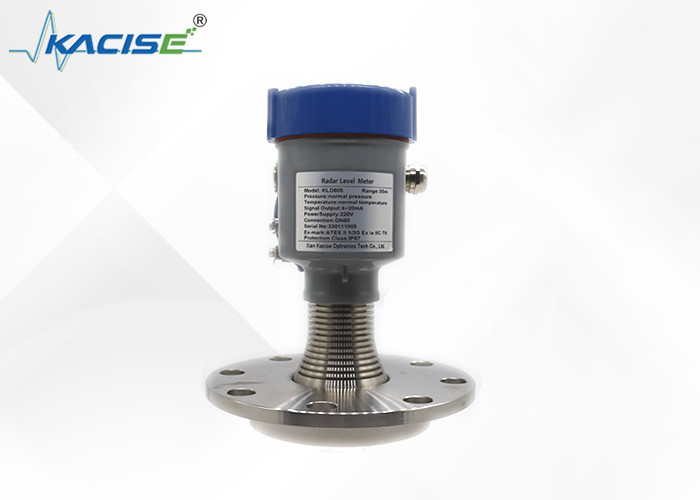

KLD805 80G Radar Level Gauge High Temperature And Pressure Resistance

                 KLD800 series 80G Radar Level Gauge Strong corrosion resistance


The high-frequency 80g radar level gauge has the advantages of low maintenance, high performance, high precision, high reliability, and long service life. Compared with contact instruments such as capacitors and weights, it has incomparable advantages. The transmission of microwave signals is not affected by the atmosphere, so it can meet the requirements of harsh environments such as volatile gas, high temperature, high pressure, steam, vacuum and high dust in the process. This product is suitable for harsh environments such as high temperature, high pressure, vacuum, steam, high dust and volatile gas. Continuous measurement of different material levels is possible.

The KLD-80G series radar level gauge is an 80G ultra-high frequency, millimeter-wave radar with a measurement accuracy of up to ±2mm and a minimum blind zone of 0.05m. Lens antenna design, smaller beam angle, more suitable for complex working conditions such as small-diameter tanks and stirring coils in the tank. With stronger penetrability and multiple measurement modes, various antennas can be selected according to different industries and mines to ensure that the radar can also measure stably and accurately under complex conditions such as high temperature, high pressure and high dust.




​
Feature

⚫ Millimeter wave radar, the measurement accuracy can reach up to ±2mm, and the
minimum measurement blind zone is 0.05m.
⚫ The smaller antenna size satisfies the measurement of more working conditions.
⚫ A variety of lens antennas, smaller launch angles, more concentrated energy, stronger
echo signals, and higher reliability than other radar products under the same industrial
and mining conditions.
⚫ It has stronger penetration and can be used normally in the case of adhesion and
condensation.
⚫ The dynamic signal range is larger, and the measurement of low dielectric constant
media is more stable.
⚫ Multiple measurement modes, radar response in fast measurement mode

Technical Specification and Model Selections


Connection

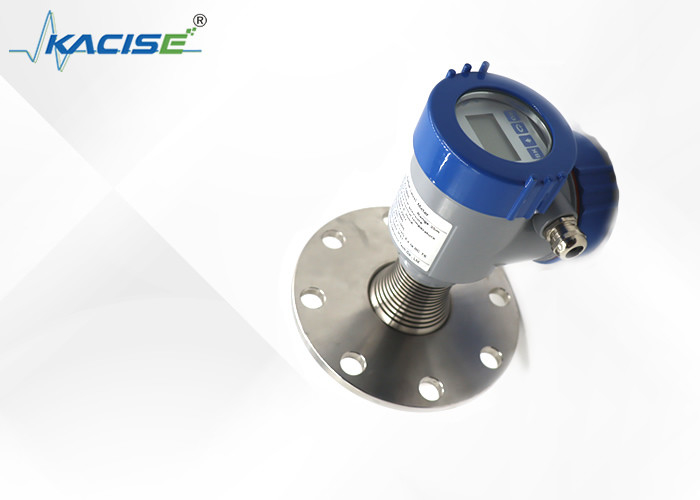

KLD800 series product show
