Name: Rs485 output silo radar level sensor with antenna material PTFE
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLD806
Price: 1,000.00 USD
Availability: InStock

Dom > produkty > Miernik poziomu płynu >

Rs485 output silo radar level sensor with antenna material PTFE

Silo Radar Level Sensor

Rs485 Radar Level Sensor

Customized Shell Radar Level Transmitter

Place of Origin:

CHINA

Nazwa handlowa:

KACISE

Orzecznictwo:

Model Number:

KLD806

Skontaktuj się z nami

Poproś o wycenę

Rs485 output silo radar level sensor with antenna material PTFE

Szczegóły produktu

Medium:

solid, storage container, process container, strong dust application

Measuring range:

0.3m~10/20/30/60/100m

Process connection:

flange ≥ DN100

Process temperature:

-40～110℃

Process pressure:

-0.1～0.3MPa

Antenna size:

76mm lens antenna (purge optional)

Antenna material:

PTFE

Accuracy:

±5mm

Protection class:

IP67

Center frequency:

80GHz

Launch angle:

3°

Power supply:

DC24V/DC12~24V /AC220V

Casing:

aluminum / plastic / stainless steel

Signal output:

4...20mA/HART protocol/RS485 Modbus

Podkreślić:

Silo Radar Level Sensor

Rs485 Radar Level Sensor

Customized Shell Radar Level Transmitter

Warunki płatności i wysyłki

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

ZAŁĄCZONE PRODUKTY

Wideo

Kontroler wyświetlacza serii KDI obsługujący komunikację między różnymi maszynami

Najlepszą cenę

Wideo

Kontroler wyświetlacza serii KDI z otwartym interfejsem ustawiania parametrów wewnętrznych o wysokiej dokładności i rozdzielczości 0,1

Najlepszą cenę

Wideo

Dokładny sterownik wyświetlacza pomiarów serii KDI z wielokrotnym przełączaniem wskaźników wejścia i kompensacją temperatury

Najlepszą cenę

Wideo

Kontroler wyświetlacza kolumny świetlnej serii KDI z pomiarem cyfrowym i analogowym

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

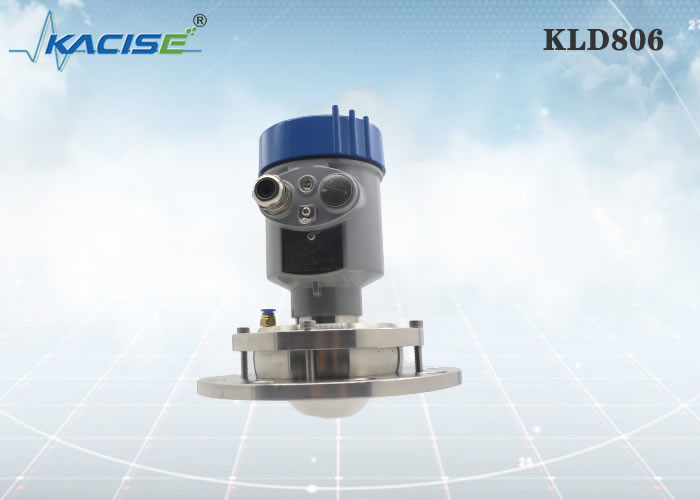

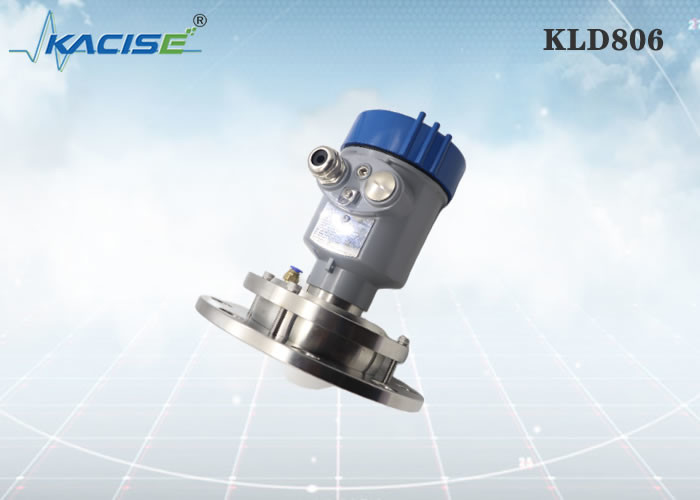

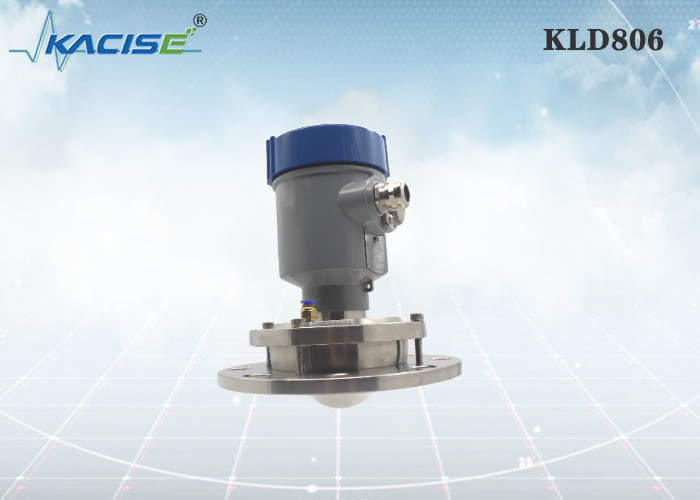

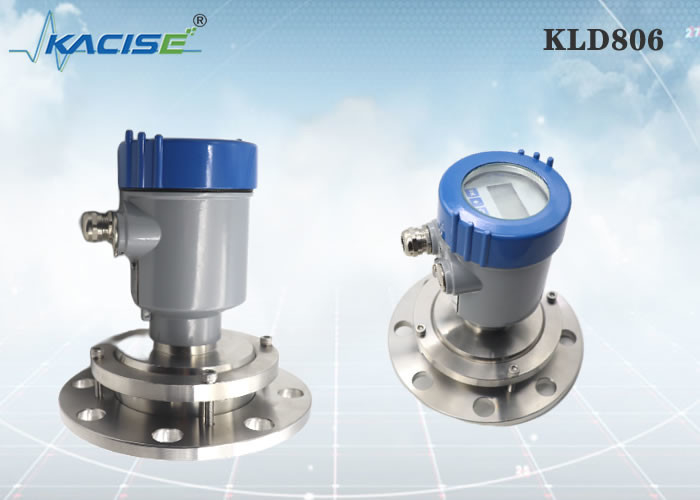

KLD806 80G FM Radar Level Sensor

Introduction

76-81GHz FM continuous wave radar products support four-wire and two-wire applications. Multiple models, the maximum range of the product can reach 100 meters, and the blind area can reach 30 cm. Because of its higher working frequency and shorter wavelength, it is particularly suitable for solid applications. The working mode of transmitting and receiving electromagnetic waves through the lens has unique advantages in high dust and harsh temperature environment (+110 ℃). The instrument shall be fixed by flange or thread to make installation convenient and easy.

Feature

High Frequency 80GHz, More Focus
One type of PTFE Antenna, no cable, rod, or drop structure.
Suitable for long/tall/narrow applications
Not affected by temperature changes, dust or vapors
Support small batch OEM service

KLD806
Rs485 output silo radar level sensor with antenna material PTFE 0

Medium: solid, storage container, process container,
strong dust application
Measuring range: 0.3m~10/20/30/60/100m
Process connection: flange ≥ DN100
Process temperature: -40～110℃
Process pressure: -0.1～0.3MPa
Antenna size: 76mm lens antenna (purge optional)
Antenna material: PTFE
Accuracy: ±5mm
Protection class: IP67
Center frequency: 80GHz
Launch angle: 3°
Power supply: two-wire /DC24V
four-wire /DC12~24V
four-wire /AC220V
Casing: aluminum/plastic/stainless steel
Signal output: two-wire /4...20mA/HART protocol
four-wire 4...20mA/ RS485 Modbus

Dimensions

Installation

1.Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

① datum plane

② vessel center or axis of symmetry

2.Hoisting Installation

Installation Requirements

When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.
Rs485 output silo radar level sensor with antenna material PTFE 7

Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.

Installation connection diagram:
The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.
Too long installation connection will affect the radar performance.

Rs485 output silo radar level sensor with antenna material PTFE 11

Dimensions
Casing Dimension
Unit in mm:
Rs485 output silo radar level sensor with antenna material PTFE 12

Production:

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
