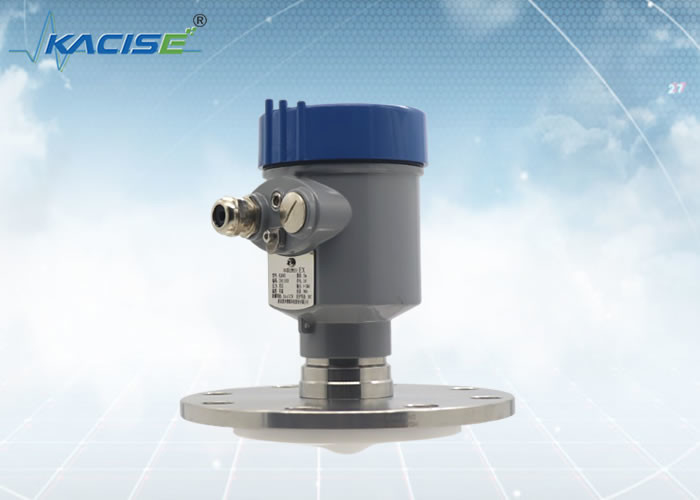

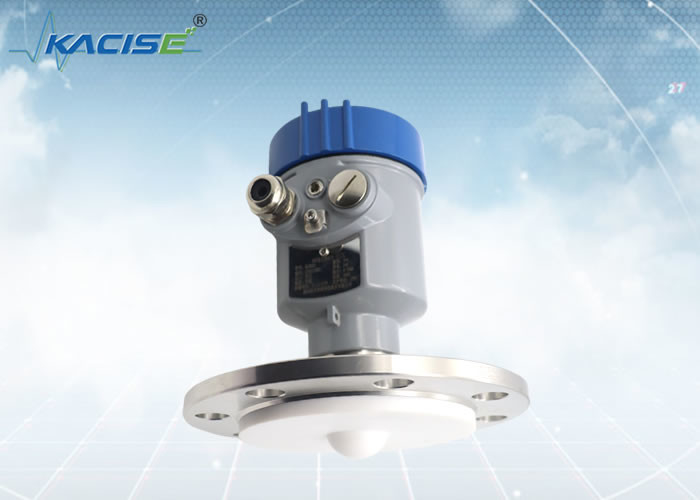

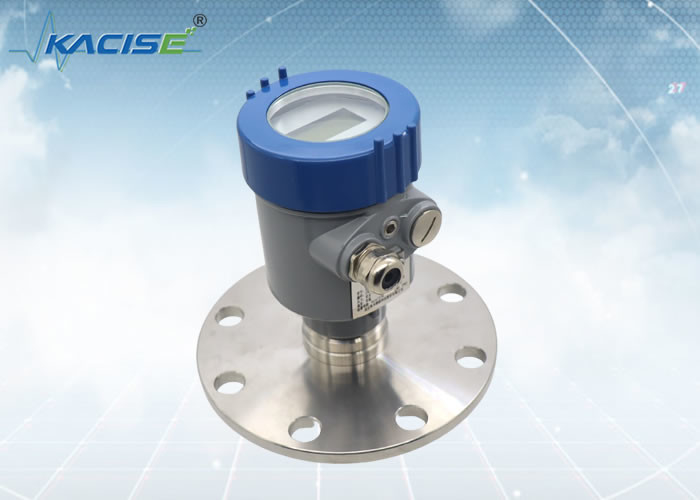

4 - 20mA Anti Corrosive Radar Level Transmitter Diesel Fuel Oil Water Tank FMCW KLD803

KLD803 80G FM Radar Level Sensor

Introduction

The hardware system uses advanced microprocessors and embedded system processing software. The signal algorithm processing integrates advanced Echo-capture signal processing technology. This makes the product applicable to various complex industrial plant conditions.

The “empty tank pretreatment” technology enables the instrument to correctly identify effective echoes and obtain correct measurement results even in the presence of multiple false echo interference.

Not affected by various complicated working conditions. Such as strong corrosive liquid, steam, foam medium.

Feature

• Cast aluminum shell: safe, durable (not easy to oxidize and rust), light weight, strong plasticity (strong ductility)
• Stainless steel shell: 304 (high temperature resistance, high toughness), 316L (corrosion resistance)
• False wave learning function

Product Dimension

Unit in mm:

Installation Method

Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

• datum plane
• vessel center or axis of symmetry

Hoisting Installation

What does FMCW stand for?

• FMCW, namely Frequency Modulated Continuous Wave.
• FMCW technology and pulse radar technology are two technologies used in high-precision radar ranging. The basic principle is that the transmitted wave is a high-frequency continuous wave. Its frequency changes with time according to the law of triangle wave.
• FMCW (Frequency Modulated Continuous Wave), the received echo frequency and the transmitted frequency change law are the same, both are triangular waves. There is only a time difference. Using this tiny time difference, the target distance can be calculated.
