Name: KWS-1100 Oil In Water Sensor Monitored Online In Real Time
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-1100
Price: 1,270.00 USD
Availability: InStock

Dom > produkty > Czujnik jakości wody >

KWS-1100 Oil In Water Sensor Monitored Online In Real Time

IP68 Oil In Water Detector

KWS-1100 Oil In Water Sensor

Fluorescence Oil In Water Sensor

Place of Origin:

China

Nazwa handlowa:

Kacise

Model Number:

KWS-1100

Skontaktuj się z nami

Poproś o wycenę

KWS-1100 Oil In Water Sensor Monitored Online In Real Time

Szczegóły produktu

Measuring Range:

5ppm（NDSA）/ 1.1ppm（BTEX）

Principle:

fluorescence method

Laser wavelength:

254nm

Fluorescence monitoring wavelength:

360nm

Resolution:

0.01ppb

The detection limit:

5ppb（NDSA）/ 1ppb（BTEX）

Linearity:

R2>0.999

IP Grade:

IP68

Max. depth:

30m under water

Output:

RS485, Modbus

Power Supply:

DC12-24V, current<50mA (when not cleaning)

Temperature Range:

0~50℃

Podkreślić:

IP68 Oil In Water Detector

KWS-1100 Oil In Water Sensor

Fluorescence Oil In Water Sensor

Warunki płatności i wysyłki

Minimum Order Quantity

Cena

1060~1480USD/pc

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

ZAŁĄCZONE PRODUKTY

KCW102 Urządzenie do oczyszczania wody z falami elektromagnetycznymi o niskiej częstotliwości

Najlepszą cenę

KCW101 Częstotliwość - Modulowane urządzenia do oczyszczania wody fal elektromagnetycznych

Najlepszą cenę

KHM100 Automatyczny monitor jakości wody z ciężkich metali

Najlepszą cenę

KCW104 Wysoka częstotliwość wydajności - urządzenie do zamiatania

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

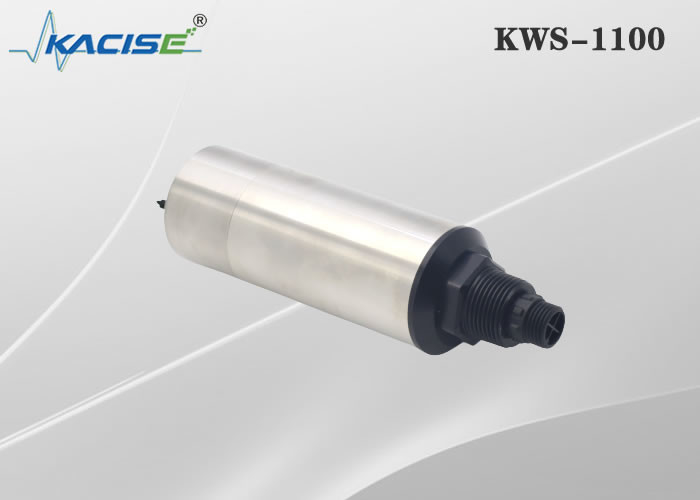

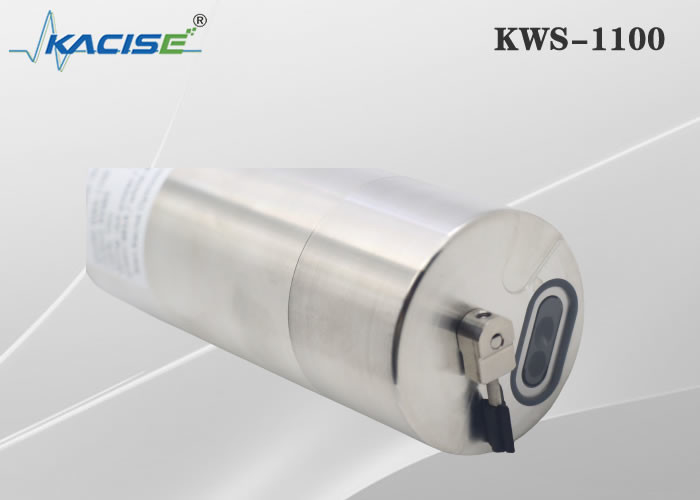

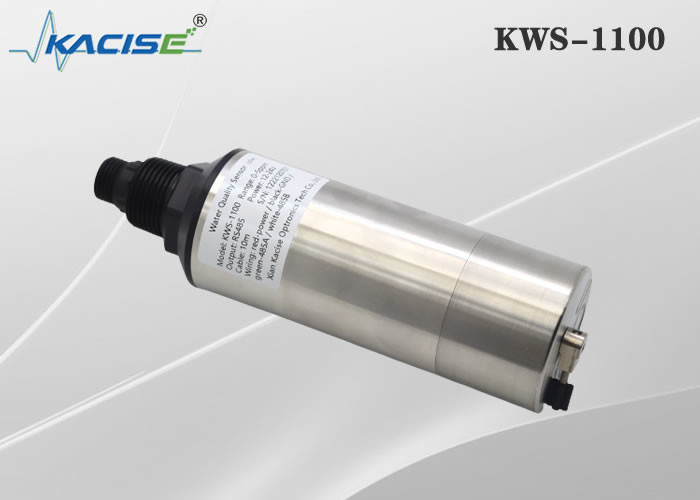

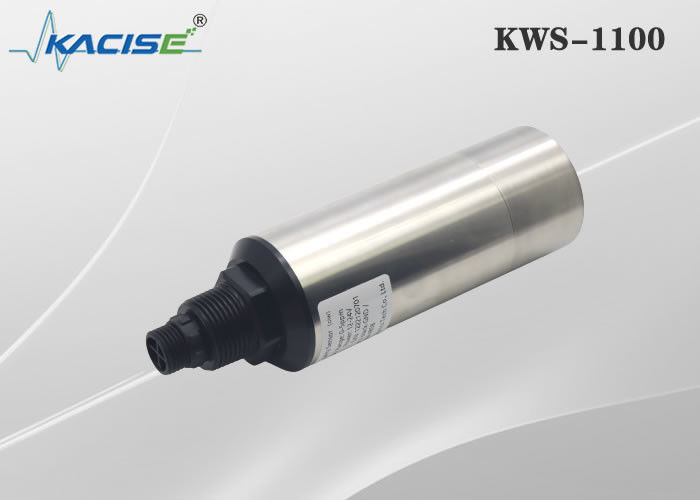

KWS-1100 Online Oil-In-Water Sensor

Introduction

Kacise online water sensor uses the principle of fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker, and can be monitored online in real time. The sensor has better repeatability and stability. Optional with an automatic cleaning brush, it eliminates air bubbles, reduces the effects of contamination on the measurement, makes the maintenance cycle longer, and maintains excellent stability for long-term online use. It can play an early warning role on oil pollution in water.

Principe

The oil content in the water body was monitored by ultraviolet fluorescence method, and the oil concentration in the water body was quantitatively analyzed according to the fluorescence intensity of the oil and its aromatic hydrocarbon compound and the conjugated double bond compound absorbing ultraviolet light. The aromatic hydrocarbons in the petroleum form fluorescence under the excitation of ultraviolet light, and the value of the oil in the water is calculated according to the intensity of the fluorescence.

Feature

Digital sensor, RS-485 output, support MODBUS
Optional automatic cleaning brush to eliminate the impact of oil on the measurement
Eliminate the impact of ambient light on measurements with unique optical and electronic filtering techniques
It is not affected by suspended solids in water

Technical Specifications

Model	KWS-1100
Measuring Range	5ppm(NDSA)/ 1.1ppm(BTEX)
Principle	fluorescence method
Laser wavelength	254nm
Fluorescence monitoring wavelength	360nm
Resolution	0.01ppb
The detection limit	5ppb(NDSA)/ 1ppb(BTEX)
Linearity	R²>0.999
IP Grade	IP68
Max. depth	30m under water
Temperature Range	0~50℃
Output	RS485, Modbus
Installation	Submersible
Power Supply	DC12-24V, current<50mA (when not cleaning)
Cable Length	Standard 10m, customizable
Casing Material	316L (titanium alloy customizable)
Self-cleaning Function	Optional
