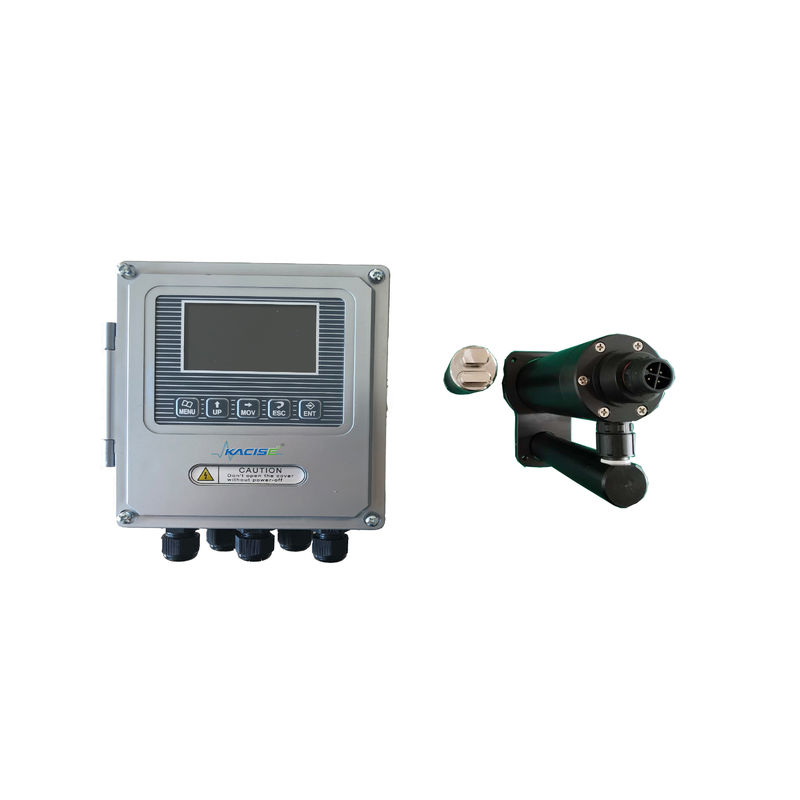

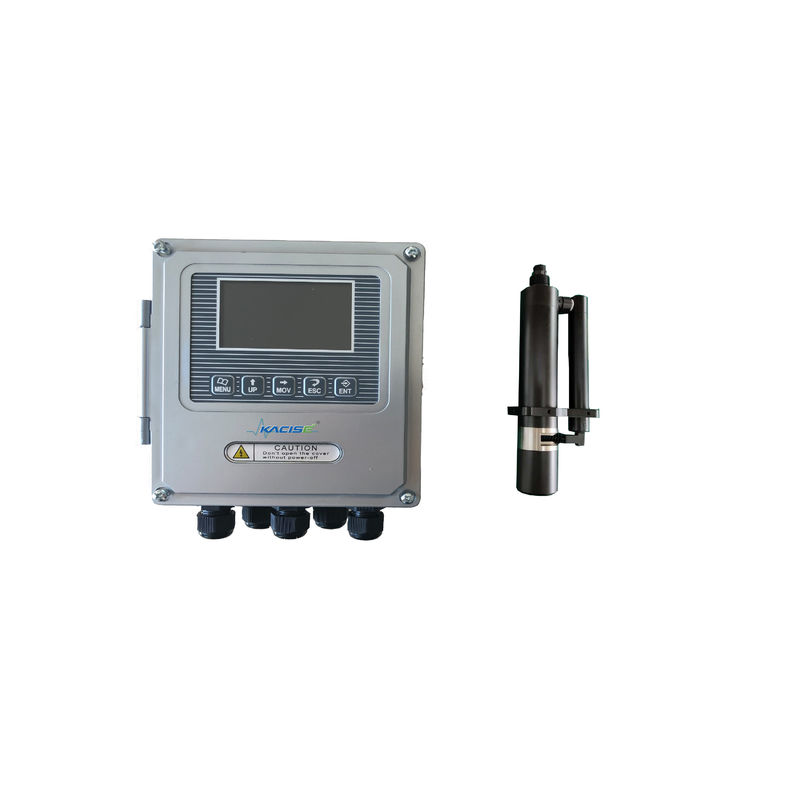

Kacise Rapid COD Chemical Oxygen Demand Meter COD Tester Water Quality Probe Water Quality Monitoring Equipment KCD120
Product Introduction
The COD sensor uses an advanced deep ultraviolet UV LED cold light source, which has a long life and small drift.Adopt international common technology, proven and highly accurate UV absorption method.
No need for sample pretreatment, fast reaction analysis speed, no reagents, no sampling equipment. The sensor has a mechanical self-cleaning function and uses a 550nm compensation light source,It can effectively eliminate the influence of turbidity and chromaticity on the measurement.
Performance characteristics
Dual-wavelength ultraviolate light to compensate for interference and improve accuracy
• Dual optical path: 254nm and 550nm, which can effectively eliminate the influence of turbidity and chromaticity.
• UV absorption method for the determination of organic matter (such as COD TOC, etc.), without reagents,
the sample does not need to be digested, and does not need long-term maintenance
• Fast response speed, the fastest response time is 10 seconds (T90).
• Adopt advanced cold light source UV LED, long life and small drift.
Adopting filter and PD receiver, no consumables, long life and little drift.
• With independent property rights and stable supply chain of key components, the products are extremely cost-effective.
COD analyzer sensor
6mm Optical path sensor
0-300mg/L
Features: high resolution
0-1500mg/L
Features: high range, self-cleaning
Host size
COD analyzer parameter table
| Class |
Performance |
parameter |
| Host |
Measuring range |
0~100NTU,0~500NTU,0~5000NTU
0~10000NTU,0~25g/L,0~50g/L
|
| Resolution |
0.01NTU,0.1NTU,1NTU,0.01mg/L |
| Precision |
2-3% calibration accuracy |
| Operating Temperature |
Transmitter -1 0~65℃ |
| Material |
PVC |
| Protection Level |
I65/IP67(customized version) |
| Signal Output |
485 communication/4-20mA analog output/support HART protocol/NB.GPRS.LORA
Communication (function option)
|
| Supply Voltage |
AC220V or DC24V (choose one of the two) |
| Power Consumption |
<1W |
| Display |
LCD Chinese display/TFT color LCD (customized version) |
| Installation Method |
Wall mount |
| Sensor |
Temperature compensation |
Automatic temperature compensation |
| PH compensation |
With PH electrode compensation or manual input compensation (optional) |
| Protection Level |
ip68 |
| Temperature |
0-60℃ |
| Sensor Material |
PVC |
| Cable Length |
Dedicated residual chlorine cable, standard 5 meters (extendable) |
| Operating Temperature |
0-60℃ |
| Storage temperature |
-10-60℃ |
| Installation Method |
Bracket drop-in installation / flow-through wall-mounted installation |
Ordering Information Selection Table
| Ordering Information Selection Table |
| KCD120 |
PH/ORP analyzer |
| Power supply |
DC24V |
| AC220V |
| Cable length |
5m |
| 10m |
| 15m |
| 20m |
| Temperature compensation |
Sensor without temperature compensation |
| Sensor with temperature compensation |
| Signal output |
Only 4-20mA |
| Only 485 |
| Also with 4-20mA , 485 signal output |
| Special custom signal |
| KCD120-DC24V-5m-Sensor without temperature compensation-Only 485 |
COD host, with DC24V adapter, cable between host and sensor,The cable length is 5 meters, the sensor is equipped without temperature compensation, and is only 485 communication. |
