Name: LED Display Digital Fluid Level Meter Rs485 Rs232 Ultrasonic Distance Level Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS-M56
Price: 1,000.00 USD
Availability: InStock

Dom > produkty > Miernik poziomu płynu >

LED Display Digital Fluid Level Meter Rs485 Rs232 Ultrasonic Distance Level Sensor

ultrasonic level transmitter

ultrasonic liquid level sensor

Place of Origin:

CHINA

Nazwa handlowa:

KACISE

Orzecznictwo:

Model Number:

KUS-M56

Skontaktuj się z nami

Poproś o wycenę

LED Display Digital Fluid Level Meter Rs485 Rs232 Ultrasonic Distance Level Sensor

Szczegóły produktu

Range:

0.5m - 6m

Material:

Plastic

Power supply:

24 V DC

Output:

4-20mA / RS485 (Modbus)

Protection grade:

IP65 (IP66 selectable)

Emission angle:

20°

Installation:

M56*2

Display:

LED

Podkreślić:

ultrasonic level transmitter

ultrasonic liquid level sensor

Warunki płatności i wysyłki

Minimum Order Quantity

1PCS

Cena

negocjowalne

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

ZAŁĄCZONE PRODUKTY

Wideo

Kontroler wyświetlacza serii KDI obsługujący komunikację między różnymi maszynami

Najlepszą cenę

Wideo

Kontroler wyświetlacza serii KDI z otwartym interfejsem ustawiania parametrów wewnętrznych o wysokiej dokładności i rozdzielczości 0,1

Najlepszą cenę

Wideo

Dokładny sterownik wyświetlacza pomiarów serii KDI z wielokrotnym przełączaniem wskaźników wejścia i kompensacją temperatury

Najlepszą cenę

Wideo

Kontroler wyświetlacza kolumny świetlnej serii KDI z pomiarem cyfrowym i analogowym

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

LED Display Digital Rs485 Rs232 Ultrasonic Distance Level Sensor

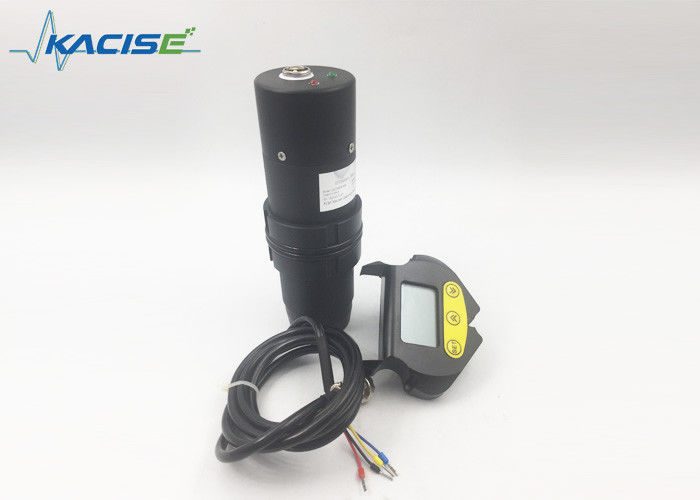

LED Display Digital Fluid Level Meter Rs485 Rs232 Ultrasonic Distance Level Sensor 0

1,Features

Non-contact

Short response time

Digital tube display

Various output optional: switch, analog, or RS485

2,Introduction

The highly advanced Ultrasonic sensor makes use of sound waves to carry out non-contact and completely wear-free detection on various target subjects. It possesses the remarkable capability to be employed for the detection of either transparent or richly colored objects, whether they are metal objects or non-metallic ones, as well as substances in the forms of solid, liquid, or powdered matter. The ambient conditions, such as the presence of environmental smoke, fine dust particles, diverse environmental factors, or even rainfall, have an extremely negligible impact on the outstanding detection performance of these ultrasonic sensors.

For instance, in the intricate assembly lines of a modern automotive factory, the Ultrasonic sensor accurately detects both transparent plastic components and metallic parts without any physical contact or wear, ensuring seamless production. Even in a dusty and smoke-filled construction site or during a rainy outdoor industrial inspection, the sensor maintains its superior detection accuracy and reliability, unaffected by the challenging surrounding conditions. This makes it an indispensable tool in a wide range of industries where precise and reliable object detection is crucial, regardless of the nature of the objects and the complexity of the environment.

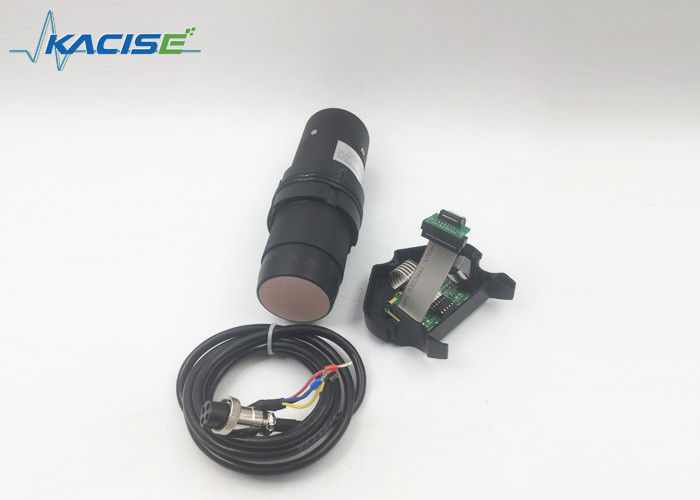

LED Display Digital Fluid Level Meter Rs485 Rs232 Ultrasonic Distance Level Sensor 1

3,Principle

Transmitting ultrasonic transducer emits ultrasonic pulses propagated to the measured media through communication media, through reflection and then return to the receiving transducer through the acoustic medium, the measured ultrasonic pulse propagates from the transmitter to the receiver in the acoustic medium of time. Then according to the speed of sound in the acoustic medium, it can be considered from the transducer to the media surface distance. To determine the liquid level. Therefore, we can calculate the distance from the probe to the reflecting surface D = C * t / 2 (divided by 2 is because the sound waves from the transmitter to the receiver is actually a round, D is the distance, C is the speed of sound, t is the time).

4,Dimensions

LED Display Digital Fluid Level Meter Rs485 Rs232 Ultrasonic Distance Level Sensor 2

5,Parameters

Range	0.1~0.5m,0.15~1m,0.3~3m,0.4~5m,0.5~6m
Resolution	3mm or 0.1%(which is bigger)
Response time	< 200ms
Display	LED
Emission angle	20°
Analog output	4～20mA/500Ω LOADING
Switch output	Relay(optional)
RS232/485	MODBUS protocol or customized protocol (optional)
Power supply	Standard 24VDC (±15%)
Ambient temperature	-20～+60℃
Protection Class	IP65 (IP66 is optional)
Installation	M56*2
Note: Only one output can be chose among the three kinds of outputs.
