Name: Stainless Steel Load Cell Weight Sensor KCZ-501 For Medical Testing
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KCZ-301
Price: 255.00 USD
Availability: InStock

Dom > produkty > Czujnik ogniwa obciążnikowego >

Stainless Steel Load Cell Weight Sensor KCZ-501 For Medical Testing

load cell weight sensor

Tension Load Cell

strain gauge weight sensor

Place of Origin:

China

Nazwa handlowa:

KACISE

Orzecznictwo:

Model Number:

KCZ-301

Skontaktuj się z nami

Poproś o wycenę

Stainless Steel Load Cell Weight Sensor KCZ-501 For Medical Testing

Szczegóły produktu

Capacity:

0.5, 1, 2, 3, 5, 10, 20, 30, 50, 100kN

Sensitivity:

1.5±10%mV/V

Non-linearity:

0.1%F.S

Zero balance:

±2%F.S.

Material:

Stainless steel

Podkreślić:

load cell weight sensor

Tension Load Cell

strain gauge weight sensor

Warunki płatności i wysyłki

Minimum Order Quantity

1 Piece/Pieces

Cena

negocjowalne

Packaging Details

Carton / Wooden box

Delivery Time

7 Working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

3000 Piece/Pieces per Month

ZAŁĄCZONE PRODUKTY

Mavin Load Cell 100kg 300kg 500kg 1000kg

Najlepszą cenę

High Accuracy Load Cell Sensor Column Type Stainless Steel Material

Najlepszą cenę

500 kg GXLC-DZ-0.5T Ciężki czujnik ogniwa obciążenia

Najlepszą cenę

GXLC-DZ-1T 1000KG Ciężka komórka obciążenia czujnika o impedancji 700/1400Ω

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

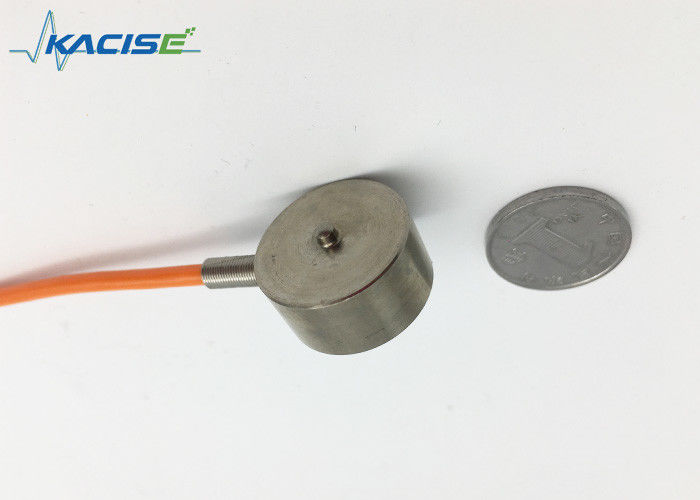

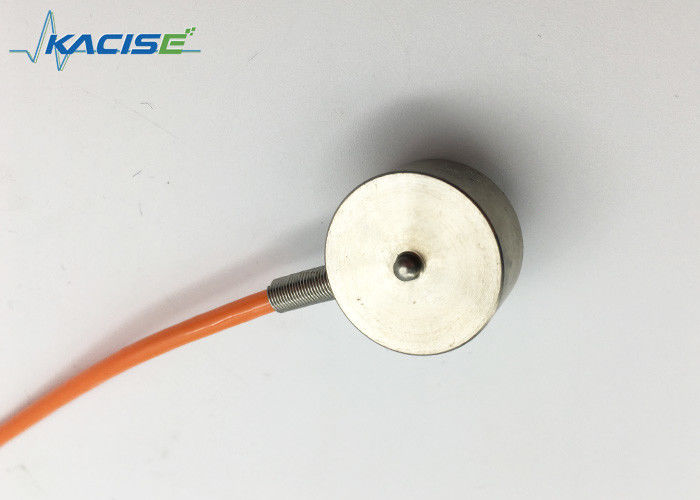

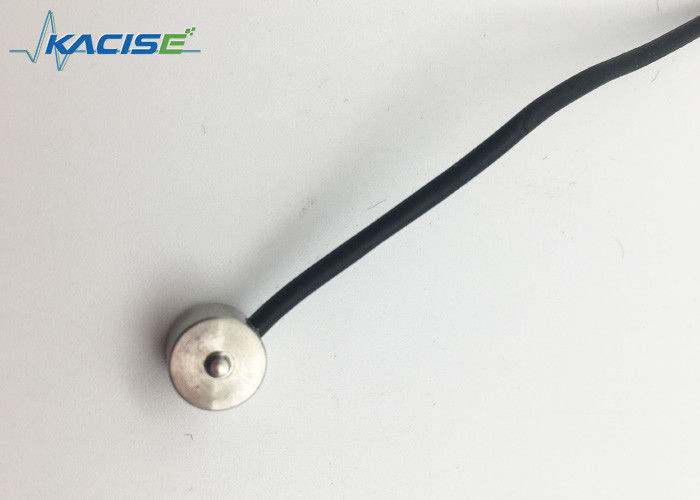

Stainless Steel KCZ-501 Membrane Box Load Cell For Medical Testing

Features

Small defromation with strong ability of anti-side force;

Made of stainless steel;

Applications

Compression application;

Can be used for industrial polishing;

Suitable for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics and other industrial testing and control system

High dynamic response frequency.

Technical Specifications

Capacity	0.5, 1, 2, 3, 5, 10, 20, 30, 50, 100kN
Sensitivity	1.5±10%mV/V
Zero balance	±2%F.S.
Non-linearity	0.1%F.S
Hysteresis	0.1%F.S
Repeatability	0.05%F.S
Creep (30min)	0.1%F.S
Temp.effect on output	0.05%F.S/10℃
Temp.effect on zero	0.05%F.S/10℃
Input impedance	780±10Ω
Output impedance	700±5Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5~15V
Maximum excitation	20V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S
Ultimate overload	300%F.S
Cable size	Φ4x4000mm
Material	Stainless steel
IP class	IP68
Capacity	0.5, 1, 2, 3, 5, 10, 20, 30, 50, 100kN
Sensitivity	1.5±10%mV/V
Zero balance	±2%F.S.

Mounting dimension

Cap (kN)	A	B	C	D	E	F	G	H	K	M	Weight
0.5, 1,2,3,5,10	54	50	34	8.5	5	13	5.5	47	42	8-M5	0.8kg
20, 30, 50, 100	95	90	55	15	5.5	20	11	72	70	16-M5	2kg

Dimensions and Connection

Stainless Steel Load Cell Weight Sensor KCZ-501 For Medical Testing 0
