Titanium Alloy Fluid Level Meter Transmitter Two / Three Wire For Submersible Marine

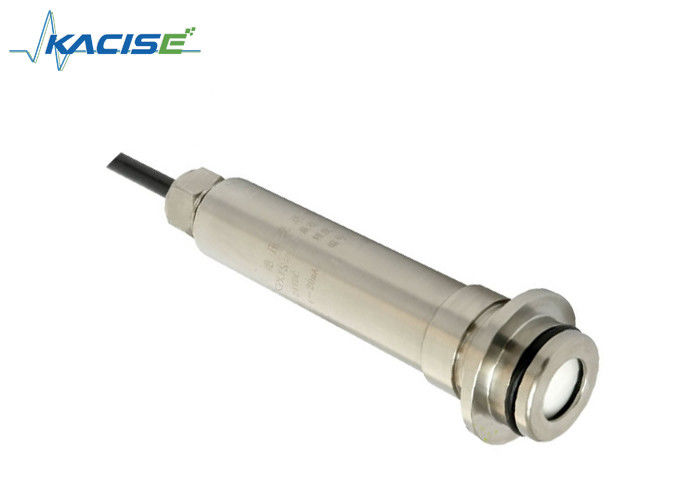

Two / Three wire Submersible Marine Titanium Alloy Liquid Level Transmitter

1. Product Description

GXPS460 series level transmitter is a highly reliable, high stability, high accuracy, the whole temperature digitized compensation level transmitter is designed for all kinds of sea water measurement design.

Oil-filled core and shell of the products used in all the titanium alloy structure, long-term safe use in -20 ℃ ~ 70 ℃ seawater, the latest digitized compensation to ensure the accuracy of the temperature region does not decrease or loss of, computer interface to its zero and full scale calibration can also be externally programmed adjustment of zero and span.

Abrasion, oil, acid and alkali resistant, high-strength special breathable cable can be used depending on site configuration.

2. Parameter

3.  Feature

• Accuracy: ±0.25, ±0.5%F.S
• The whole temperature range to ensure accuracy
• Titanium alloy oil filled core body
• Heat resistant, resistant to strong acid
• Antimicrobial mucous corrosion
• Various of measuring range and signal output
• Non polarity two wire system current output
• Digital calibration

4. Application Field

• Sea water measurement
• Draft marks detection
• With corrosive media
• Thermal boiler
• Chemical experiment
• Higher temperature field
• Harbor wharf depth
• Sea bridge altitude measurement
