Name: Proline Promag P 200 electromagnetic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promag P 200
Price: 2,540.00 USD
Availability: InStock

Dom > produkty > Przepływomierz elektromagnetyczny >

Proline Promag P 200 electromagnetic flowmeter

Proline Promag P 200 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Miejsce pochodzenia:

Szwajcaria

Nazwa handlowa:

Endress+Hauser

Orzecznictwo:

Numer modelu:

Proline Promag P 200

Skontaktuj się z nami

Poproś o wycenę

Proline Promag P 200 electromagnetic flowmeter

Szczegóły produktu

Materiał obudowy przetwornika:

AlSi10Mg, powlekany

Materiał obudowy czujnika:

AlSi10Mg, powlekany

Mierzone zmienne:

Przepływ objętościowy, przepływ masowy

Maks. błąd pomiaru:

Przepływ objętościowy: ±0,5% lub ±2 mm/s (0,08 cala/s)

Zakres pomiarowy:

4 dm3/min do 1100 m3/h (1 do 4850 gal/min)

Podkreślić:

Proline Promag P 200 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Warunki płatności i wysyłki

Minimalne zamówienie

1 szt

Szczegóły pakowania

Każde urządzenie ma indywidualne pudełko, a wszystkie pola są pakowane w standardowe pakiety lub dos

Czas dostawy

5-8 DNI ROBOCZYCH

Zasady płatności

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Możliwość Supply

1000 sztuk/sztuk tygodniowo do negocjacji

ZAŁĄCZONE PRODUKTY

Proline Promass S 300 Coriolis flowmeter

Najlepszą cenę

Proline Promass P 500 Coriolis flowmeter

Najlepszą cenę

Proline Promass Q 300 Coriolis flowmeter

Najlepszą cenę

Proline t-mass F 500 thermal mass flowmeter

Najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

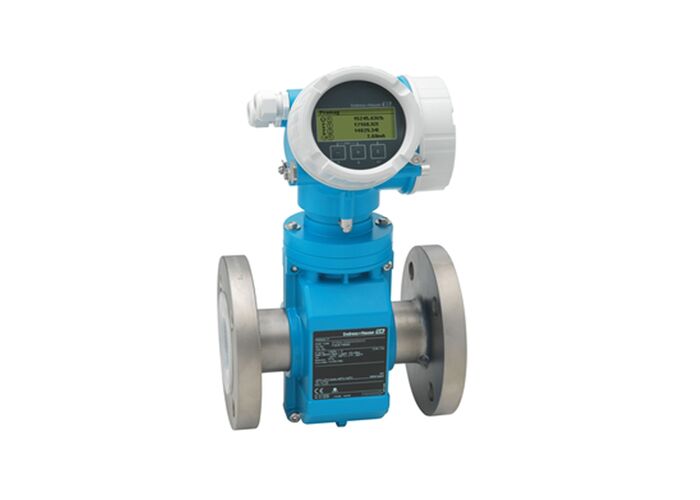

Proline Promag P 200 Electromagnetic Flowmeter

The flowmeter for highest medium temperatures with genuine loop-powered technology. Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.

Field of Application

Promag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. With genuine loop-powered technology, Promag P 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas thanks to its intrinsically safe design (Ex ia). Heartbeat Technology enables process safety at all times.

Bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
Dedicated to chemical and process applications with corrosive liquids and high medium temperatures

Key Benefits

Versatile applications - wide variety of wetted materials
Energy-saving flow measurement - no pressure loss due to cross-section constriction
Maintenance-free - no moving parts
Convenient device wiring - separate connection compartment
Safe operation - no need to open the device due to display with touch control, background lighting
Integrated verification - Heartbeat Technology

Technical Specifications

Measuring Principle

Electromagnetic

Nominal Diameter Range

DN 15 to 200 (½ to 8")

Wetted Materials

Component	Materials
Liner	PFA; PTFE
Electrodes	1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum

Performance Specifications

Parameter	Specification
Measured Variables	Volume flow, mass flow
Max. Measurement Error	Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s)
Measuring Range	4 dm³/min to 1100 m³/h (1 to 4850 gal/min)
Max. Process Pressure	PN 40, Class 300, 20K

Temperature Ranges

Type	Range
Medium Temperature (PFA Liner)	-20 to +150 °C (-4 to +302 °F)
Medium Temperature (PTFE Liner)	-40 to +130 °C (-40 to +266 °F)
Ambient Temperature (Carbon Steel)	-10 to +60 °C (+14 to +140 °F)
Ambient Temperature (Stainless Steel)	-40 to +60 °C (-40 to +140 °F)

Construction & Housing

Component	Material
Sensor Housing	AlSi10Mg, coated
Transmitter Housing	AlSi10Mg, coated
Degree of Protection	IP66/67, type 4X enclosure

Display & Operation

4-line backlit display with touch control (operation from outside). Configuration via local display and operating tools possible. Remote display available.

Electrical Specifications

Parameter	Specification
Outputs	4-20 mA HART (passive) Pulse/frequency/switch output (passive)
Inputs	None
Digital Communication	HART, PROFIBUS PA, FOUNDATION Fieldbus
Power Supply	DC 18 to 35 V (4-20 mA HART with/without pulse/frequency/switch output)

Approvals & Certifications

Hazardous Area

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, JPN, UK Ex

Product Safety

CE, C-Tick

Functional Safety

IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Metrological

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with ISO 9001:2015 requirements

Pressure

CRN, PED

Material

3.1 material certificate

Hygienic

Drinking water approvals: ACS, NSF 61
