Name: KSGYR312F Three Axis Fiber Optic Gyroscope 5V 71.5×68×45mm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR312F
Price: 431.00 USD
Availability: InStock

Dom > produkty > Elektroniczny czujnik giroskopu >

KSGYR312F Three Axis Fiber Optic Gyroscope 5V 71.5×68×45mm

three axis fiber optic gyroscope 5V

fiber optic gyroscope 71.5×68×45mm

three axis gyroscope with warranty

Place of Origin:

CHINA

Nazwa handlowa:

KACISE

Orzecznictwo:

Model Number:

KSGYR312F

Skontaktuj się z nami

Poproś o wycenę

KSGYR312F Three Axis Fiber Optic Gyroscope 5V 71.5×68×45mm

Szczegóły produktu

Supply voltage:

+5V

Dimensions:

71.5×68×45mm

Start time:

≤3s

Bias (100s smooth, fix temperature):

≤0.1°/h

Power dissipation (full temperature):

<4W

Weight:

<320g

Podkreślić:

three axis fiber optic gyroscope 5V

fiber optic gyroscope 71.5×68×45mm

three axis gyroscope with warranty

Warunki płatności i wysyłki

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Supply Ability

1000 Piece/Pieces per Week negotiable

ZAŁĄCZONE PRODUKTY

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

Najlepszą cenę

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

Najlepszą cenę

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

Najlepszą cenę

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

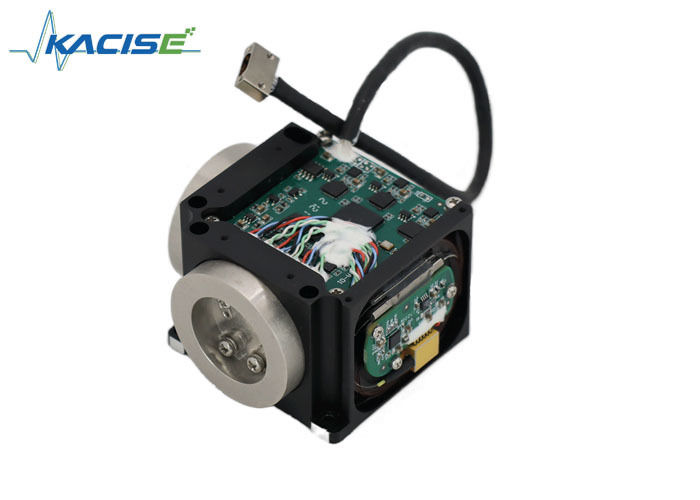

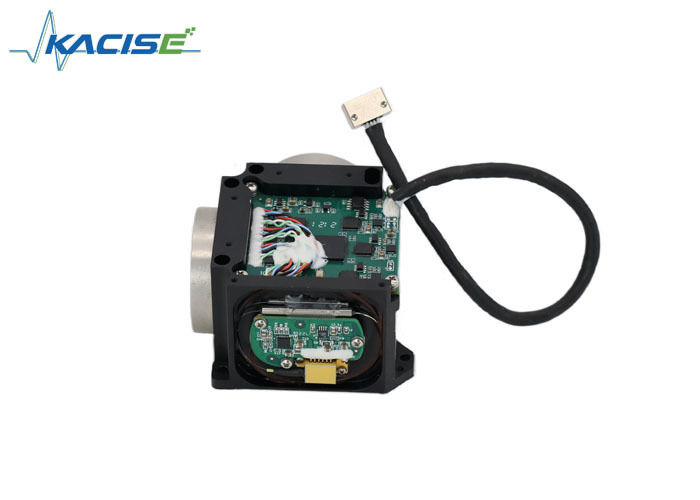

KSGYR312F Three Axis Fiber Optic Gyroscope

Product Overview

The KSGYR312F is an inertial angle rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along three sensitive axes. Utilizing digital closed-loop detection technology, it precisely extracts optical path differences caused by external angular velocity, providing real-time angular velocity signal detection.

Key Attributes

Attribute	Value
Supply voltage	+5V
Dimensions	71.5×68×45mm
Start time	≤3s
Bias (100s smooth, fix temperature)	≤0.1°/h
Power dissipation (full temperature)	<4W
Weight	<320g

Product Features

Accurately measures angular velocity of moving objects
All-solid-state design with no rotating or friction parts
Extended operational lifespan
Instantaneous startup capability
Simple, robust structure
Simultaneous three-axis angular velocity measurement

Applications

Photoelectric elevator systems
Flight control platforms
Strapdown inertial navigation
Optical and photographic instruments
Platform stabilizers
Inertial measurement instruments

Technical Specifications

Power Supply Parameters

Supply voltage

+5V

Performance Characteristics

Dimensions	71.5×68×45mm
Start time	≤3s
Bias (100s smooth, fix temperature)	≤0.1°/h
Bias stability (100s smooth -45°C~+70°C)	≤0.5°/h
Bias repeatability	≤0.1°/h
Random walk	≤0.01°/h1/2
Scale factor non-linearity	≤20ppm
Scale factor repeatability	≤10ppm
Dynamic range	±500°/s
Power dissipation (full temperature)	<4W
Weight	<320g

Environmental Specifications

Operate temperature	-45°C～+70°C
Storage temperature	-50°C～+80°C

Dimensions
