Product Description:

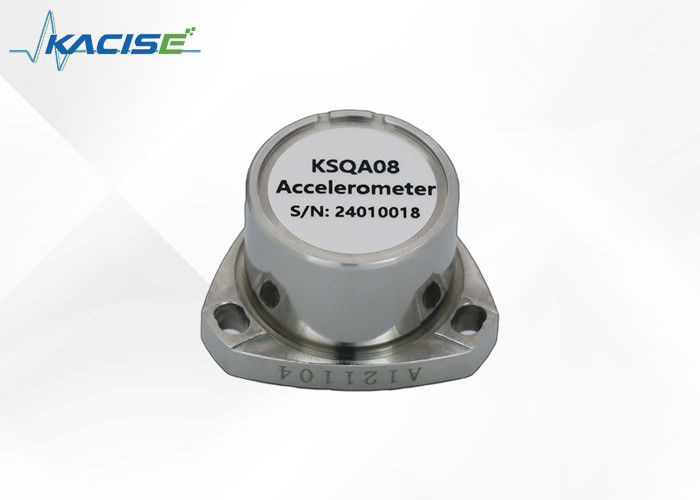

Quartz Flexible Accelerometer
The Quartz flexible accelerometer is a precision instrument that consists of quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier experiences acceleration, the output of the accelerometer is precisely proportional to the input acceleration.
Our accelerometer has a current output form of high output impedance, and users can choose the sampling resistance according to their requirement without affecting the stability of the system.
At present, we offer a series of products for the Quartz Flexible Accelerometer. This series includes dozens of types ranging from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to low-cost, anti-harsh environment KSQA13 accelerometer. Our products are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields. They provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range

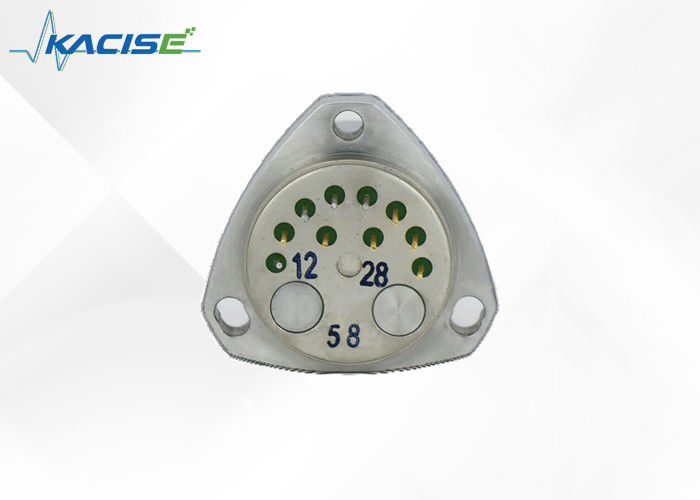

● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter |
KSQA08A |
KSQA08B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±20g |
±20g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤10μg/°C |
≤30μg/°C |
| One-month Composite Repeatability (1σ) |
≤10μg |
≤30μg |
| Six-month Composite Repeatability (1σ) |
≤30μg |
|
| Scale Factor |
1.2 ~ 1.6mA/g |
1.2 ~ 1.6mA/g |
| Temperature Sensitivity |
≤10ppm/°C |
≤50ppm/°C |
| One-month Composite Repeatability (1σ) |
≤10ppm |
≤40ppm |
| Six-month Composite Repeatability (1σ) |
≤50ppm |
|
| Linearity |
≤10μg/g2 |
≤40μg/g2 |
| Threshold |
<1μg |
<5μg |
| Resolution |
<1μg |
<5μg |
| Size |
Ø25.4×30mm |
Ø25.4×30mm |
| Weight |
≤70g |
≤70g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
