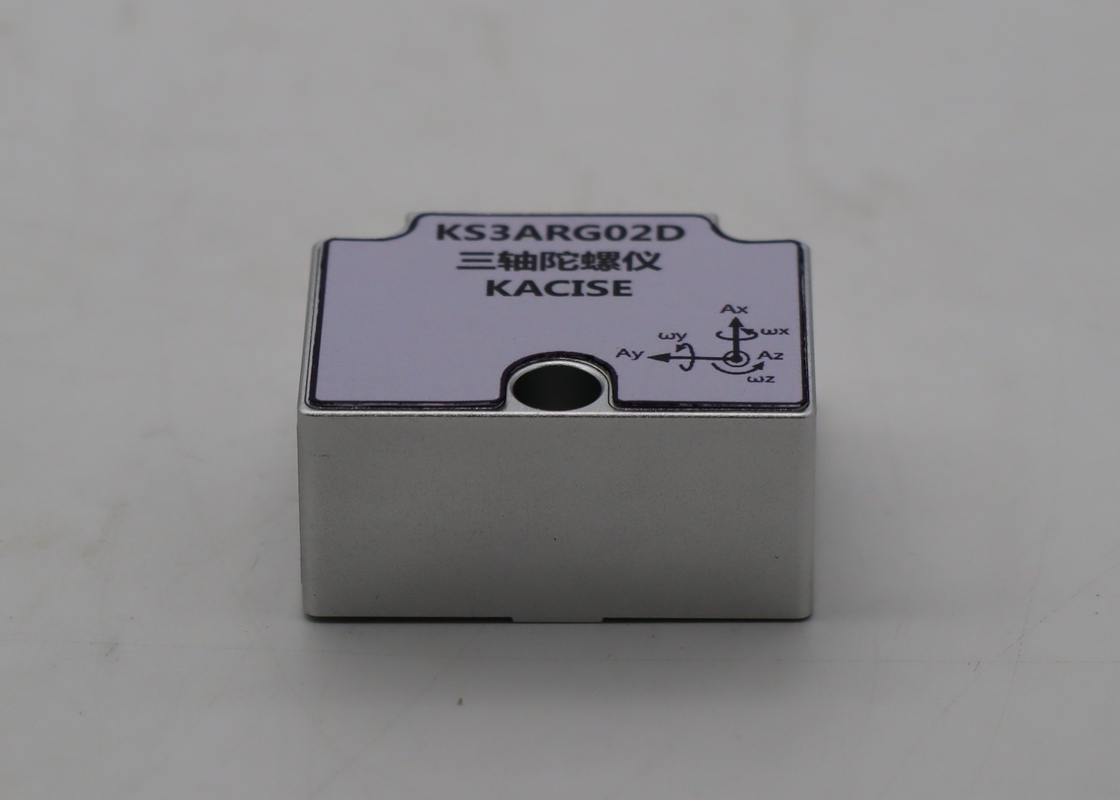

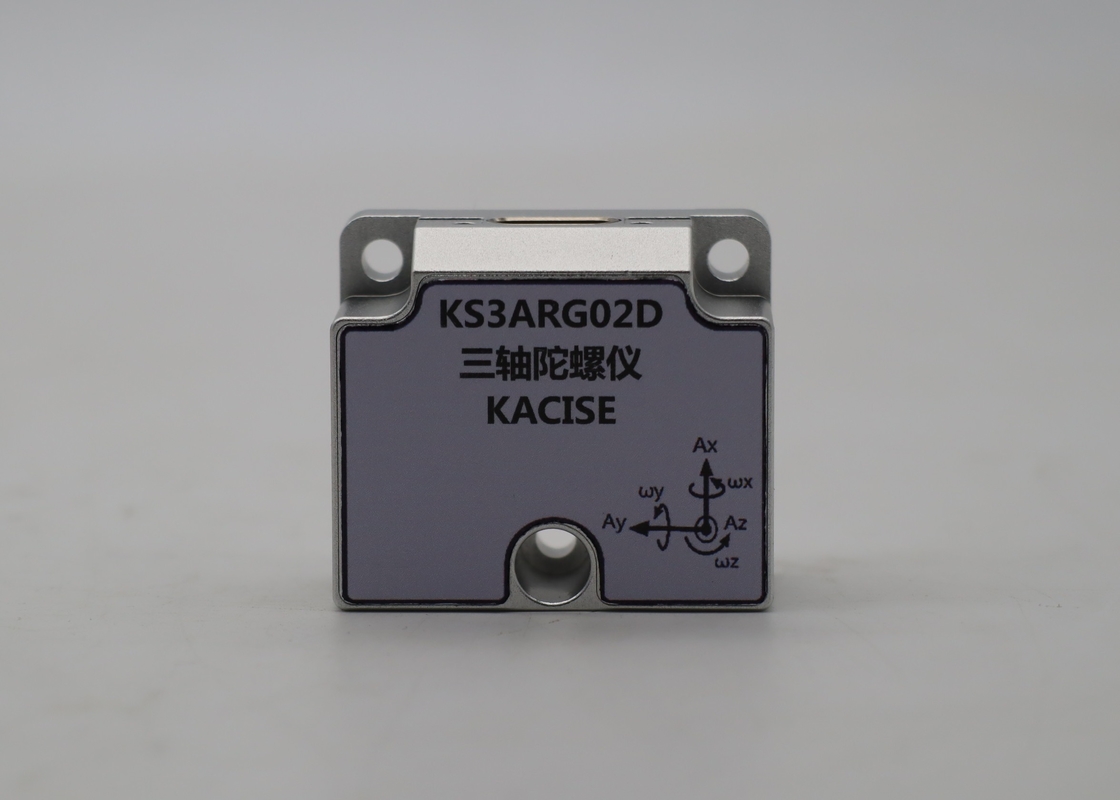

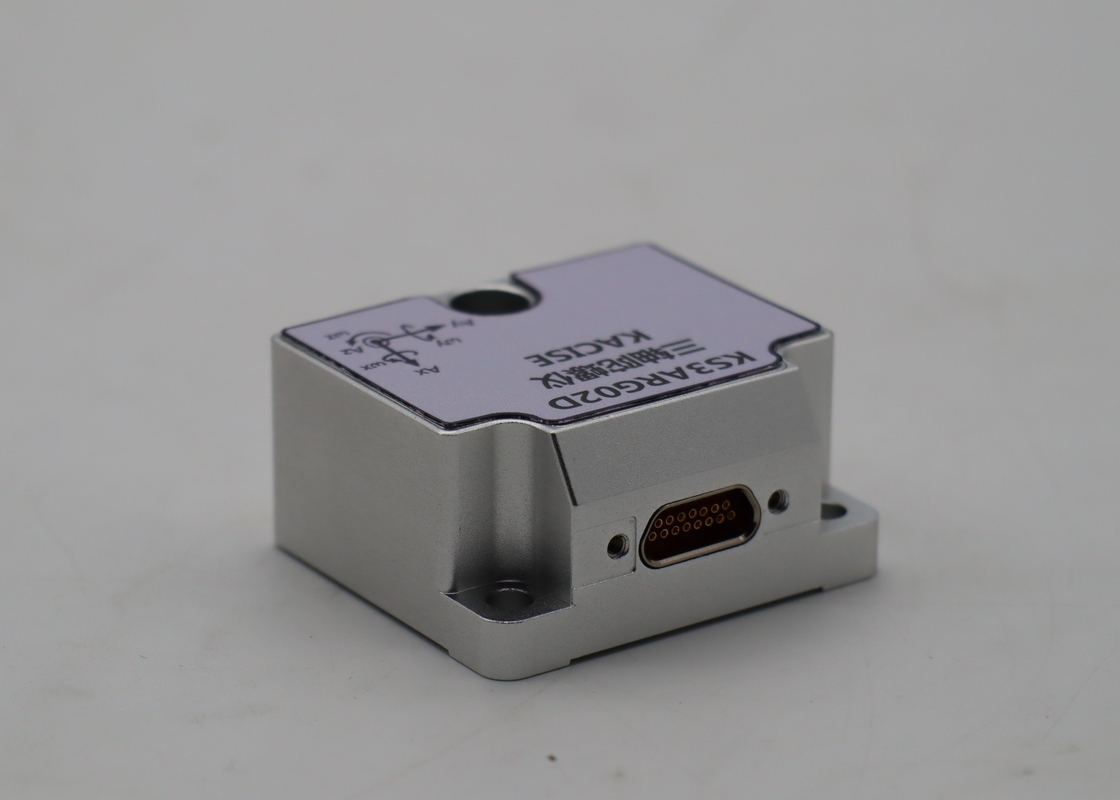

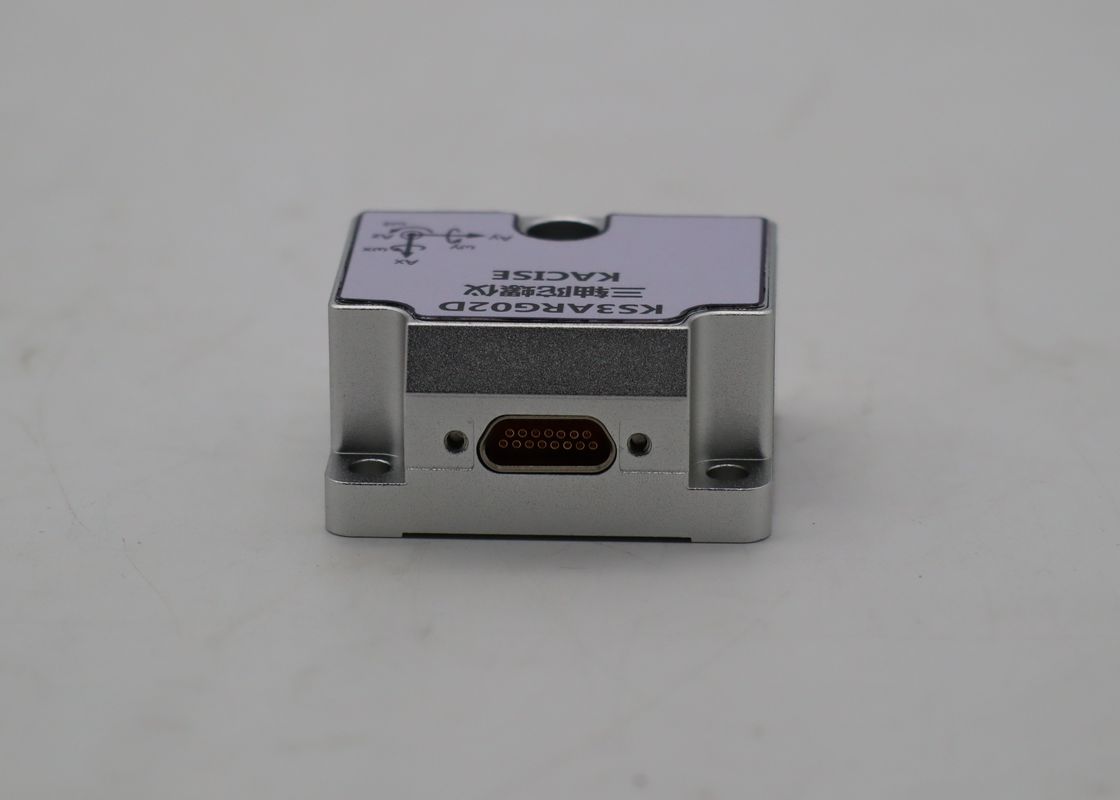

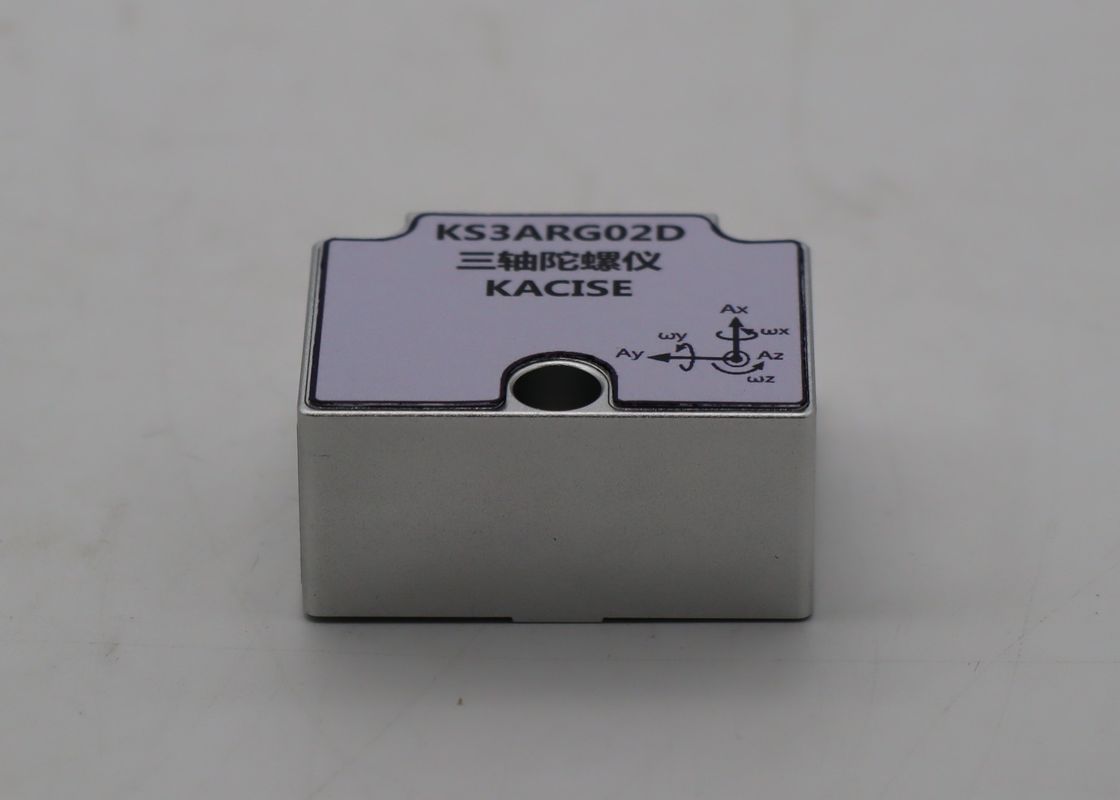

Product Description:
The KS3ARG-02D series represents a high-performance solid-state angular rate sensor (gyro) designed for accurate angular rate measurements. It integrates micromechanoelectronic system (MEMS) technology chips produced through the bipolar metal oxide semiconductor (BIMOS) production process, coupled with a spherical grid arrangement of current carrier welding technology. Notable features include high reliability, rugged packaging, a Self-Test function for in-machine detection (BIT), zero bias calibration, temperature drift compensation, wide measurement range, wide bandwidth, non-linear correction, and more. Its attributes encompass a wide operating temperature range, small size, light weight, and excellent resistance to impact acceleration.
Serving as an integral inertial measurement component, this product plays a crucial role in a myriad of technical applications. It is aptly employed in intelligent automobiles, geological exploration endeavors, robotics, missile guidance and control systems, aircraft stability control mechanisms, strapdown inertial navigation systems, antenna stabilization tasks, cameras, and other pertinent technical fields.
Features:
- Small size
- Light weight
- Wide bandwidth
- Wide measurement range
- Temperature drift compensation
- Bias calibration
- High impact acceleration resistance
Technical Parameters:
| Performance parameter |
KS3ARG-02D |
| gyro |
range
(deg/s)
|
±500(triaxial) |
| Zero-bias(deg/s) |
≤±0.1(In 500°/s) |
| Zero-bias stability(deg/h) |
≤0.5allan deviation |
| Zero-bias repeatability(deg/s) |
≤0.05 |
| nonlinearity(%FR) |
≤0.05 |
| Random walk(°/√h) |
0.15 |
| Mean time between failures(Kh MTBF) |
10 |
| Interface characteristic |
power(V) |
DC5 |
| power dissipation(W @5V DC) |
≤1 |
| electrical interface |
RS422 |
| data updating rate(can set) |
2000(Hz@460800) |
| operating environment |
operating temperature(°C) |
-40~+80 |
| storage temperature(°C) |
-55~+85 |
| Vibration(g @ 20~2000 Hz) |
6.06 |
| Shock(g , 0.1 ms, 1/2 Sine) |
5000 |
| physical property |
Size(mm) |
45×39×20 |
| Weight(g) |
≤60 |
Dimension figure
