Name: Optical Dissolved Oxygen Sensor / Water Quality Sensors For Fisheries And Aquaculture with accuracy 1%
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KFDO601
Availability: InStock

Dom > produkty > Czujnik jakości wody >

Optical Dissolved Oxygen Sensor / Water Quality Sensors For Fisheries And Aquaculture with accuracy 1%

Aquaculture Dissolved Oxygen Sensor

Optical Dissolved Oxygen Sensor

Water Quality Sensors 24VDC

Place of Origin:

Shaanxi, China

Nazwa handlowa:

Kacise

Orzecznictwo:

Model Number:

KFDO601

Skontaktuj się z nami

Poproś o wycenę

Optical Dissolved Oxygen Sensor / Water Quality Sensors For Fisheries And Aquaculture with accuracy 1%

Szczegóły produktu

principle:

Ultraviolet fluorescence method

Measuring range:

0~20mg/L

Accuracy:

Power supply:

DC 5~12V, current <50mA

Calibration:

two point calibration

Power suppluy:

12~24VDC ±10%

Port:

Xi'an or other

Podkreślić:

Aquaculture Dissolved Oxygen Sensor

Optical Dissolved Oxygen Sensor

Water Quality Sensors 24VDC

Warunki płatności i wysyłki

Minimum Order Quantity

1pcs

Cena

$100.00 - $1,000.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

500 Piece/Pieces per Month

ZAŁĄCZONE PRODUKTY

KCW102 Urządzenie do oczyszczania wody z falami elektromagnetycznymi o niskiej częstotliwości

Najlepszą cenę

KCW101 Częstotliwość - Modulowane urządzenia do oczyszczania wody fal elektromagnetycznych

Najlepszą cenę

KHM100 Automatyczny monitor jakości wody z ciężkich metali

Najlepszą cenę

KCW104 Wysoka częstotliwość wydajności - urządzenie do zamiatania

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

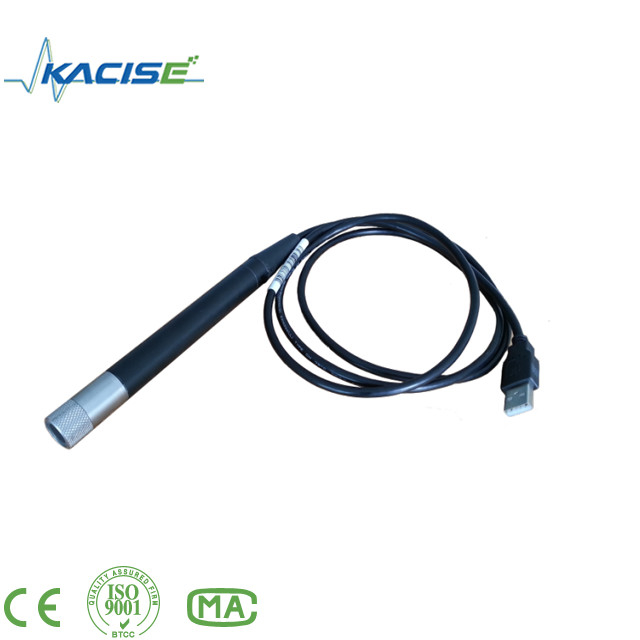

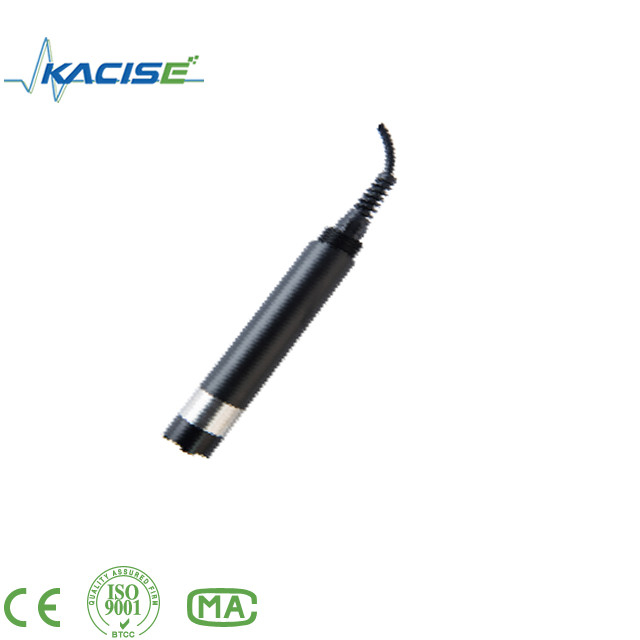

Optical Dissolved Oxygen sensor

1. Applications

The fluorescence dissolved oxygen sensor utilizes a cutting-edge generation of fluorescence lifetime technology. Kacise independently develops high-performance fluorescent materials. This remarkable sensor has several outstanding features. Firstly, there is no anaerobic consumption, nor are there any flow restrictions or the need for electricity. Secondly, the solution demands no maintenance and calibration, and it is not affected by hydrogen sulphide, offering excellent stability.

For instance, in long-term monitoring scenarios, its stable performance ensures accurate and reliable measurement results without the hassle of frequent maintenance and calibration.

It also comes with a built-in temperature sensor and automatic temperature compensation. This functionality allows for accurate measurements across different temperature conditions, enhancing its adaptability and measurement accuracy.

The RS485 output makes it suitable for networks without a controller. This simplifies the integration and connection process, providing greater convenience in various application scenarios.

2. Feature

Digital sensor, RS485 output, support MODBUS,
no membrane,
no electrolyte,
no interference,
no need for frequent calibration,
no oxygen,
no flow restriction,
built-in temperature sensor, automatic temperature compensation.

3.Technical Specifications

product	Online fluorescence dissolved oxygen sensor
principle	Ultraviolet fluorescence method
Measuring range	0~20mg/L
Response time	10 sec
accurate	1%
Protection level	IP68
Deepest depth	Underwater 60 meters	underwater 10 meters
temperature range	0 ~ 50℃
Output	Support RS-485, MODBUS protocol
Power supply	DC 5~12V, current <50mA
size	Φ26*177.5 mm
Probe cable length	10 m, customizable 5 m, 15 m and 30 m cable
Fluorescent cap life	1 year
Maximum working pressure	6bar
product material	POM or ss316

4.Company Information

Optical Dissolved Oxygen Sensor / Water Quality Sensors For Fisheries And Aquaculture with accuracy 1% 0

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
