100ppm Sulfur Hexafluoride Sensor SF6 Sensor Module High Efficiency

100ppm Sulfur Hexafluoride Sensor

100ppm SF6 Sensor Module

Sulfur Hexafluoride SF6 Sensor Module

Place of Origin:

shanxi xi'an

Nazwa handlowa:

Kacise

Model Number:

KSS525

Skontaktuj się z nami

Poproś o wycenę

100ppm Sulfur Hexafluoride Sensor SF6 Sensor Module High Efficiency

Szczegóły produktu

Storage Temperature:

-20-80℃

Operating Temperature:

-20-60℃

Work Pressure:

0.8-1.2 atm

Operating Humidity:

0-90%RH

Supply Voltage:

12V

Maximum operating Current:

120-150mA

Range (customizable):

100ppm

Measurement accuracy:

± 0.5ppm or ±2% true value is the greater ppm

T90 of Pump-suction:

Repeatability of 50%F.S.:

<+2%.

Life Span:

10 years

Podkreślić:

100ppm Sulfur Hexafluoride Sensor

100ppm SF6 Sensor Module

Sulfur Hexafluoride SF6 Sensor Module

Warunki płatności i wysyłki

Minimum Order Quantity

Packaging Details

each unit has indicidual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

ZAŁĄCZONE PRODUKTY

Komercyjny ultradźwiękowy licznik gazu KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Najlepszą cenę

Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Zasilanie Kompaktne wymiary 128.742.855.2mm

Najlepszą cenę

10.8V 16.5V System napięcia szerokiego czujnika tlenu KGD ZS 322 Gas Detector Sensor dla dokładnego pomiaru stosunku paliwa powietrza

Najlepszą cenę

Czujnik tlenu motocyklowego KGD - ZS - 323

Najlepszą cenę

Skontaktuj się z nami

86--17719566736

Skontaktuj się teraz

Opis produktu

KSS525 Infrared SF6 Gas Sensor Module

1. overview

Name: 100ppm Sulfur Hexafluoride Sensor SF6 Sensor Module High Efficiency
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSS525
Price: 72.00 USD
Availability: InStock

KSS525 is a gas sensor module using NDIR infrared absorption detection principle, which determines the concentration according to the absorption of SF6 gas at 10.6um. KSS525 adopts MEMS light source, optical cavity with special structure and dual-channel detector to realize spatial dual-optical path reference compensation, and microprocessor for signal acquisition, processing and output. KSS525 has good selectivity, high sensitivity, no oxygen dependence, long life, low power consumption; Built-in temperature sensor for temperature compensation; At the same time, it has UART, 485 output and analog voltage output, which is convenient for customers to various applications.

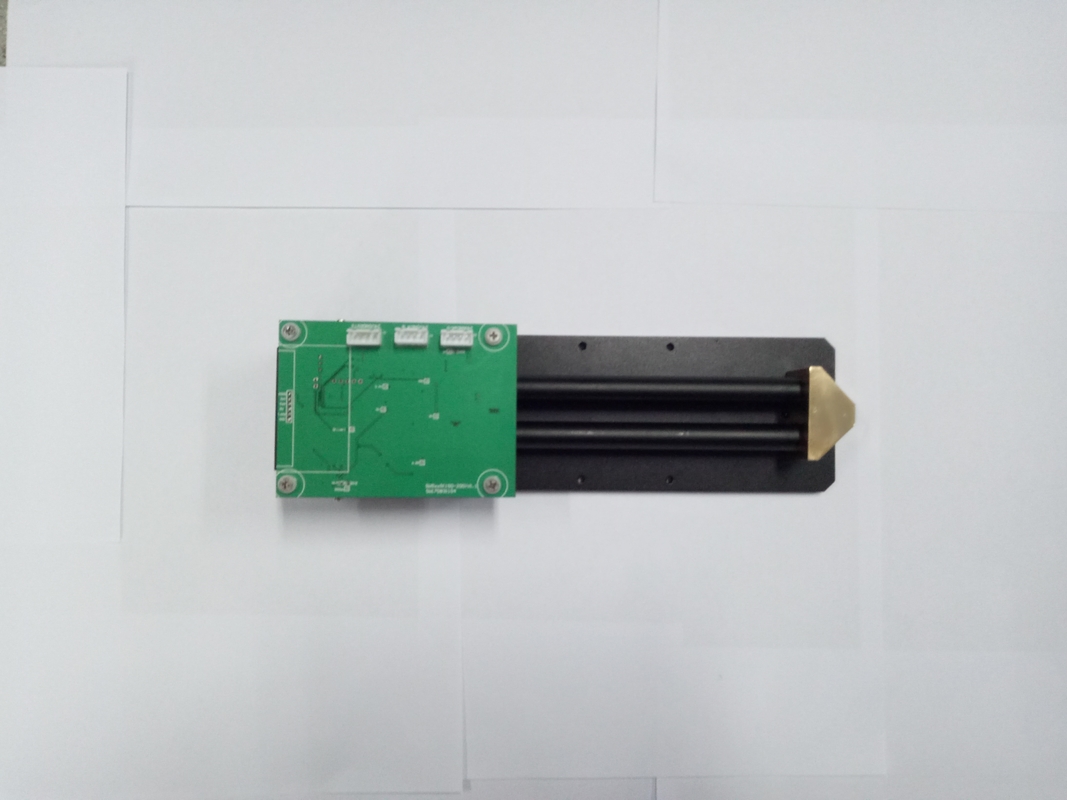

KSS525 physical image

2. Technical parameters

parameter		symbol	minimum	Typical values	maximum	unit
Storage Temperature		T_stg	-20	-	80	°C
Operating Temperature		T_A	-20		60	°C
Operating Humidity		H_A	0		90	% RH
Work Pressure		P_A	0.8		1.2	atm
Supply Voltage		V_s	9	12	24	V
Maximum operating current		I_avg	100	120	150	mA
Range (customizable)				100		ppm
Measurement accuracy		Acurracy		0.5ppm or ±2% true value is the greater		%vol
T90	Pump suction			5		second
Repeatability	50%F.S.			<+2%.
Life Span				10		year

3. Structural dimension drawing

100ppm Sulfur Hexafluoride Sensor SF6 Sensor Module High Efficiency 1

4.Installation instructions

The sensor is mounted with a positioning hole spacing of 64 mm and an aperture of 3 mm

The wiring socket spacing is 2.54 m m

5.Matters that should be paid attention to in maintenance

The sensor should be calibrated regularly, it is recommended that it be no more than 3 months, and calibration is not required if automatic calibration is turned on for long-term operation

Do not use the sensor for a long time in an environment with a high density of dust

Please use the sensor within the range of the sensor's power supply

6. Ordering instructions

In order to be able to purchase the specific specifications required, please provide the following information

1) Sensor name

2) Measure the gas

3) Sensor range

For example, SW521R200, SF6, 0-100 ppm

7. Release Notes

In order to facilitate the better use of this product, V1.2 updates the calculation method of returning concentration value in the 4.3.2 MODBUS RTU protocol and the command description of reading concentration value after changing the address.

8. Ordering Information

Order information sheet
KSS525	KSS525 infrared SF6 gas sensor module
	xxxx	The sensor measures the range of CO2 concentration in ppm, with a minimum value of 2000 and a maximum value of 50000 ppm.
	2000	Range 200ppm (default).
	10000	Range 10000ppm
	50000	Range 50000ppm
		encode	The reaction speed is divided into two types: fast and slow
		S	Slow (default).
		Q	fast
			encode	Baud rate selection, support commonly used baud rate 2400 9600 19200 38400bps, 8 bits of data, 1 bit of stop bit, no check bit: Confirm special needs before ordering.
			Custom	Confirm the baud rate before ordering
			2400	2400bps baud rate
			9600	9600bps baud rate
			19200	19200bps baud rate
			38400	38400bps baud rate (default)
				encode	Serial port protocol
				Modbus-RTU	Standard Modbus-RTU protocol (default).
				Modbus-ASCII	Standard Modbus-ASCII protocol
				Modbus-Self	Modbus private protocol
KSS525	-2000	-S	-38400	-Modbus-RTU

Contact Details

URL: www.kacise.com

Tel: +86-29-17719566736

Email: sales@kacise.com

Address: Tangyan South Road, Xi'an City, Shaanxi Province, China

Appendix

Shorthand	Full name
VOL	1% VOL refers to 1% of the volume of a particular gas in air.
PPM	1PPM means that the volume of a specific gas in the air accounts for one millionth.
O2	Oxygen molecules
LCD	LCD display
RS485	Asynchronous serial port 485
DC	direct current
AC	Communication
PVC	polyvinyl chloride
