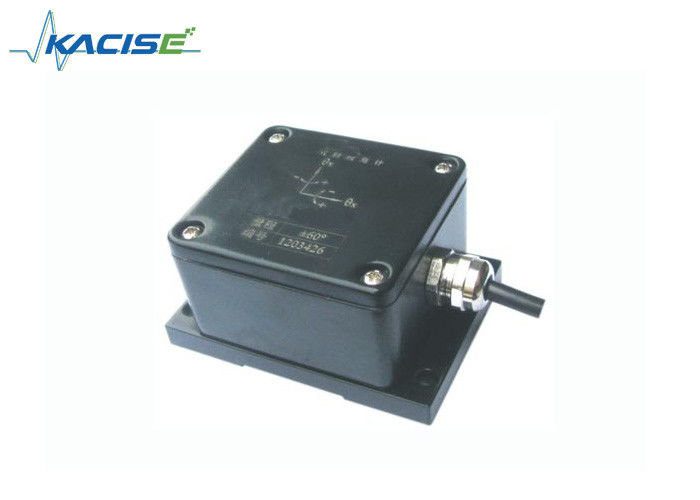

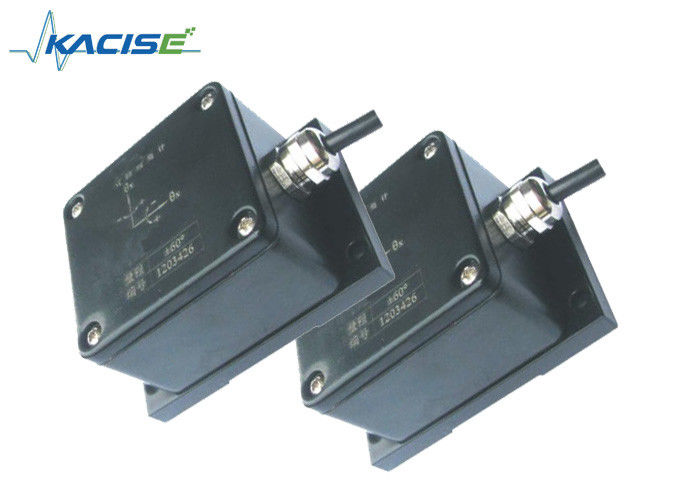

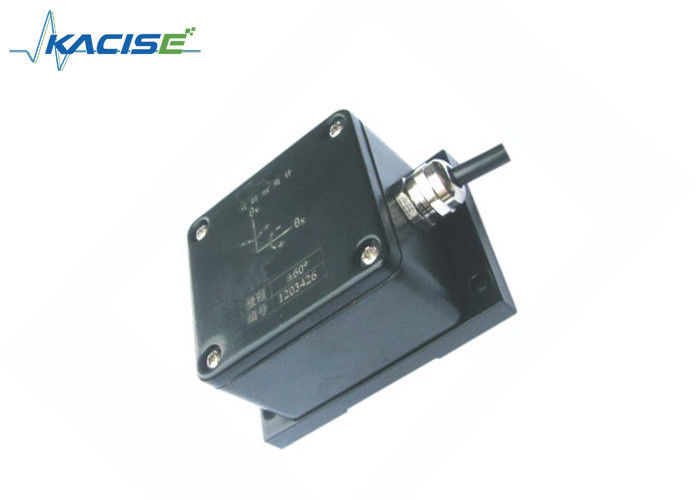

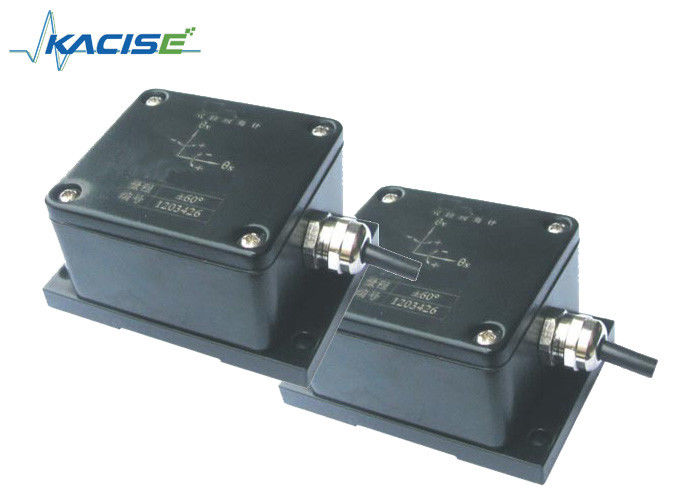

Resolution<0.1° AHRS Mems Gyroscope Sensor , 2 Axis Gyroscope Analog Voltage Output RS485 communication

AHRS MEMS Inclinometer Sensor Gyroscope 2 Axis Analog Voltage Output Angle 232 Tilt Switch Voltage Transducer

Introduction

The GX-ROB200 Series MEMS inclinometer integrates a Microcontroller Unit (MCU) control system. The sensor undergoes a thorough calibration process across the entire temperature range, encompassing temperature compensation, zero calibration, scale factor calibration, and nonlinearity correction. These calibration steps are meticulously carried out to improve the accuracy of the inclinometer's measurements.

Features

• Wide range of power supply voltage: DC8~30V
• Wide range of working temperature: -45℃~+85℃
• Resolution lower than 0.1°
• Long-term stability lower than 0.3°
• IP67 protection garde
• High performance of anti-vibration>10000g
• ±30°, ±90°, ±180°, 0°~360°(The vertical plane rotation is available)
• Output: 0~5V, 4~20mA, RS232, RS485
• Output protocol: The RS485/RS232 protocol can be customized according to customer’s requirements and there are Modbus-RTU for selection.

The main technical performance indicators

Dimension (unit: mm)

Ordering information

Application

1). Angle measuring instruments,

2). Level measurement platform,

3).Platform level control,

4). Measuring instruments and heavy mechanical stability,

5). Acceleration and motion measurement,

6). Automotive control, inertial navigation,

7). Seismic monitoring and other measurement systems

Company strength

1.Through the ISO9001: 2008 quality system certification, access to a number of patent certificates and software copyrights

2.And Xiamen University, Chinese Academy of Sciences Institute of Acoustics, 715, Ha Engineering underwater acoustic college and many other colleges and universities,Scientific research unit cooperation

3.Products in the Northwest Industrial Group, Hainan Airlines Co., Ltd., are widely used

4.China's largest sensor, flowmeter production base
